DEAN MILLIVOLT GAS FRYERS
CHAPTER 2: PARTS LIST
2-4

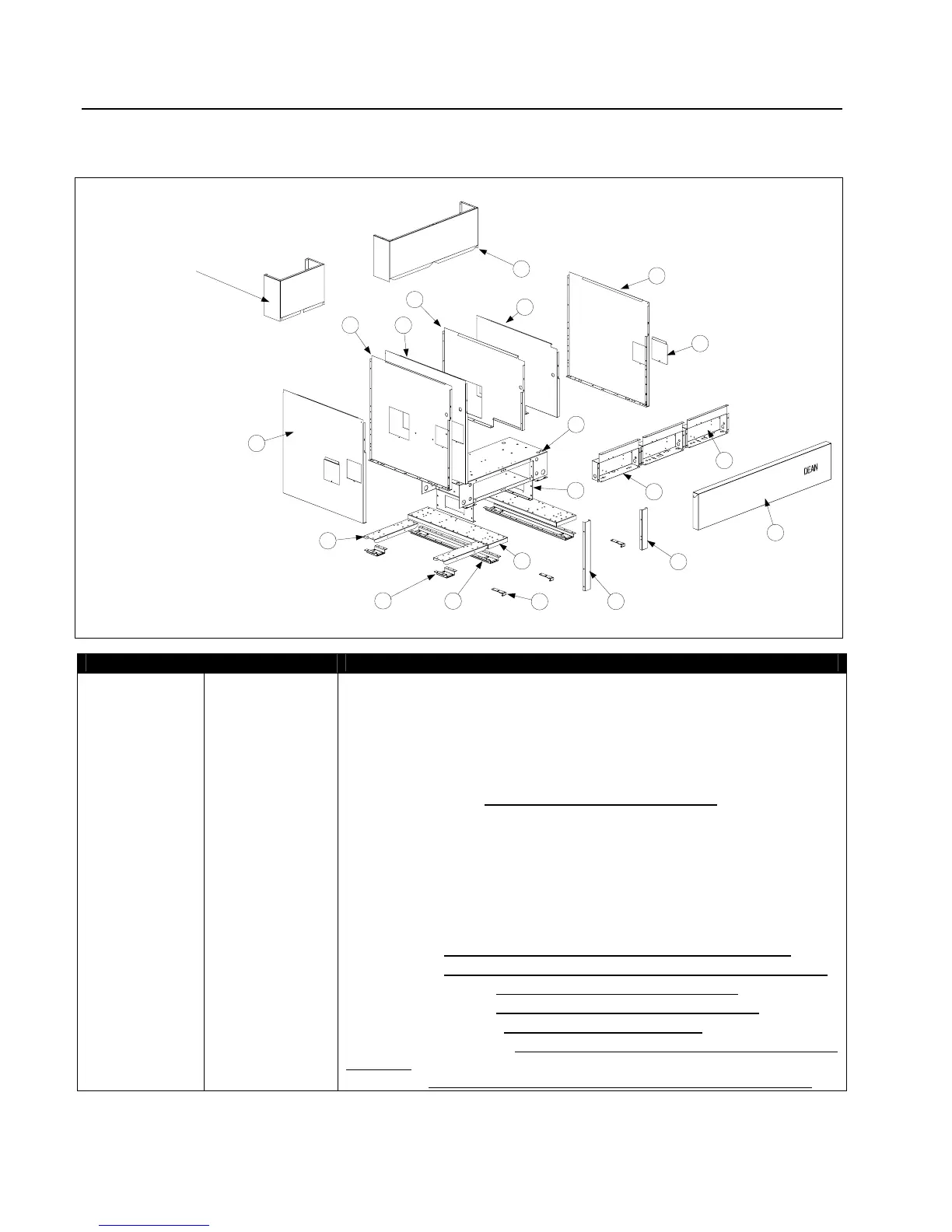

2.2 Cabinetry Components, Multi-Battery Frying Systems
1
2
3
4
5
67
8
9
10
11
12
13
14
15
16
19
18
17
20
See Section 2.1 for single
fryer components.
ITEM PART # COMPONENT
1 211-3261 Side, Left- S/S- (Use When SM20G Is On End)
* 211-2787 Side, Left- S/S- (Use When SM50G Is On End)
* 201-3369 Side, Left- Painted (Use When SM50G is On End)
2 212-3261 Side, Right- S/S- (Use When SM20G Is On End)
* 212-2787 Side, Right- S/S- (Use When SM50G Is On End)
* 202-3369 Side, Right- Painted (Use When SM50G is On End)
3 210-2804 Duct, Door Access- All SM Series Multi-Battery Fryers
4 202-2799 Panel, Inner- SUFF Base-Right- SM50G
5 201-2799 Panel, Inner- SUFF Base-Left- SM50G
6 202-3268 Panel, Inner- Right- SM20G To SM50G
7 201-3268 Panel, Inner- Left- SM20G To SM50G
8 200-1148 Base Channel, Front & Rear- SM220G, SM50G (See Section 2.1 For
Additional Single Fryer Base Channel Components)
* 200-3154 Channel, Double- Front & Rear- SM80G Systems (4-Battery)
9 823-3248 Support, Leg- All SM 60/80 Series Multi-Battery Fryers With UFF
10 823-3539 Support, Leg- All SM 20/50 & 50 Series Multi-Battery Fryers With UFF
11 200-2783 Channel, Filter Base- All SM 20/50 Series UFF-Equipped
* 200-1198 Channel, Filter Base- All SM60G-80G Series UFF-Equipped
12 200-1675 Bracket, Lower Hinge- All SM Series UFF-Equipped
13 200-1393 Channel, Lower Joiner- All SM 20/50 & 50 Series Multi-Battery Fryers
With UFF
14 200-2308 Post, Door- All SM 20/50 & 50 Series Multi-Battery Fryers With UFF
* Not Illustrated
