Dean Super Runner Series - Oil Return Manifold Components

DEAN MILLIVOLT GAS FRYERS
CHAPTER 2: PARTS LIST
2-20
2.6 Oil Return Manifold Components
2.6.1 Oil Return Manifold Components; Fryers with 1½” Drains*
*Typical components illustrated below. Components will vary according to system.
1
2
3
4
5
6
11
8
7
9
10
12
13
14
15
16
19
17
6
18 5

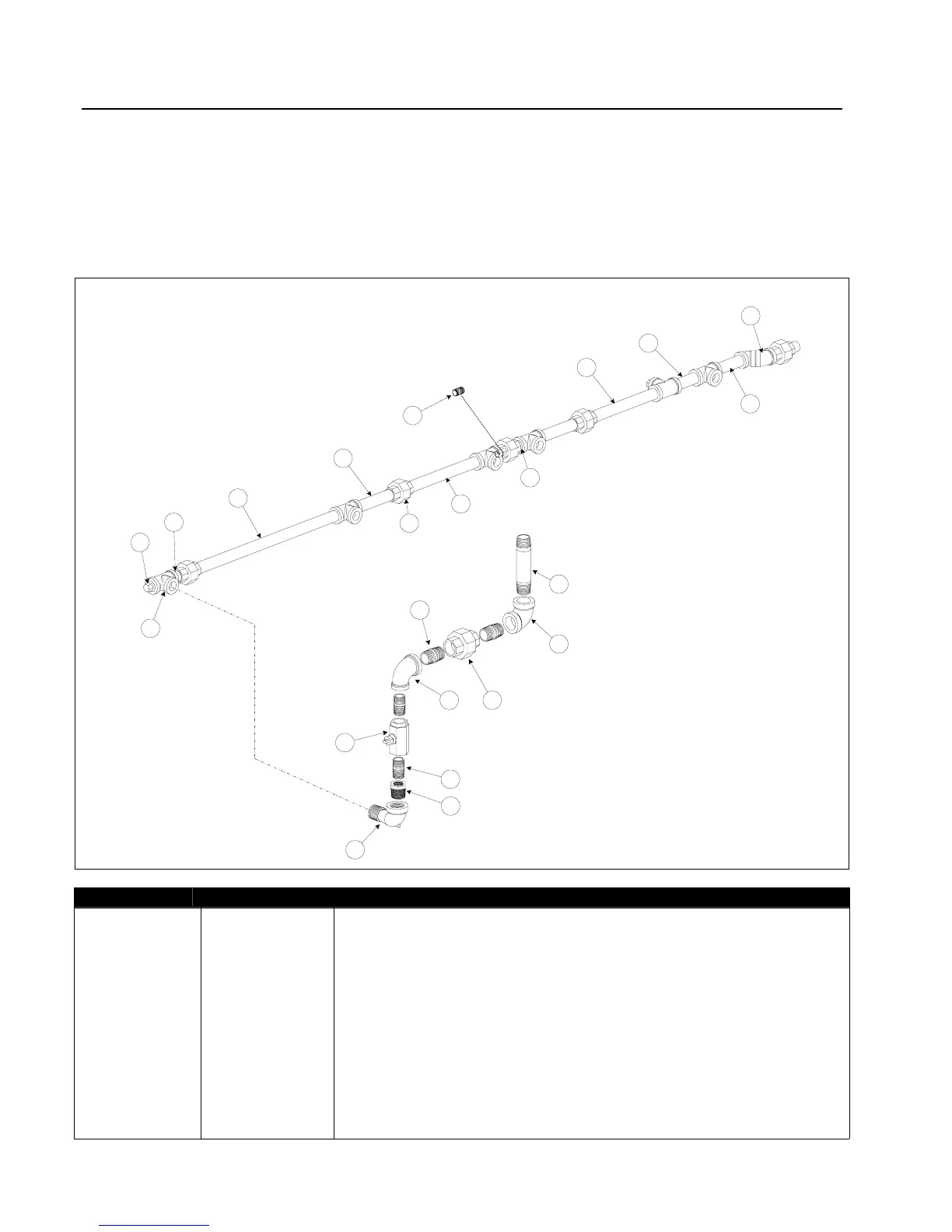

SM460G Oil Return
(Typical)
2
ITEM PART # COMPONENT
1 813-0003 Tee, ½” x ½” x ½" BM
2 813-0022 Nipple, ½" x Close NPT BM
3 813-0087 Nipple, ½” x 1-½" NPT BM
4 813-0156 Plug, ½" NPT Hex Head BM
5 813-0173 Union, ½" NPT BM
6 813-0247 Nipple, ½” x 3-½" NPT BM
7 813-0298 Nipple, ½” x 2" NPT BM
8 813-0345 Elbow, ½"- 45°
9 813-0368 Nipple, ½” x 16" NPT BM
10 813-0646 Nipple, ½” x 5" NPT BM
11 813-0654 Nipple, ½” x 4" NPT BM
12 813-0672 Nipple, ½” x 8" NPT BM
