DEAN MILLIVOLT GAS FRYERS
CHAPTER 2: PARTS LIST
2-22

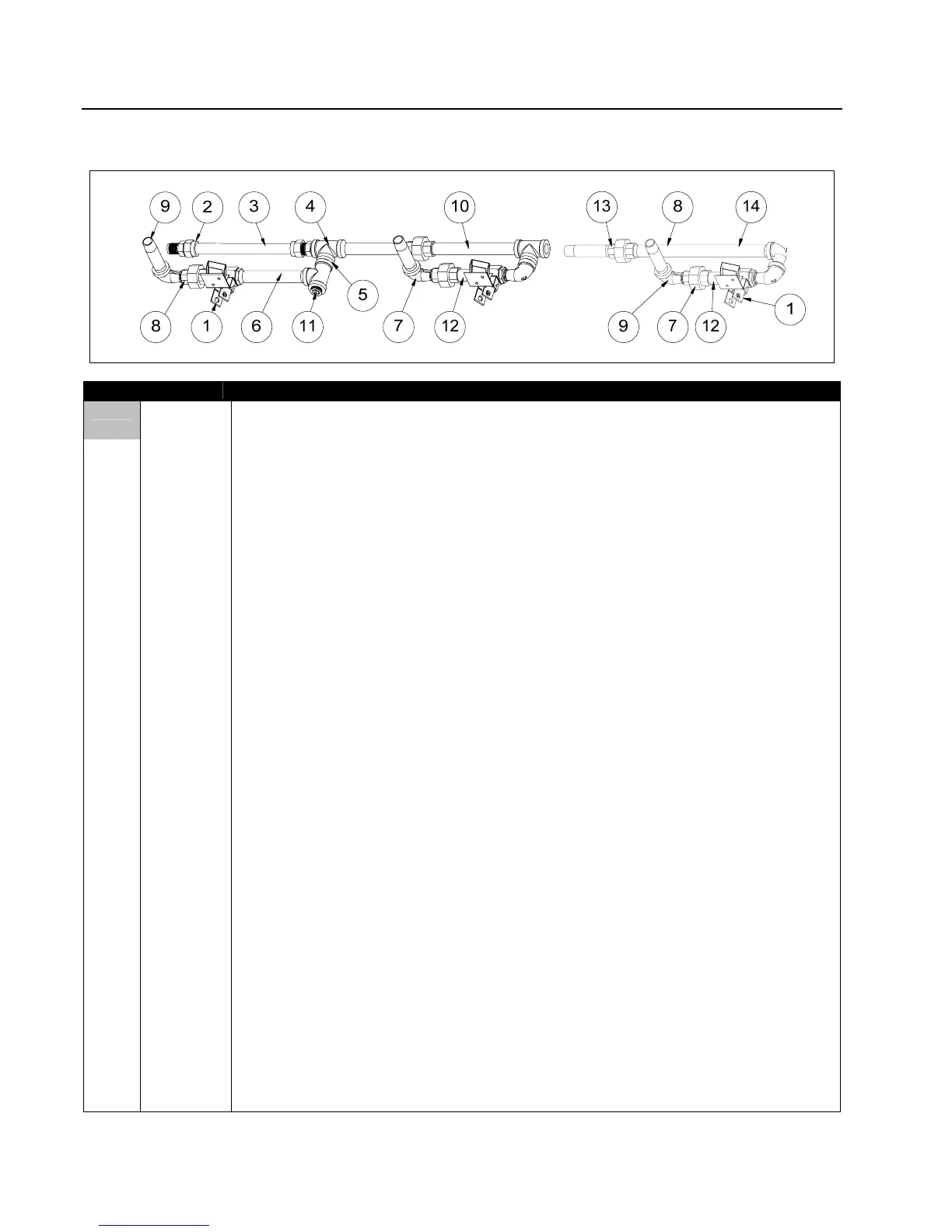

2.6.2 Oil Return Manifold Components; Fryers with 3” Drains
ITEM PART # COMPONENT
106-4100 Oil Return Assembly – Middle
106-4101 Oil Return Assembly – End
1 106-4006 Valve Assembly, ½” Oil Return (see Page 2-25)
* 106-3997 Valve Assembly (use with wand)
* 106-5516 Valve Assembly, 3-way Oil Return
2 810-1668 Adapter, Male ⅝” OD x ½”
3 810-2320 Flexline, ⅝” x 9.00” Long
4 813-0003 Tee, ½” x ½” x ½” BM
5 813-0022 Nipple, ½” x Close NPT BM
6 813-0096 Nipple, ½” x 6.00” NPT BM
7 813-0165 Elbow, Street ½” x ½” NPT 90º BM
8 813-0173 Union, ½” NPT
9 813-0247 Nipple, ½” x 3.50” NPT BM
10 813-0362 Nipple, ½” NPT x 7.50” BM
11 813-0463 Plug, ½” Counter Sink
12 813-0661 Nipple, ½” x 2.25” NPT BM
13 813-0654 Nipple, ½” x 4.00” NPT BM
14 813-0597 Nipple, ½” x 11.50” NPT BM
* 810-2125 Ball Valve, ⅜” Drain
* 813-0006 Bushing, ½” to ⅜” NPT BM Hex Reducing
* 813-0062 Elbow, ½” 90º BM
* 810-1067 Flexline, 8.50” Oil Return
* 813-0087 Nipple, ½” x 1.50” NPT BM
* 813-0460 Nipple, ½” x 3.00” NPT BM
* 813-0625 Nipple, ⅜” NPT x CL Black CLS
* 813-0672 Nipple, ½” x 8.00” NPT BM
* 813-0607 Nipple, ½” x 23.50” NPT BM
* 813-0099 Nipple, ½” x 7.00” NPT BM
* 813-0845 Nipple, ½” x 29.75” NPT BM
* 813-0646 Nipple, ½” x 5.00” NPT BM
* 813-0373 Nipple, ½” x 11.00” NPT BM
* 813-0298 Nipple, ½” x 2.00” NPT BM
* 813-0098 Nipple, ½” x 6.50” NPT BM
* 813-0742 Nipple, ½” x 5.50” NPT BM
* 813-0515 Nipple, ½” x 12.00” NPT BM
* 813-0265 Nipple, ½” x 2.50” NPT BM
* 813-0093 Nipple, ½” x 4.00” NPT BM
* Not Illustrated
