DEC PTS 50 - Filter Assembly (Option with 3 O-Rings and Groove for Triclamp Version)

MAN-PTS-GB, Revision 9, BSC, 15-FEB-2017 35/46

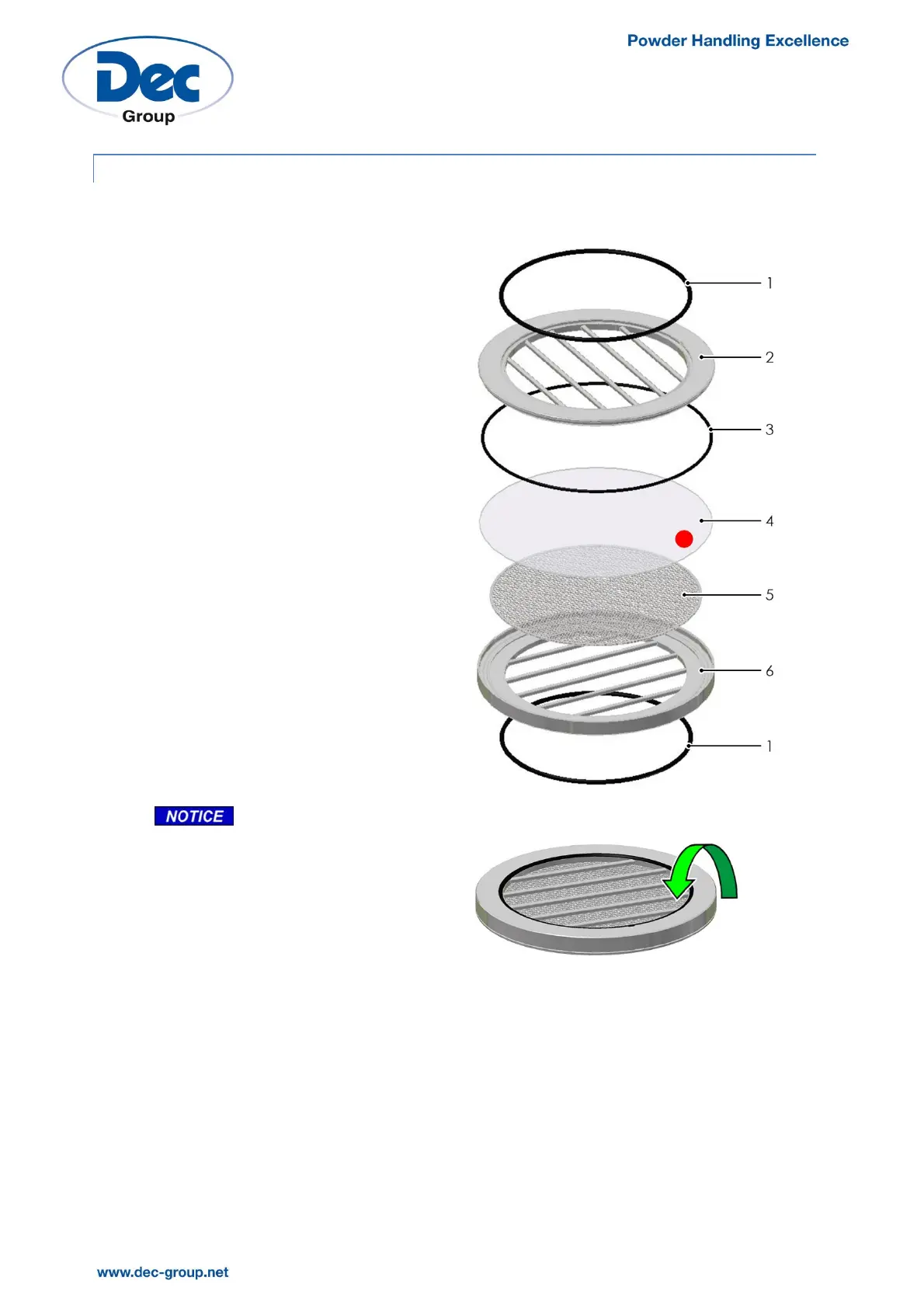

7.5.3 OPTION WITH 3 O-RINGS AND GROOVE FOR TRICLAMP VERSION
 Place the grid (5) in the housing (6).
 Place the filter membrane (4) with the
red dot above the grid (5).
 Place the O-Ring (3) with the cover (2)
on the filter membrane (4).
 The cover (2) must be positioned, so
that the drill bars of the covers and the
drill bars of the housings form a right
angle.
 Press the cover (2) into the housing (6)
until the cover rests evenly on the
housing.
 Positioning the seals (1) on both sides of
the filter.
 Risk of damage to
components! The red point on the filter
membrane must, in installed condition,
face the PTS body. Turn mounted filters
180 degrees, so that the red dot is
facing down.
 Mount filter in this position on the PTS
body.
