6.2 Installation OMD-24 EV

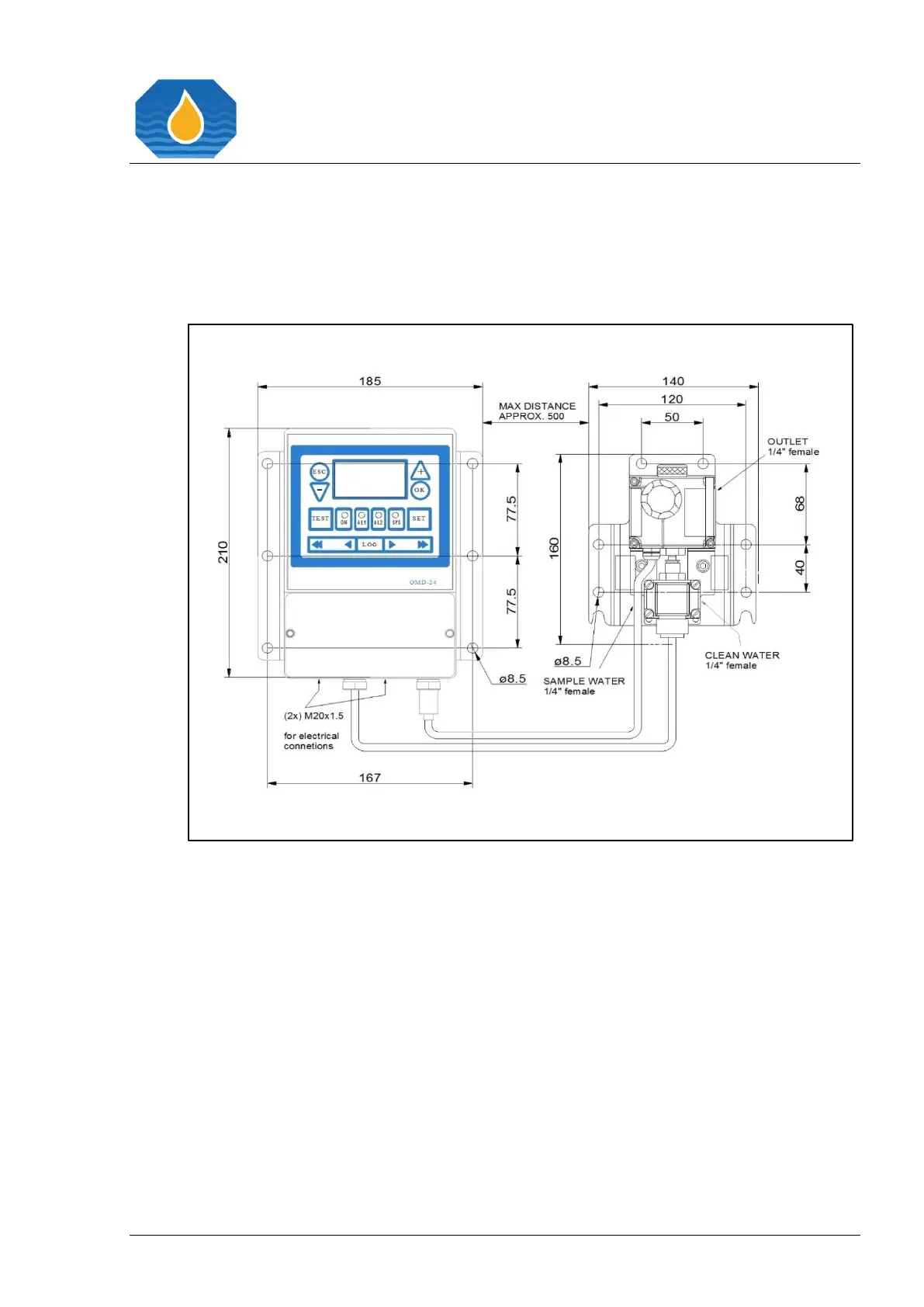

Please refer to the following drawing for mounting dimensions.
The Connector on top of the valve must not be removed under any circumstances, as that
requires the breaking of the seal.
Figure 8. Installation OMD-24 EV
