Page: 28
6.4 Installation OMD-24 A
Computer Unit and Measuring Cell assembly should be mounted close to each other.
Please refer to the following drawing for mounting dimensions.

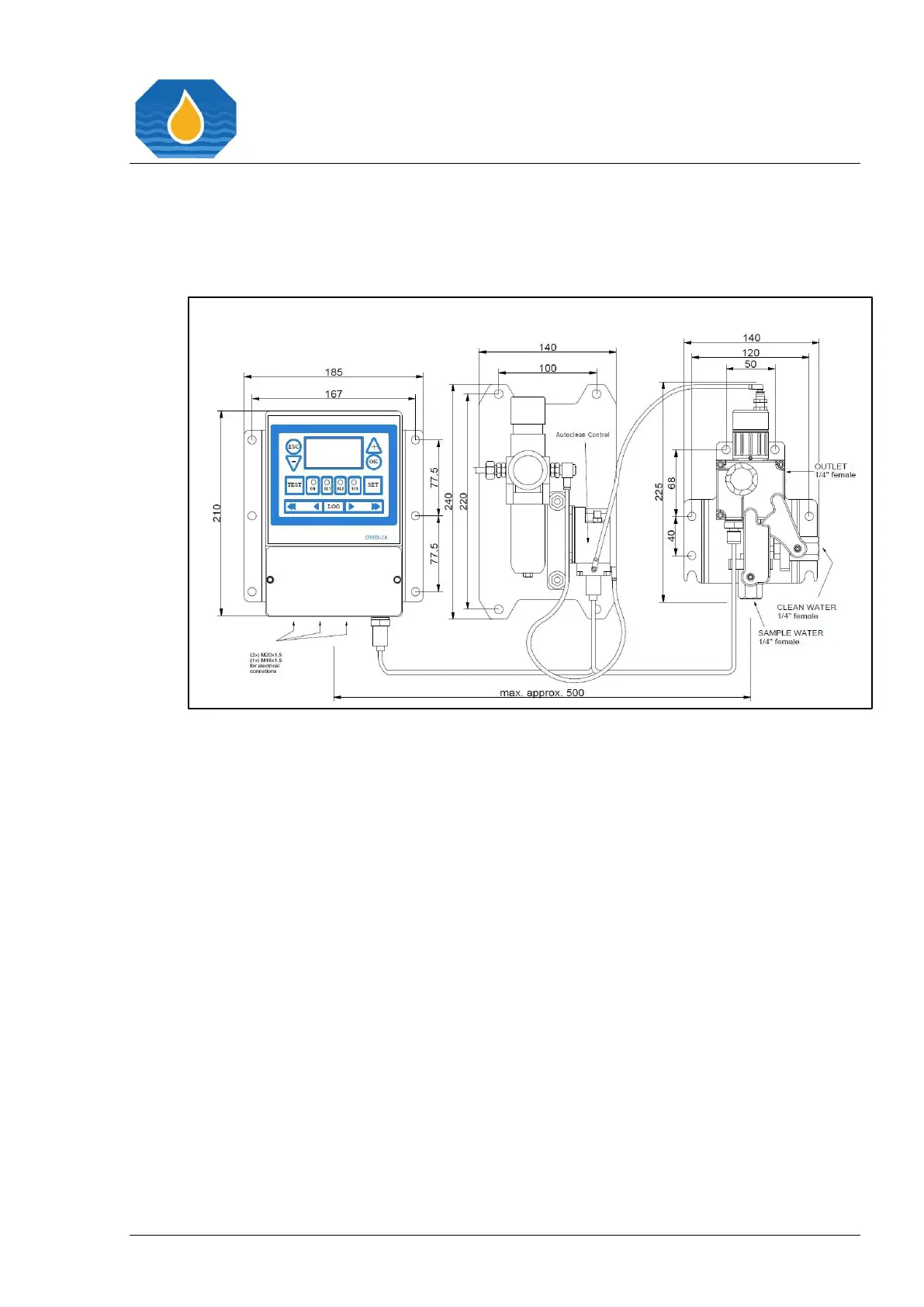

Figure 10. Installation OMD-24 A
Pipe connections are prepared for 6 mm OD stainless steel or coper pipes. Adapter fittings
for other pipe diameters are available upon request. Working space for maintenance and
operation is recommended in front of and above the instrument.
