7.3 Piping OMD-24 EVA
Connect the Sample line to the left side input of the OMD-24 EVA. Connect the clean
water line to the right-hand side input of the valve. Both inputs have 1/4” female threads.
It Is recommended to employ 6 mm, 10 mm copper or stainless-steel pipe. If it is possible,
install a manual valve into the clean water line next to the OMD-24 EVA. For Air Regulation
connect the air pipe to the Unit and the Measuring Cell. The air supply should be of 4 to
6 bar.

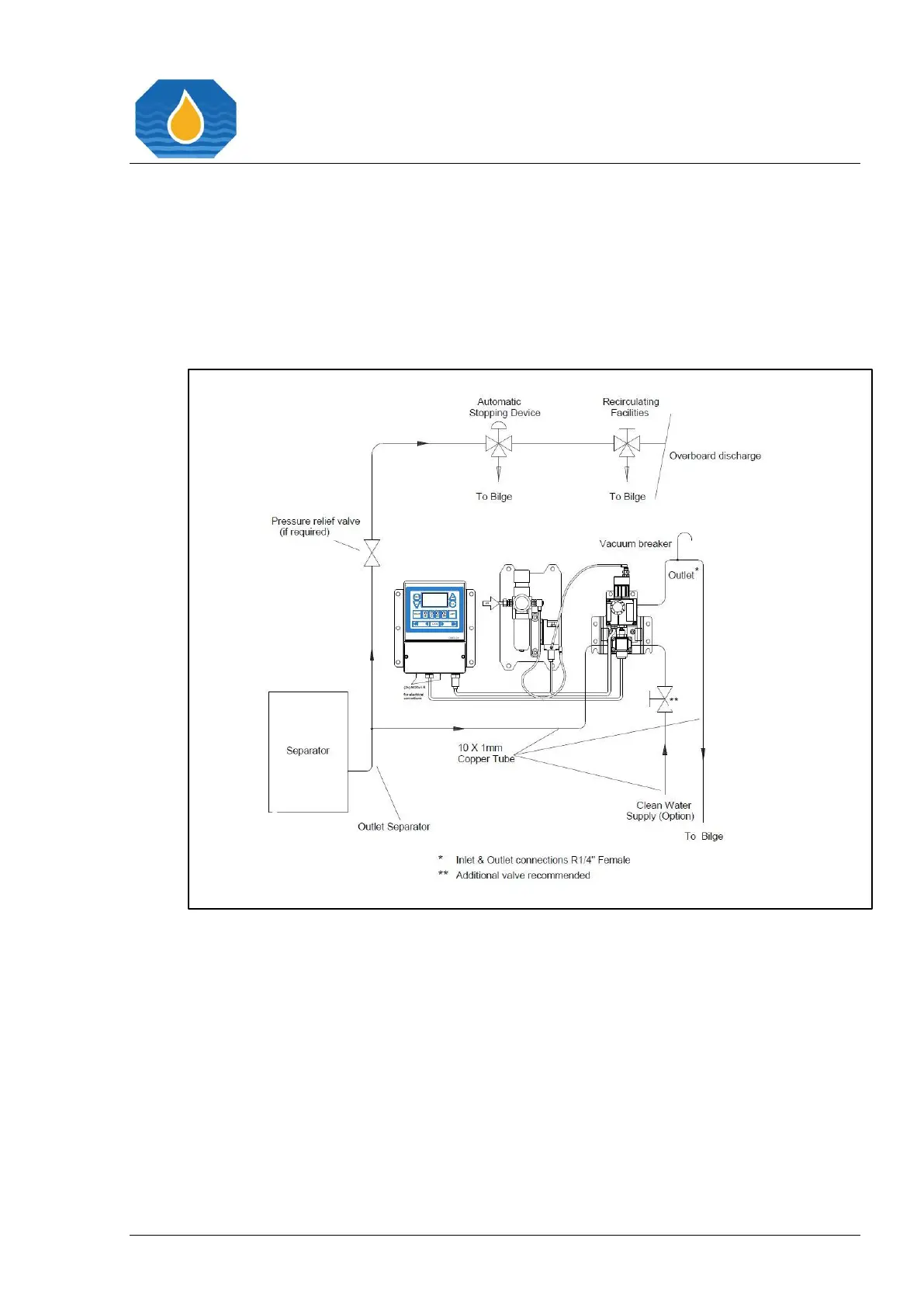

Figure 13. Piping OMD-24 EVA
