Page: 36

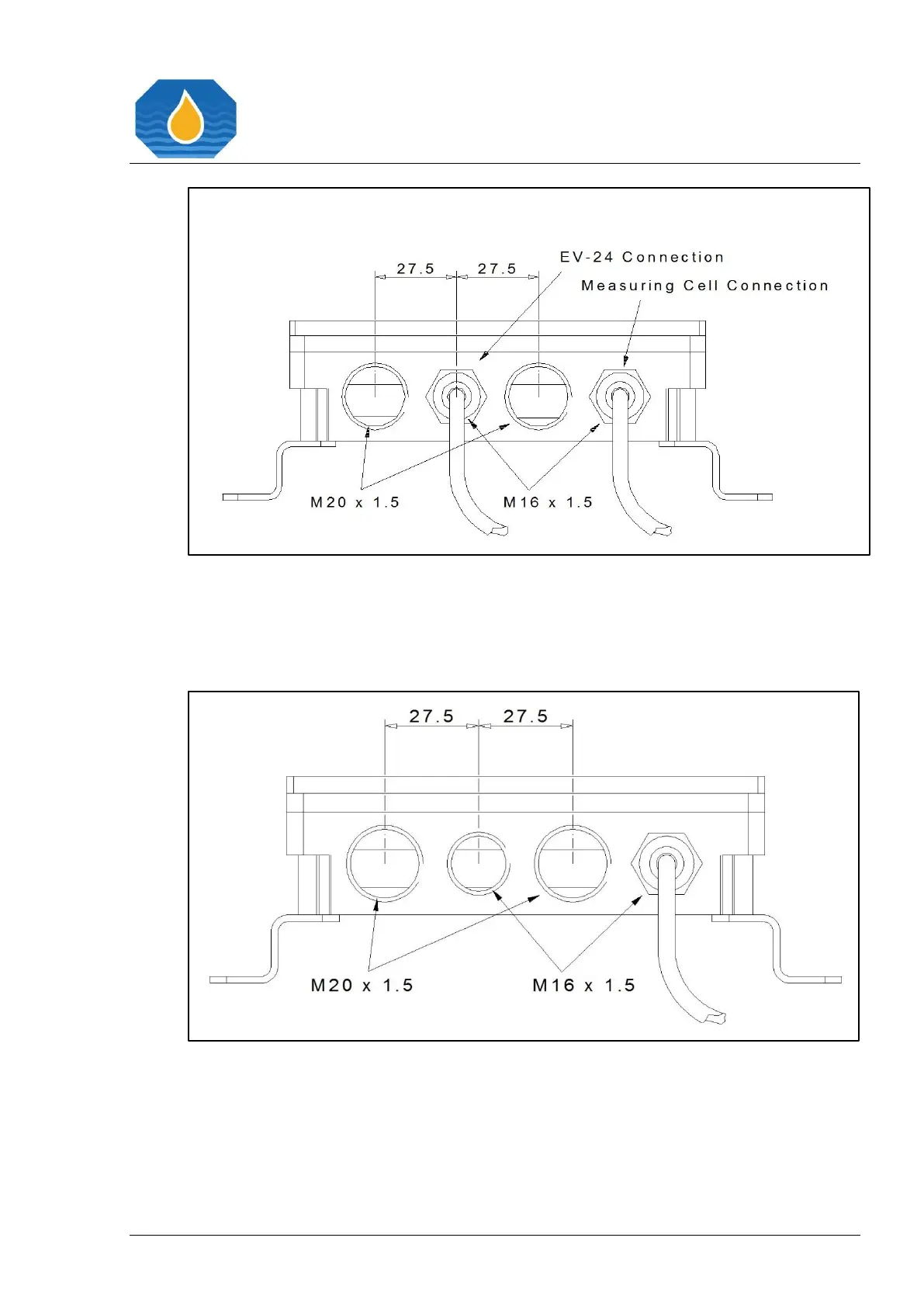

Figure 16. Bottom View: OMD-24 EVA
The OMD-24 EVA is in tandem with the Automatic Cell Cleaning Device. The Automatic
Cell Cleaning Device is connected with the Measuring Cell with another cable.
Figure 17. Bottom View: OMD-24 A
The OMD-24 A is connected with a y-cable to the Measuring Cell and the Flow Sensor.
