Dectron, Inc. March 2012
Owners Manual
DSH/DSV/RSH/DBH/RBH Series Dehumidifier
Set Optional DryCooler Flow T.A.B.
Data subject to change without notice.
201
DECTRON
AAA
15
2
35
45
ZZZ
Units with DryCooler-Cooled Air-Conditioning Only
Request and refer to Appendix M1 DryCooler
.
Locate the field-wiring terminal strip in the unit electrical enclosure.
Refer to the unit wiring diagram. Determine the wire numbers for the DryCooler output, e.g. 51 and 52. Some
units may have a second pair of wires, e.g. 53 and 54.

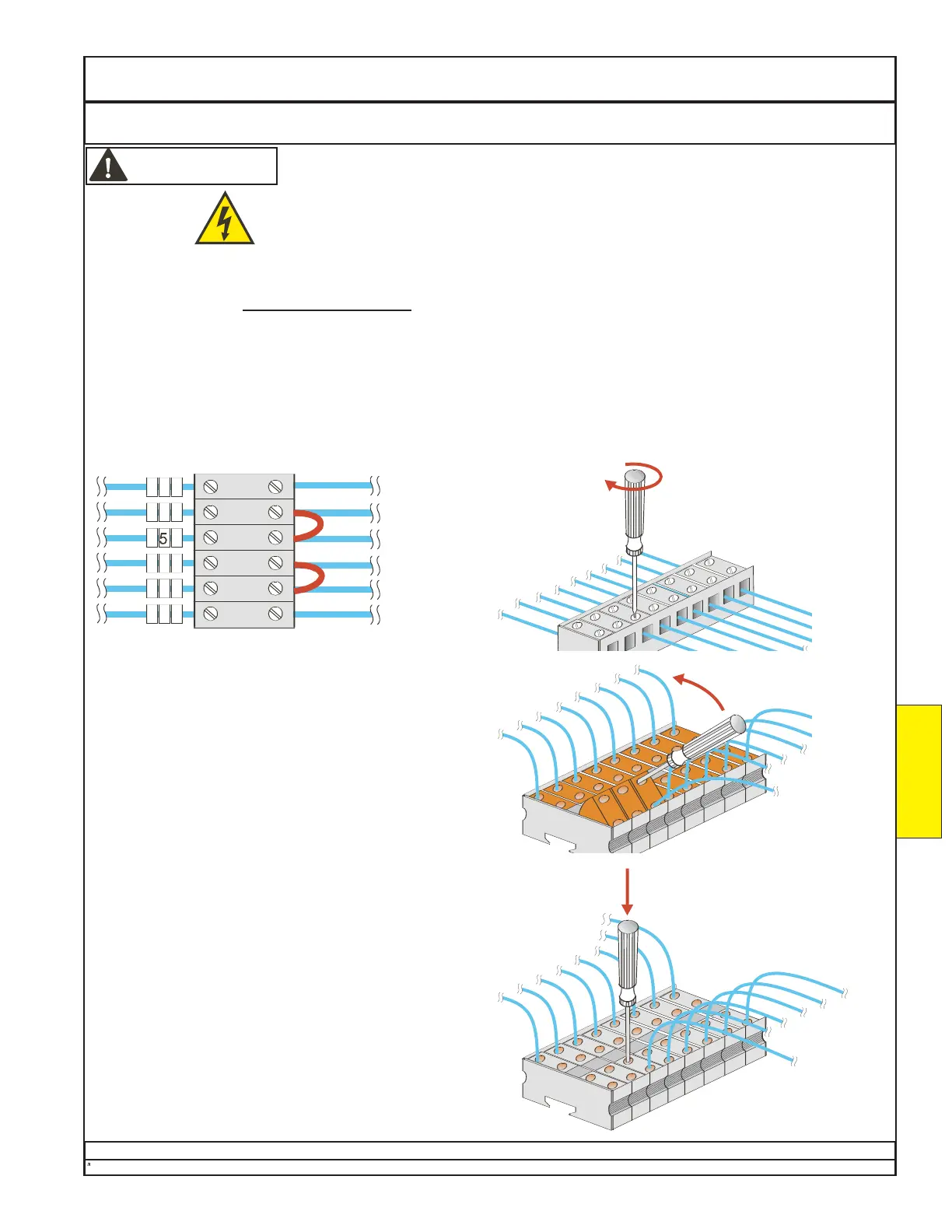

On the field-wiring terminal strip, locate those wires and jumper the pairs together. There are several possibilities
for terminal strip styles - see diagrams below.
The presence of the jumper(s) should bring on the DryCooler.
Samples
Actual location and
appearance may
vary.
Risk of electric shock. Can cause injury or death.
Exposed electric terminals may be present inside electrical and control enclosures.
Access to the voltage monitor (if any) may require opening the electrical enclosure.
Only persons qualified to work with exposed line-voltage terminals should be allowed
to open the unit electrical enclosure.
Follow all safety regulations.
WARNING
T.A.B.
5.33
