12.

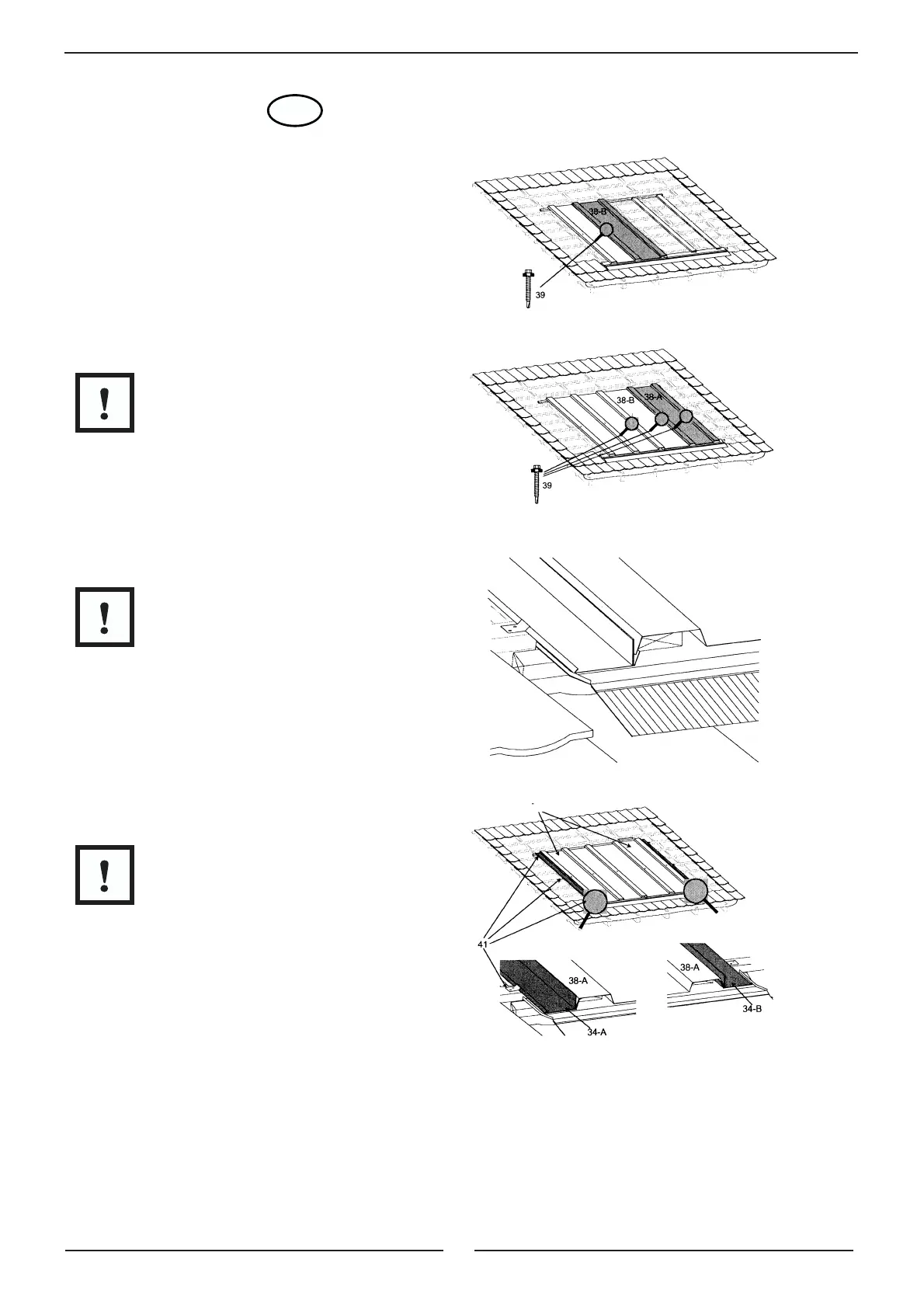

Place the first of the centre baseplates (38-B) on
the perpendicular fixing battens so that its left-
hand ridge overlaps the side baseplate.
Align vertically and secure with a single sealing
screw (39) in the centre of the ridge.
8980P196
13. Fix all remaining baseplates in the same manner.
8980P197
Note:
The last baseplate is a narrow one.
14. Slide the left and right side cover plates (34-A
and 34-B) under the outer slopes of the
baseplates.
8980P198
Note:
The inner edges of the side cover plates must be
underneath the outer edges of the baseplates.
15. Fix the outer edges of the side cover plates (34-
A and 34-B) to the roof battens using the fixing
plates (41).
8980P199
Note:
The angled face of the fixing plates must face
upwards and the longer horizontal face must be
on the outside.
GB
34A
34A
38A
38A
