SF600/SF600
Plus
Serial Flash Programming solution
www.dediprog.com 11
3.5 Socket Programming
The SF600 and SF600Plus have been designed to support the DediProg socket adaptors
and offer the socket programming flexibility. Different sockets adaptor are provided to fit
the different Serial Flash packages proposed in the market. Please note that socket mode
only supported Single and Dual IO.
A. For development:
Socket programming can be used during development when an engineering socket is
soldered in the target application board so that Serial Flash can be manually removed
and programmed in the SF600 and SF600Plus socket. DediProg supplies engineering
sockets which are footprint compatible with the SPI Flash.
B. For Production:
Socket programming can be used to program the Serial Flash before soldering.
DediProg software supports multi-programmers through USB to program few serial
Flash in parallel and SF600 and SF600Plus also supports Standalone mode.

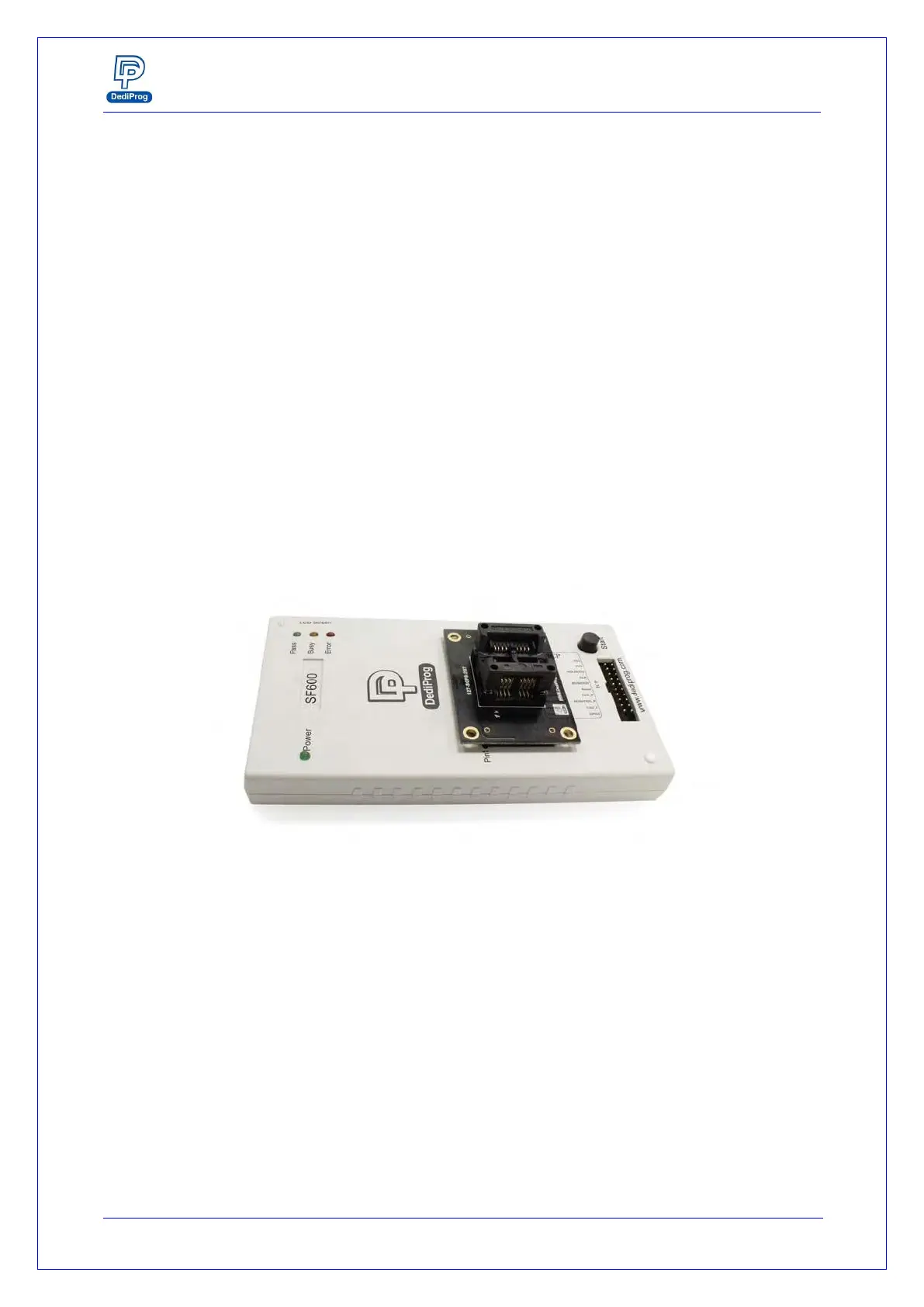

Fig 5: SF600/SF600Plus with Socket adaptor
Important:
Socket adaptor and In Circuit Programming cannot be used in the same time. To use the
socket programming, the in Circuit Programming cable has to be unconnected.
