SF600/SF600 Plus Serial Flash Programming solution
www.dediprog.com 4
II. SF600 and SF600Plus description
SF600 and SF600Plus have been designed to offer the best possible performances to
program the SPI Flash in different conditions.
2.1 Interface description

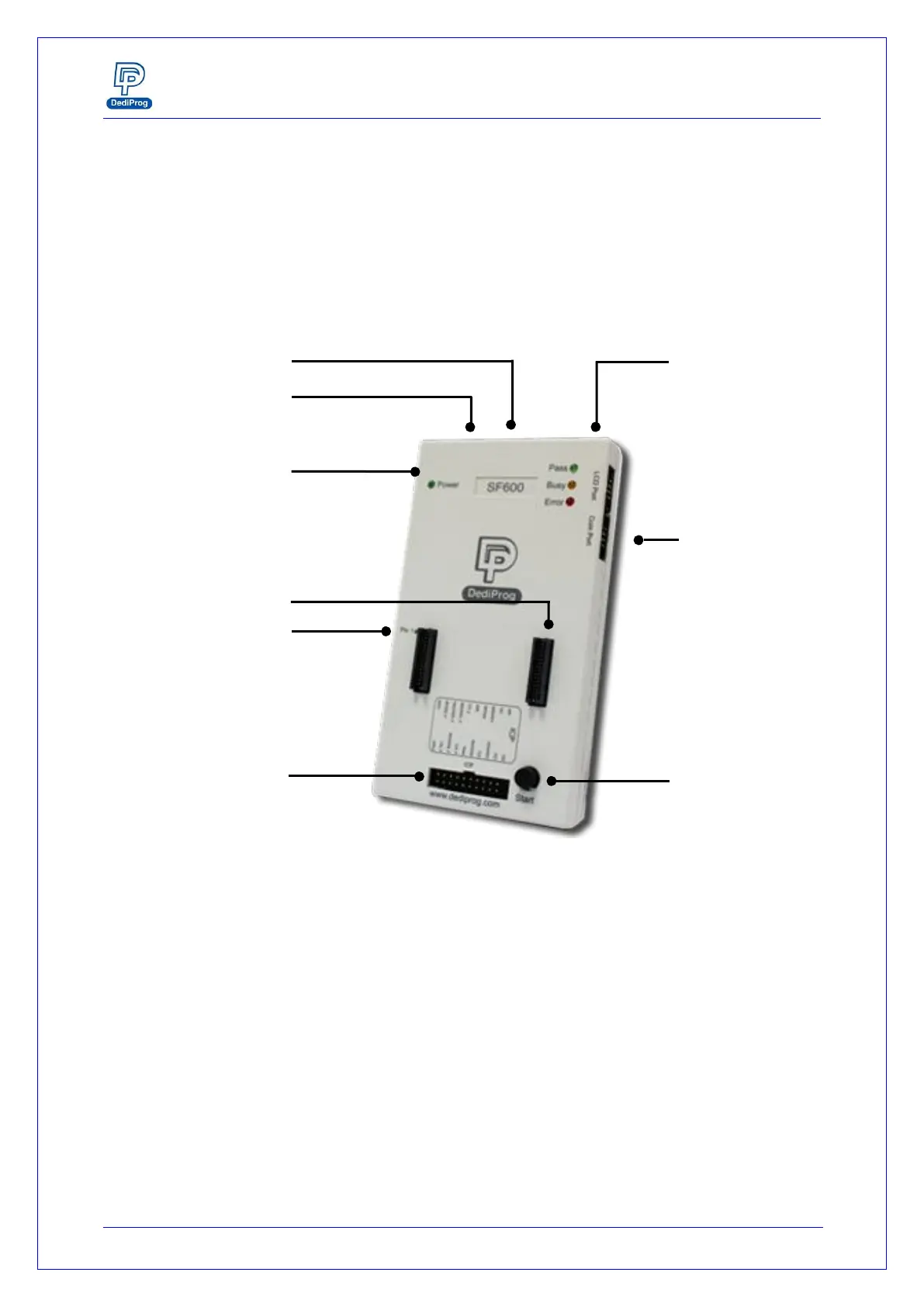

Fig 1: SF600/SF600Plus Programmer
A. USB Connector
USB connector is used to communicate with the SF software during the USB mode or to
provide the power during the standalone mode.
B. Power Connector
Connect power adaptor to SF600/SF600Plus when executing standalone programming.
C. Power LED
Power LED shines when SF600/SF600Plus is powered by USB or power adaptor.
D. Socket Adaptor Headers
Plug the DediProg socket adaptors and program the Serial flash off line. DediProg is
providing different socket adaptors to fit the market SPI Flash packages. Review the
socket adaptor available on DediProg website.
H. Start Button
F. Operation LED
A. USB Connector
B. Power Connector
C. Power LED
D. Socket Adaptor
Headers
E. ICP Connector
G.Com Port
