SF600/SF600
Plus
Serial Flash Programming solution
www.dediprog.com 21
E. When operation on the memory is finished
The SF600 and SF600Plus are witched in High impedance so the application board
can boot with SF600 and SF600Plus connected without conflict.

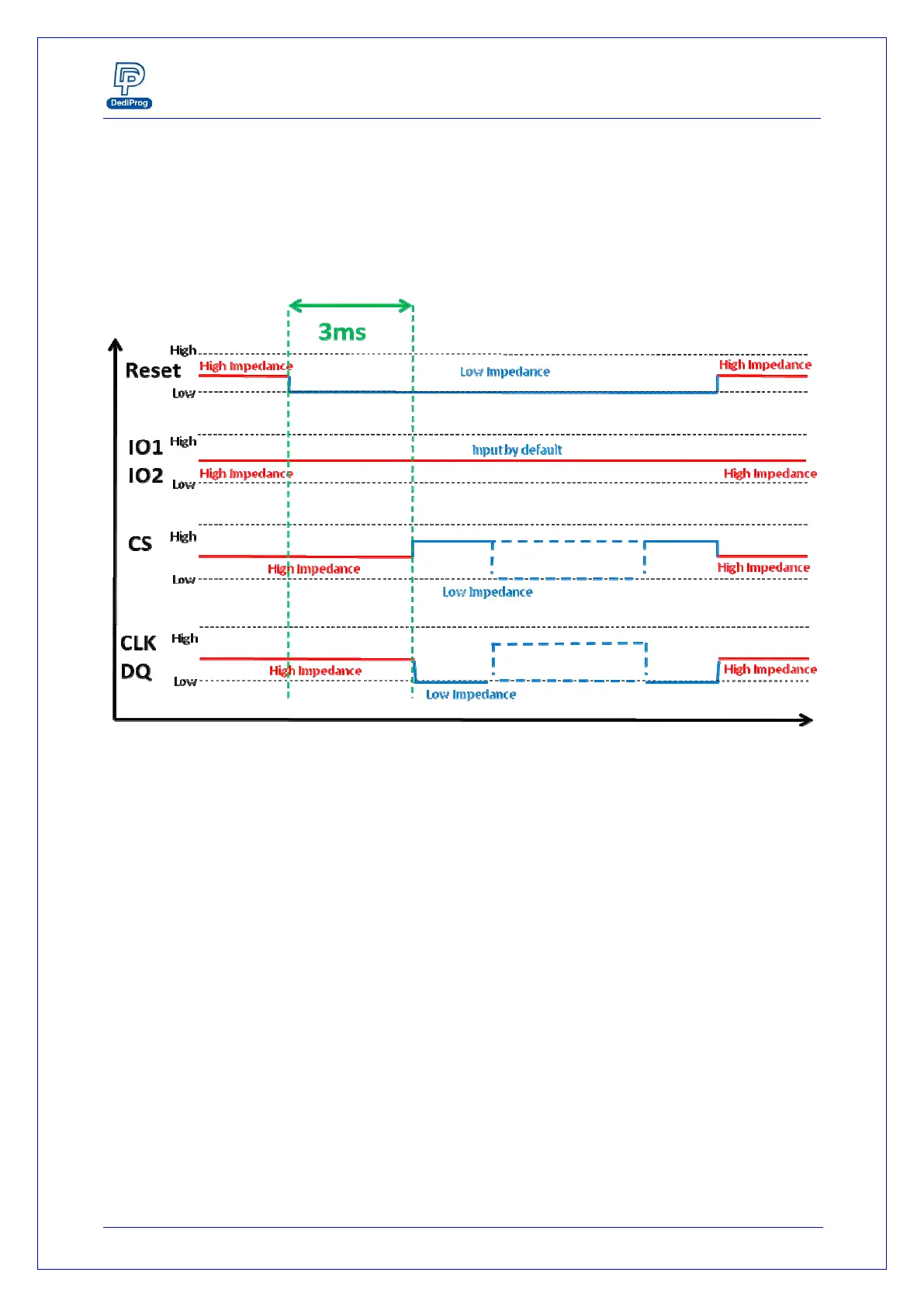

Fig 12: IO and SPI timing
5.2.4 Host PC requirements
The SF600 and SF600Plus interfaces with IBM compatible PC's through the USB 2.0/1.1
port. This gives full compatibility with the latest PC's, notebooks and portables.
System Requirements:
- PC with Windows XP / Vista / Win7/ Win8 / Win 8.1
- Hard disk with at least 64 MB free space.
System Interface:
- PC connexion ………....................……......….............USB 2.0/1.1 port
