SF600/SF600
Plus
Serial Flash Programming solution
www.dediprog.com 14

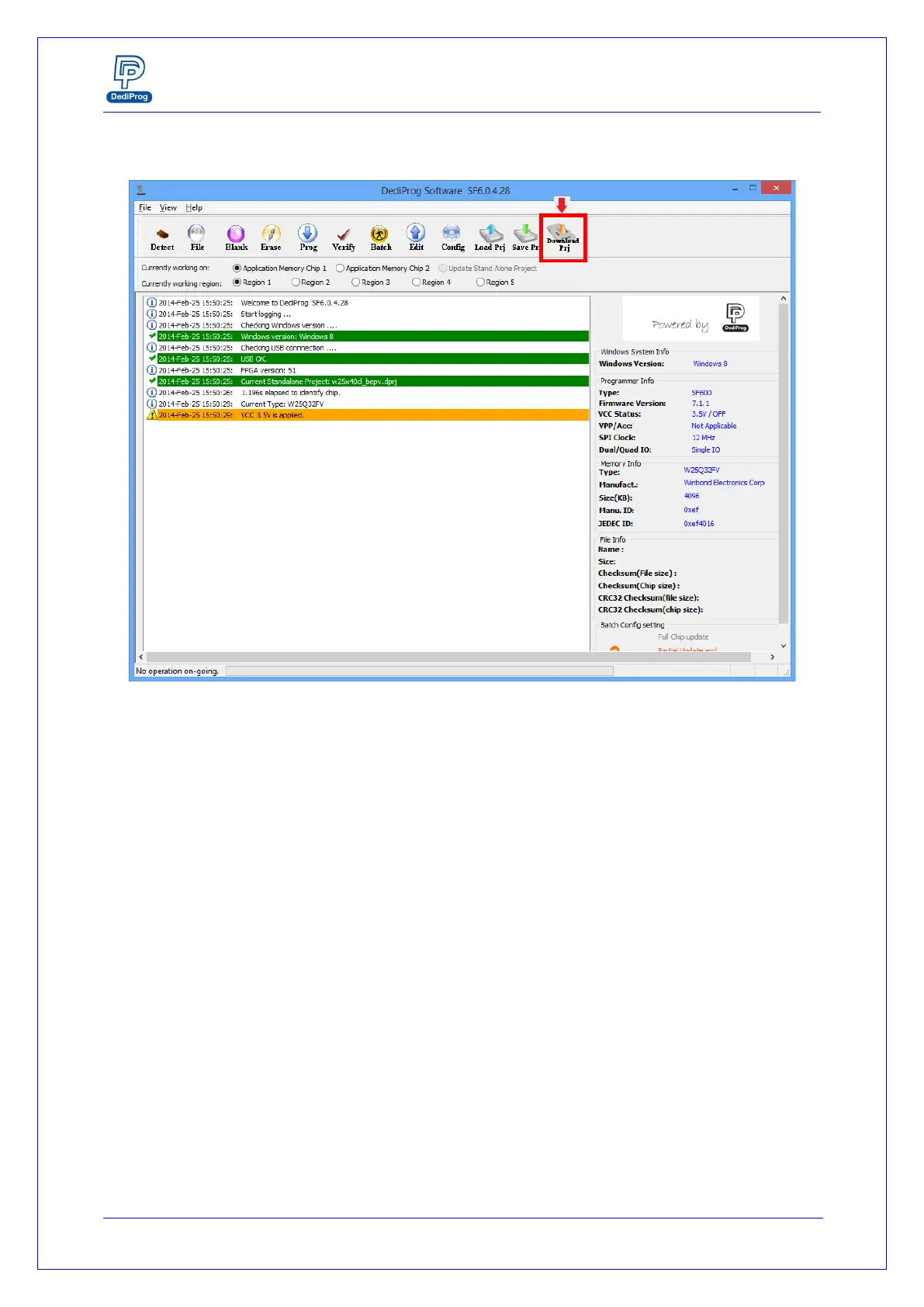

Fig 7: SF600Plus Engineering GUI.
4.1.2 Command line Interface
The command line interface has been designed to offer a faster user control of the
programmer or an automatic control of the programmer from other software.
Faster control:
User can quickly perform some repetitive operations just by typing the command on
our Window DOS interface.
Automatic control:
The command line can be called by other software to take the control over the
programmer.
Benefits:
- SF600 and SF600Plus can be controlled by the compiler in order to automatically
program the Serial Flash with the new code for trials
- SF600 and SF600Plus can be integrated in your production line and be controlled
by the In Circuit Tester to program the on board serial flash after the testing
has been successfully performed.
