8.1.3 Defibrillator
Category Specification
Waveform
Biphasic Truncated Exponential
Energy
Adult: 150 J nominal delivered into a 50 ohm load
Infant / child: 50 J nominal delivered into a 50 ohm load
Charge control
AutomaticbyPatientAnalysisSystem
Charge time from shock-advised
Typically<6secondswithafreshDBP-2800batterypack
and<9secondswithafreshDBP-1400batterypack.
Charge time may increase at the end of battery life and for
temperatures below 10°C.
Charge complete indication
• SHOCKbuttonashing
• “PressShockbutton”voiceprompt
Shock delivery
Shock is delivered by a single SHOCK button
DISARM
Automatic
• IfPatientAnalysisSystemdecidesrhythmisnolonger
shockable, or
• Within30secondsafterChargecomplete,ifoperator
has not pressed SHOCK button, or
• Ifdebrillationpadsareremovedfrompatientor
unplugged from unit.
Manual
• IfoperatorpressestheOFF/DISARMbuttonatanytime
to disarm and turns off the device.

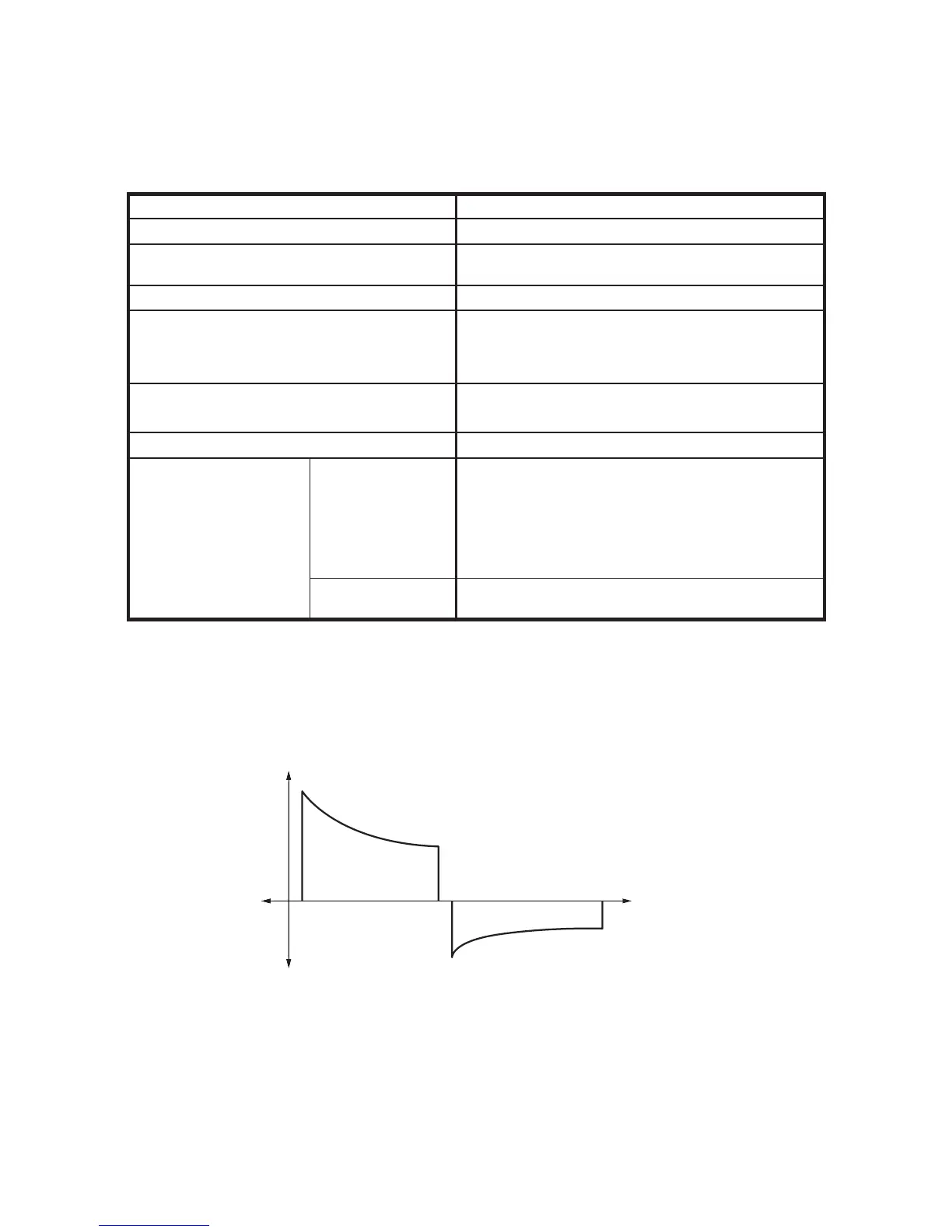

8.1.4 Waveform Specifications
The DDU-100 AED delivers a 150J Biphasic Truncated Exponential waveform to patients with
impedances ranging from 25 to 180 ohms.
V
V max
V min
A
B
V1
V1'
t
The waveform is adjusted to compensate for measured patient impedance. Nominal phase times
and energy delivered are shown in the tables that follow.
