3.1.2 Panel cutout

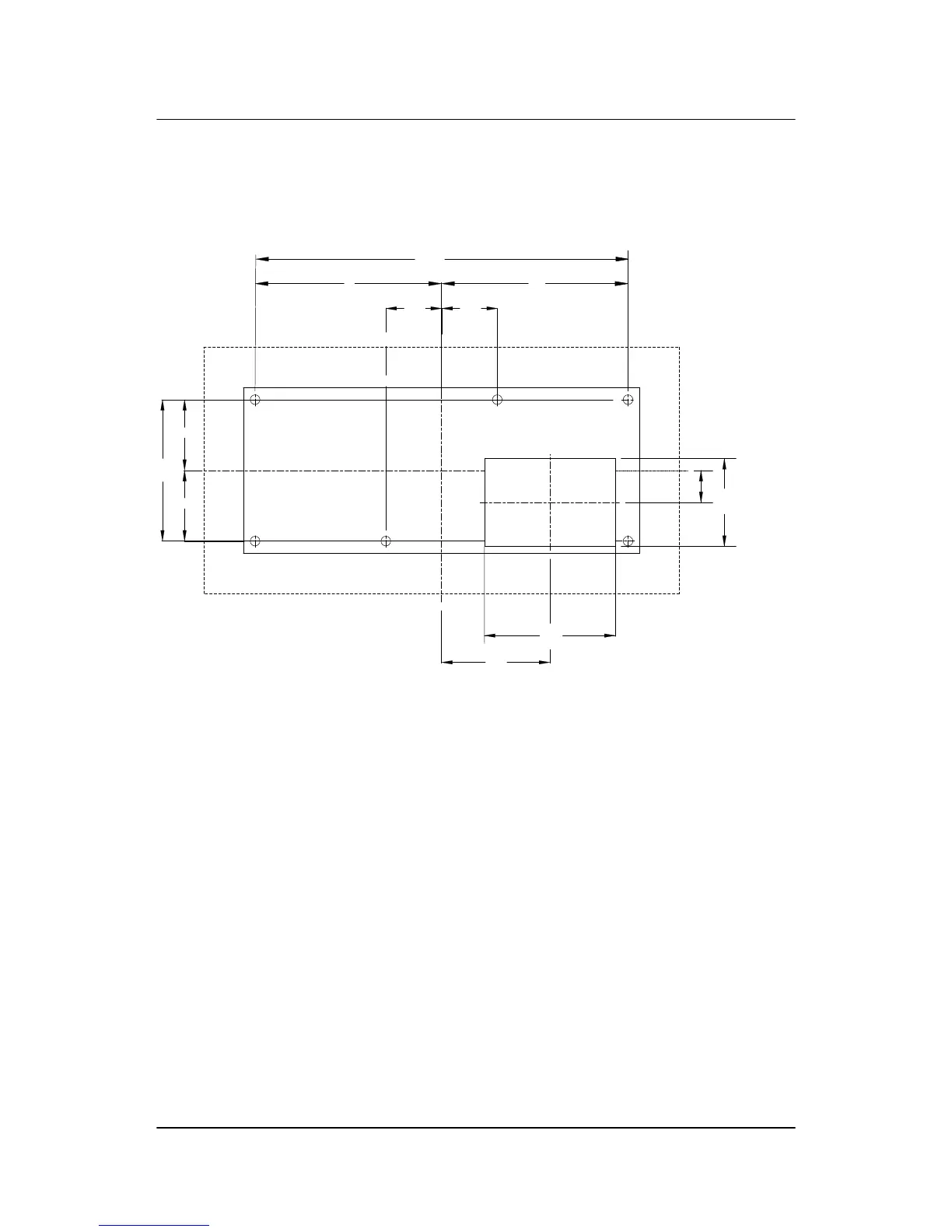

In order to ensure optimum mounting, the panel door must be cut out according to the panel cutout illustration
below.
Required space 222X115mm
Gasket outer 186X77mm
Screws for fastning:
3.5mm selfcutting threads
max. depth in display 9 mm
26.0
= =
= =
50.5
66.0
26.0
61.0
174.0
15.0
41.0
