Deif GPC-3 Installation Instructions

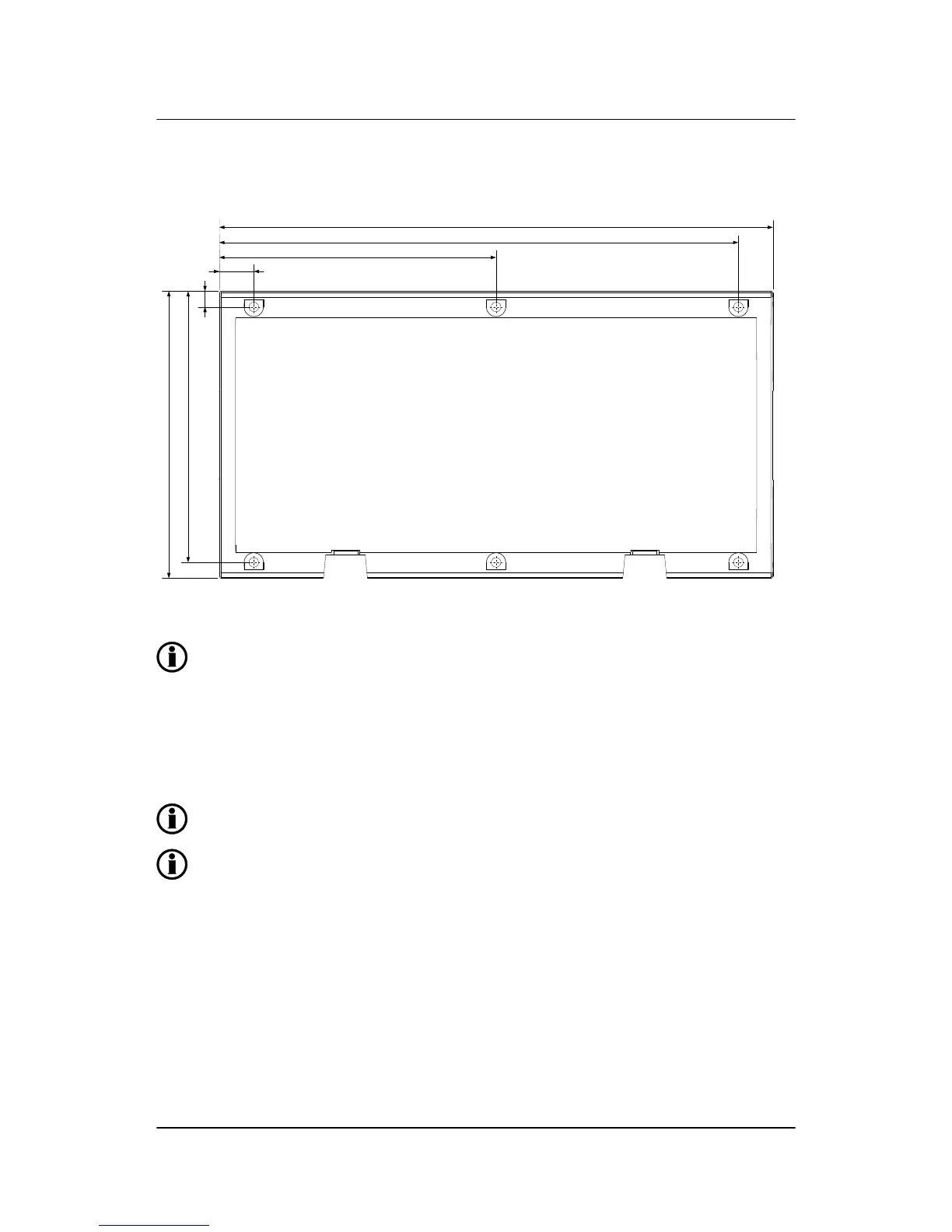

3.1.3 Drilling template
230.0 (9.055)
119.1 (4.689)
6.6 (0.260)
112.6 (4.433)
215.5 (8.484)
114.9 (4.524)
14.3 (0.563)
Dimensions are given in mm (inches).
3.1.4 Mounting instructions
For land applications, the units can be either DIN-rail or base mounted.
For marine applications, the units have to be mounted with screws to the rear side of the cabinet. Six screw
holes are available for this mounting method.
DEIF recommends using the screw hole fastening.
Make sure that the base unit does not come into contact with oil (such as cutting oil), grease or
other aggressive chemicals, as this may weaken the unit material and cause cracks.
ML-2 installation instructions 4189340582
UK
Mounting and dimensions
DEIF A/S Page 9 of 64
