MIB
Inst
allati
on Instruc
tions
and Reference Handbook
DEIF A/S
Page 21 of 50

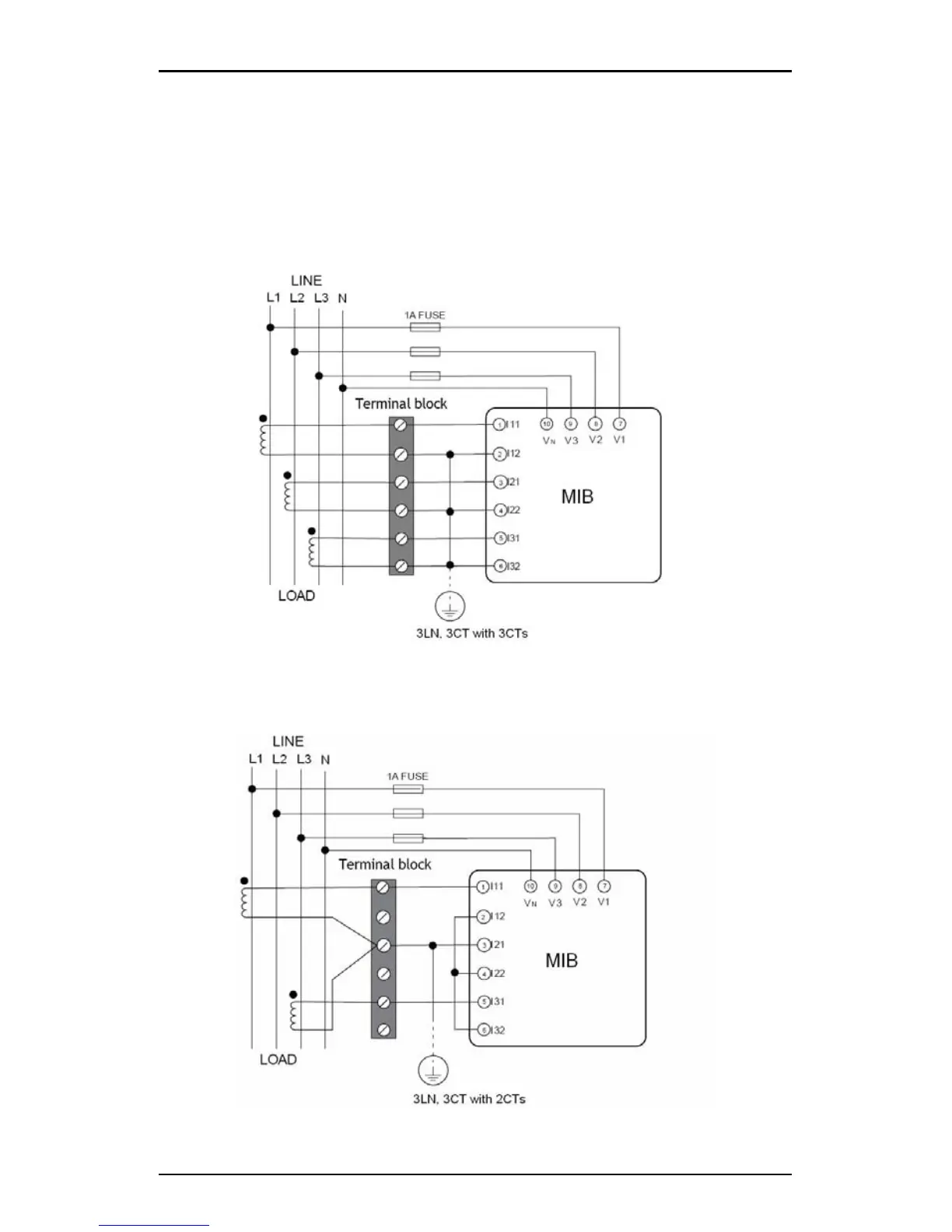

Most used wiring method
The voltage and current w
iring methods are shown in one draw
ing. The M
IB
meter will only
give correct readings if the settings
of the meter
and the
wiring are correct.
3LN, 3CT with 3 CTs: Selected wire mode 3LN, 3CT
3LN, 3CT with 2 CTs: Selected wire mode 3LN, 3CT
20
22
Table of Contents
Default Chapter
2
Table of Contents
2
About this Document
3
General Purpose
3
Intended Users
3
Contents/Overall Structure
3
Warnings and Legal Information
5
Legal Information and Responsibility
5
Electrostatic Discharge Awareness
5
Safety Issues
5
CE-Marking
5
Definitions
6
Product Information
7
Description of Functions
7
Measured and Calculated Values
8
Installation Instructions
10
Electrical Connection
12
Auxiliary Power Supply
14
Measuring Connections
15
Most Used Wiring Method
21
Digital Output (Only MIB 7020)
25
Communication
26
System Parameter Setting
27
Basic Operation
41
Display
41
Display Menus
43
Voltage and Current Data
43
Power Related Data
44
Energy and Running Hour Counters
46
Power Quality Data
47
Statistics Data
48
