MIB
Inst
allati
on Instruc
tions
and Reference Handbook
DEIF A/S
Page 14 of 50

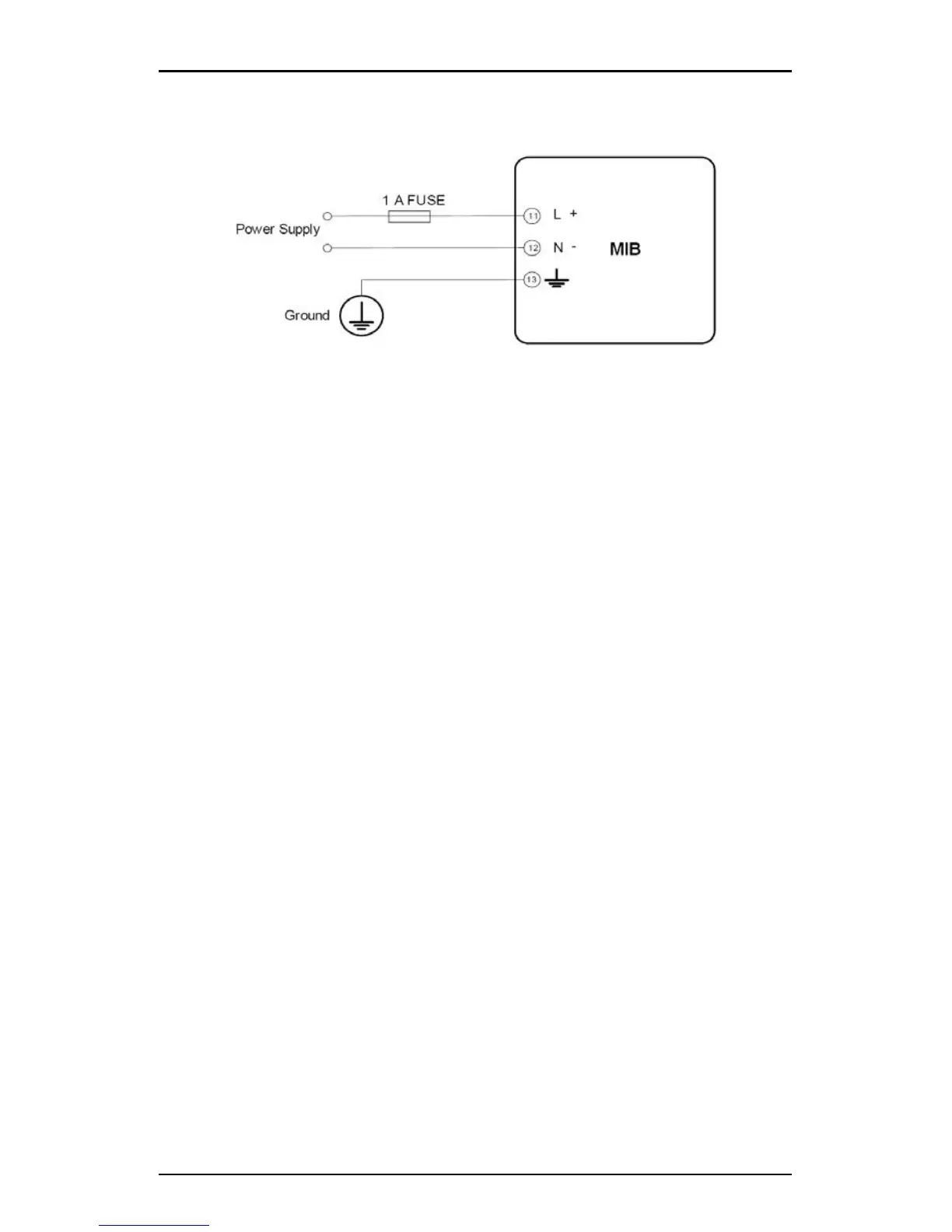

Auxiliary
power supply
100~415V AC, 50-60Hz (100~300V D
C).
The wire of the pow
er supply could be AW
G22-16 or 0.6-1.3mm
2
. A fuse
(typically 1A/250V AC
) should be used in the auxiliary pow
er supply loop.
For safety reasons w
e recommend to c
onnect
terminal no. 13 to the safety
earth systems of sw
itchgear.
13
15
