5. Basic operation

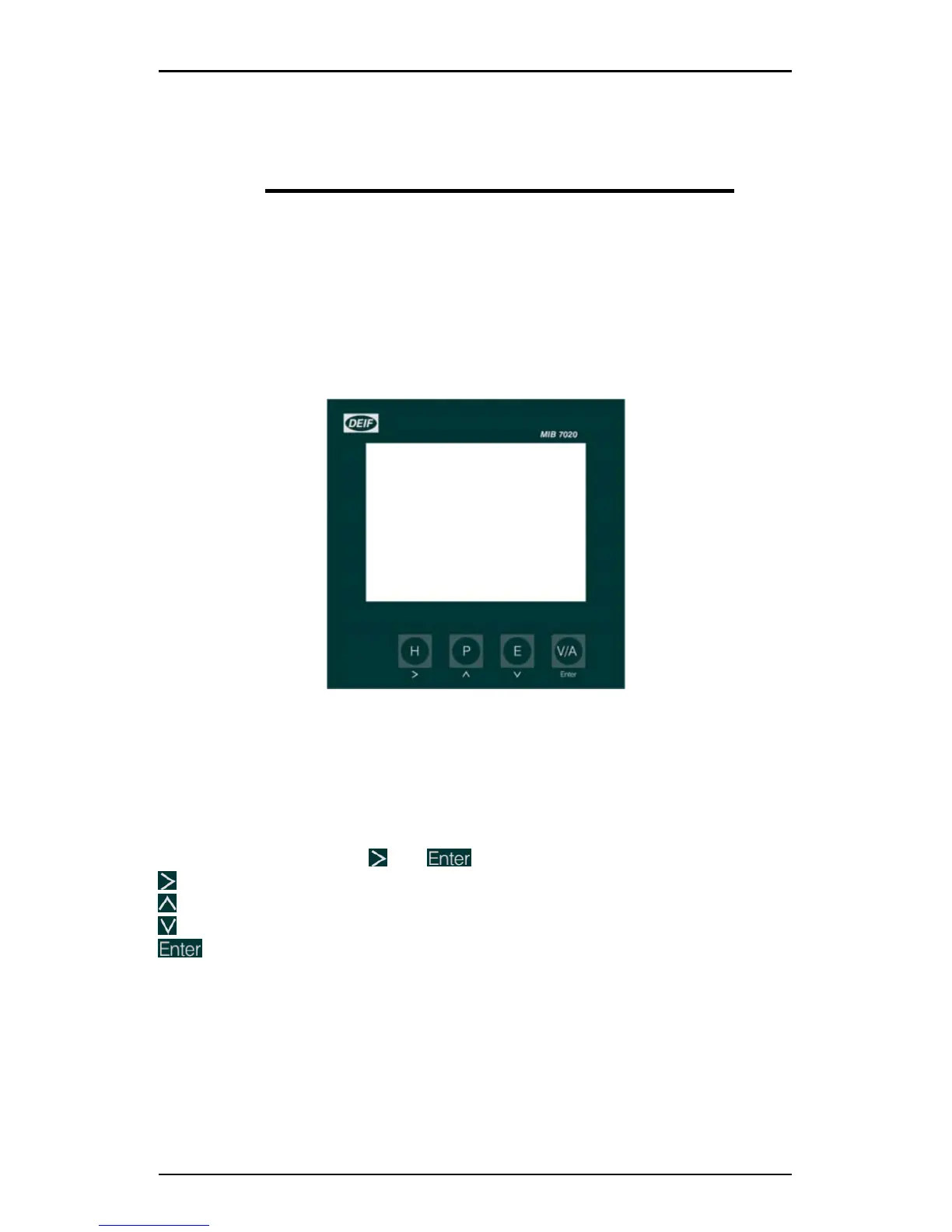

This chapter deals with the basic operation of the MIB. Screen dumps are
used in order to simplify the information.
Display
The display panel with white backlight is used for presentation of all measured
values and for displaying of the selected function during the setup process.
There are four push-buttons in the front panel used for navigation in the 3
modes:
Display mode: Press the keys, H = power quality, P = power, E = energy and
V/A = volt/ampere.
System mode: Press the
and keys simultaneously
to move the cursor one digit at a time
to increase the digit
to decrease the digit
to accept changes and move to next screen
