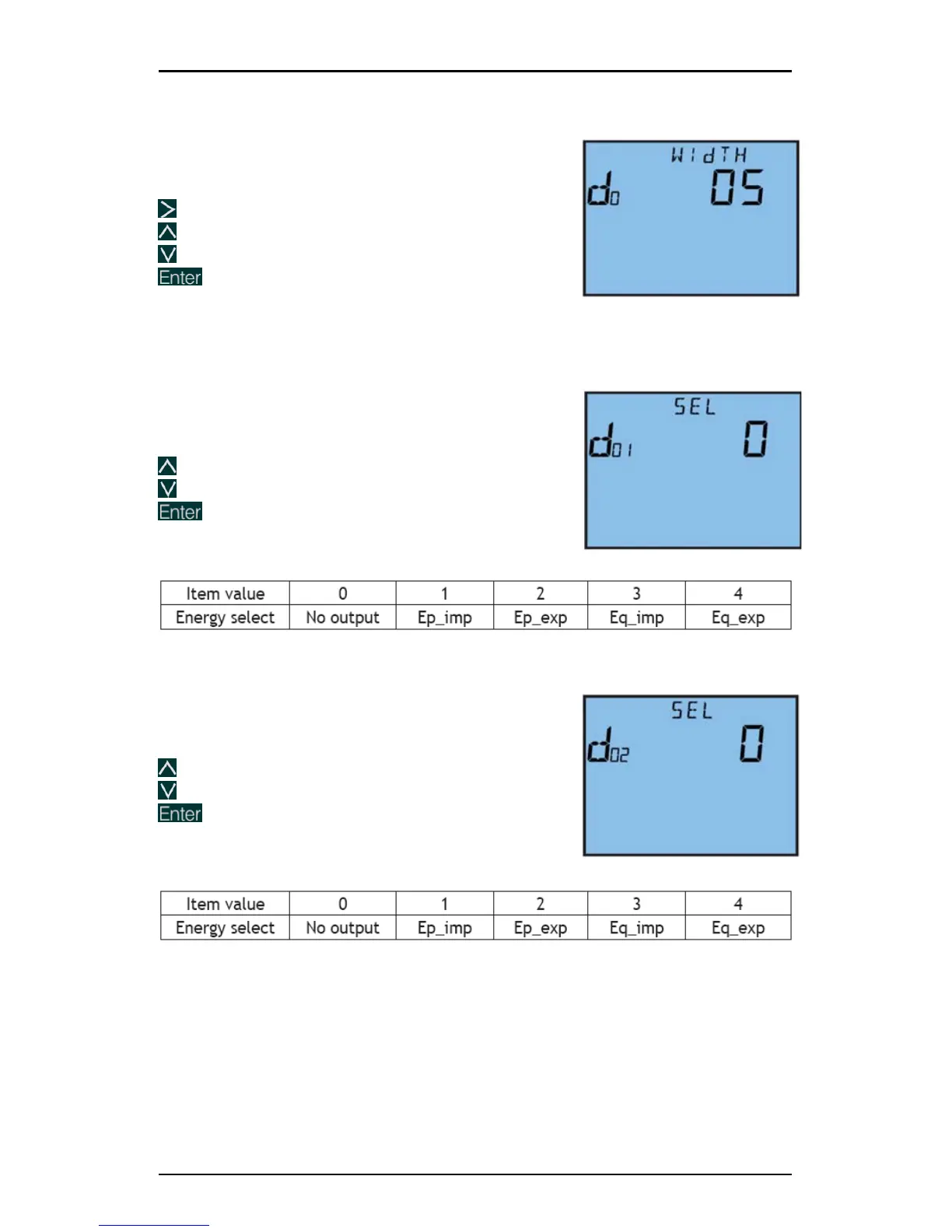

Screen no. 4
DO pulse width:
Integer from 1 to 50.
1 digit is 20ms
to move the cursor one digit at a time
to increase the digit
to decrease the digit
to accept changes and move to next screen
Example: Pulse width = 5, equal to 100ms (5 x
20ms)
Screen no. 5
DO1 output energy parameter:
DO1 output can be one of the energy items shown
below.
to increase the digit
to decrease the digit
to accept changes and move to next screen
Example: DO1 output energy = no output
Screen no. 6
DO2 output energy parameter:
DO2 output can be one of the energy items
shown below.
to increase the digit
to decrease the digit
to accept changes and move to next screen
Example: DO2 output: no output
