MIB Installation Instructions and Reference Handbook
DEIF A/S
Page 35 of 50

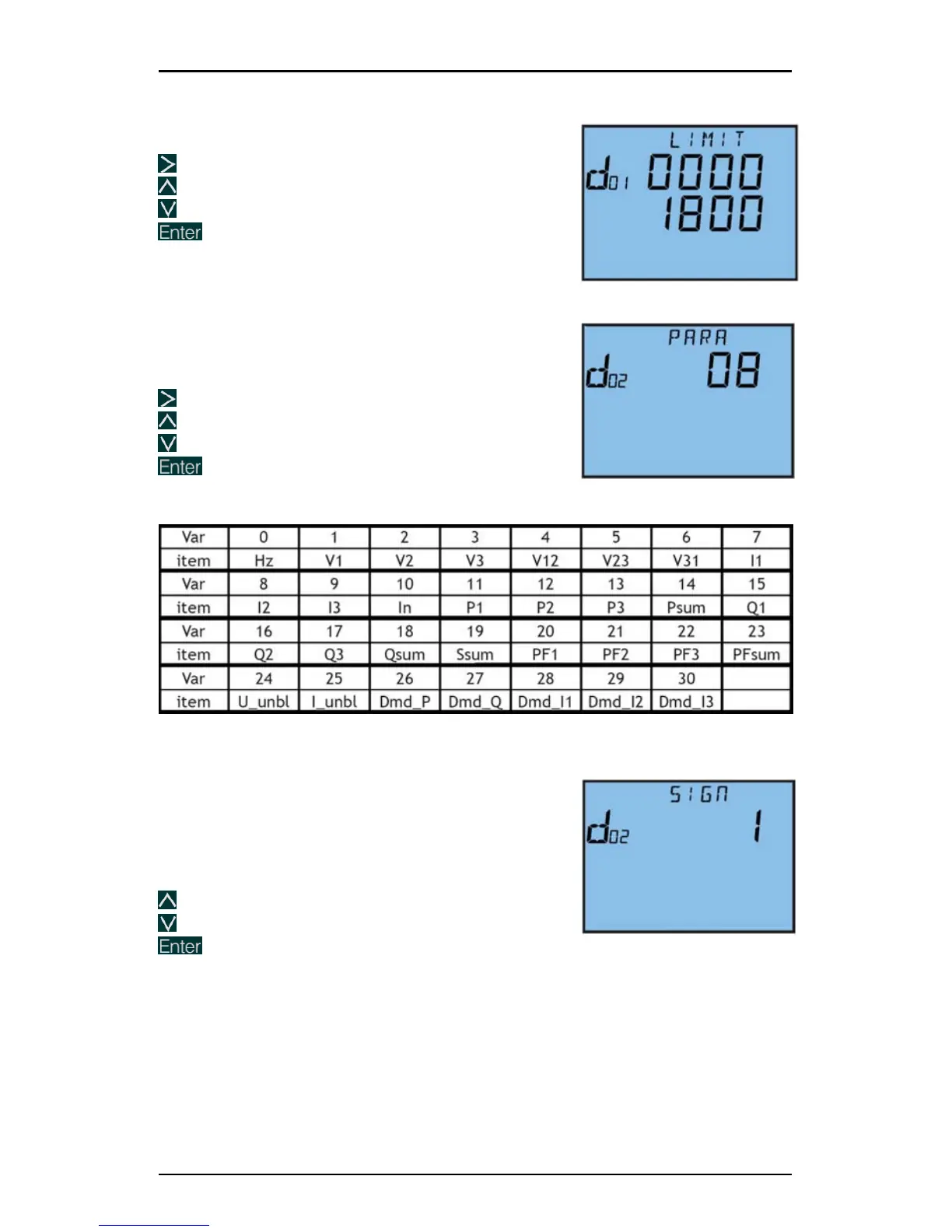

Screen no. 10
DO1 alarm limit:
to move the cursor one digit at a time
to increase the digit
to decrease the digit
to accept changes and move to next screen
Example: DO1 limit 00001800= 1800
Screen no. 11
DO2 alarm output items:
DO2 alarm output can be one of the items shown
below.
to move the cursor one digit at a time
to increase the digit
to decrease the digit
to accept changes and move to next screen
Example: DO2 alarm output = I2 current
Screen no. 12
DO2 alarm function:
1 = high alarm.
0 = low alarm.
High alarm: Alarm over the alarm limit.
Low alarm: Alarm under the alarm limit.
to increase the digit
to decrease the digit
to accept changes and move to next screen
Example: DO2 = high alarm
