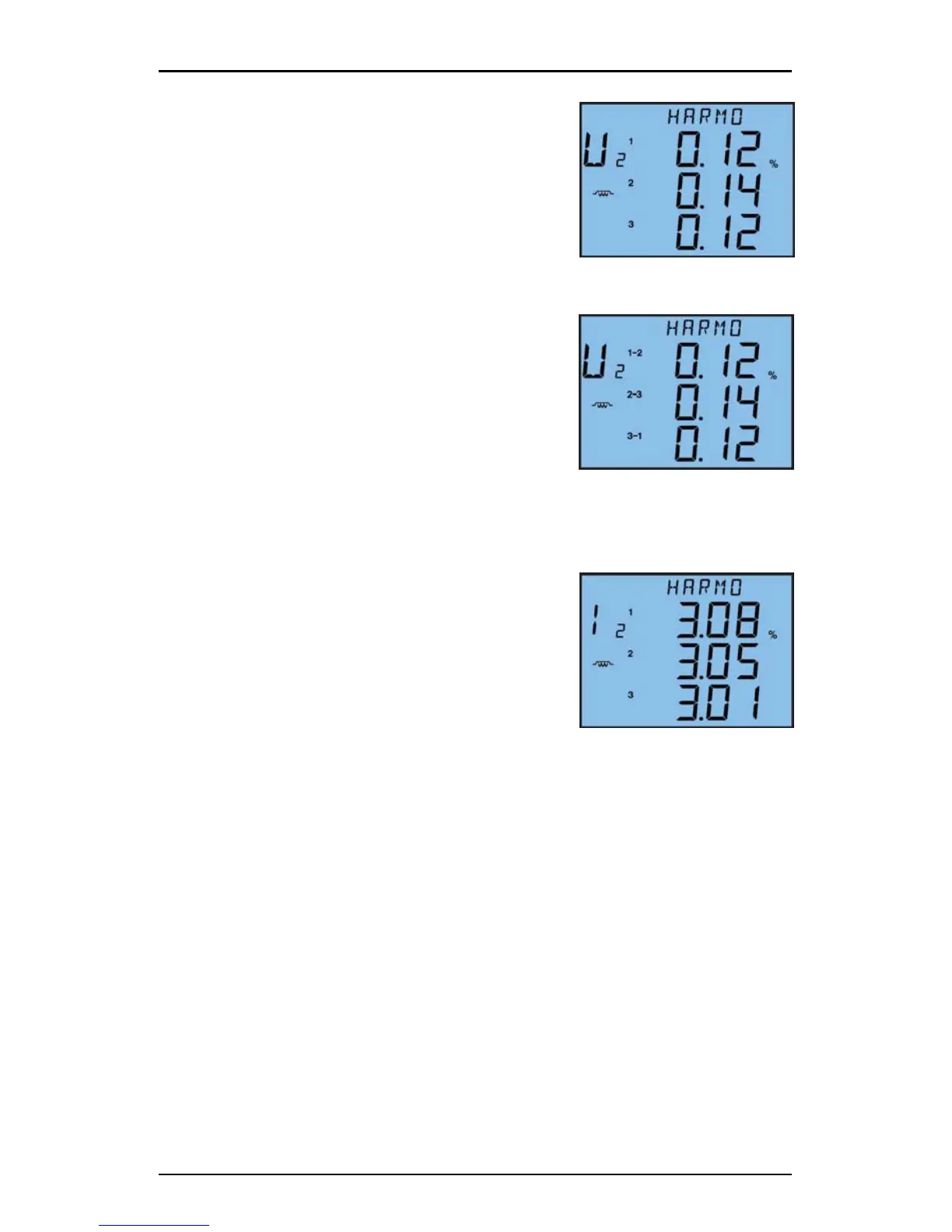

Screen no. 2 (phase-neutral voltage selected)
The screen will roll from 2
nd
harmonic rate of
voltage and current to 15
th
harmonic rate.
Press the H key each time.
2
nd
Harmonic of U1
2
nd
Harmonic of U2
2
nd
Harmonic of U3
Load nature inductive
Screen no. 2 (phase-phase voltage selected)
2
nd
Harmonic of U12
2
nd
Harmonic of U23
2
nd
Harmonic of U31
Load nature inductive
Press the H key in turn to display up to 15th
voltage harmonic.
►H
Screen no. 16
2
nd
harmonic rate of current:
2
nd
Harmonic of I1
2
nd
Harmonic of I2
2
nd
Harmonic of I3
Load nature inductive
Press the H key in turn to display up to 15th current harmonic.
