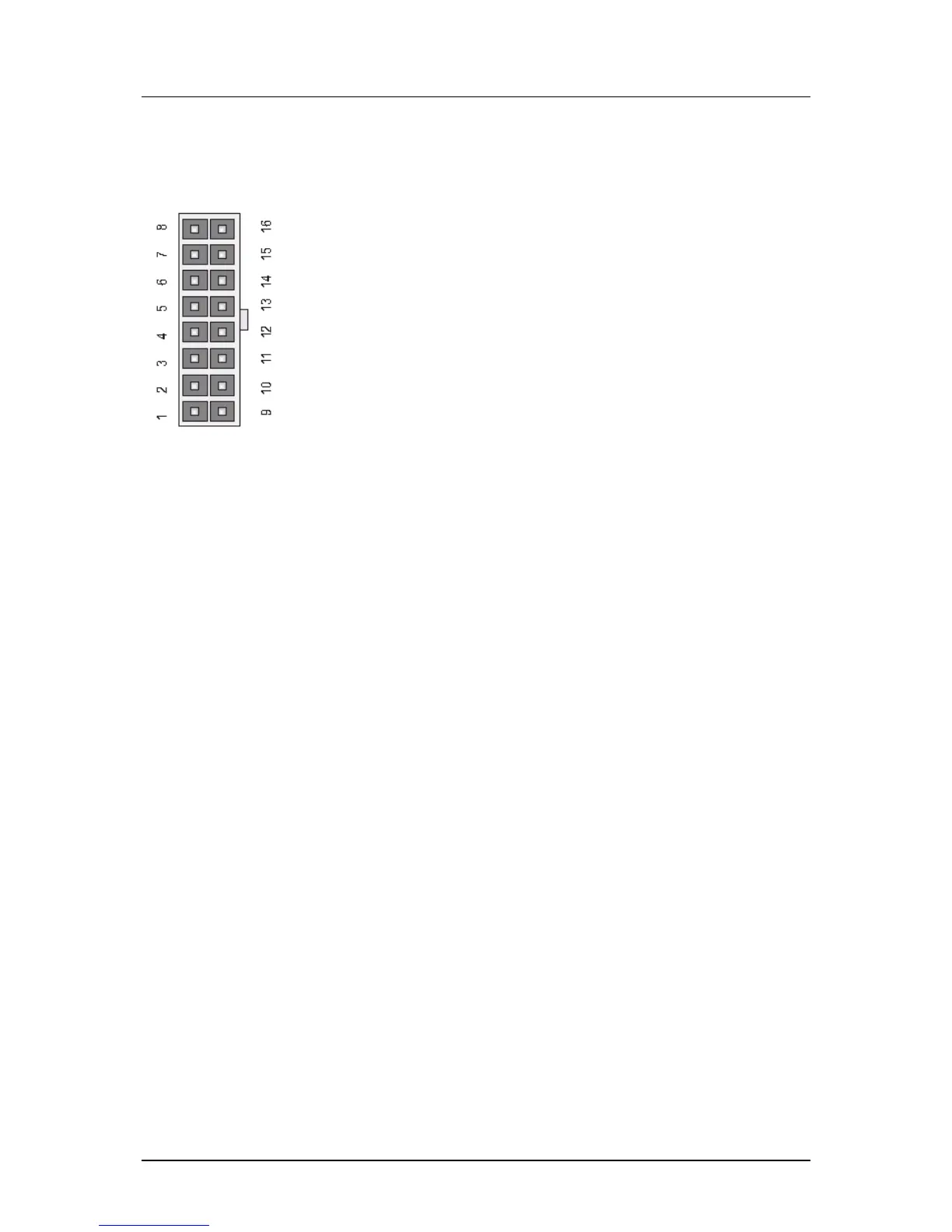

16-pin connector for valve control.
Standard: P-VA
The connector is used for pressure valve control. The control signals for the valve amplifiers
run through connector Analog B. An example of the required wiring is given in diagram 8061-
102.
Optional: Y-VA
The connector is used for direct control of the proportional valves.
An example of the required wiring for direct valve control is given in diagram 8061-101. This
schematic also includes a pin description of the connector. The position feedback from the
valve transducers (LVDT) is connected to connector Analog B.
See section 3.4 for more information about connector Analog B.
Analogue outputs:
Prop. Valve: Y1/Y2 4 x 3A max.
Pressure valve: P 1.5 A max.
Analogue inputs:
24V Power Supply 18-30V DC
ripple +/- 2V max.
max. 13A
Shielding of cables should be connected to the available M3 ground plug beside the
connector.
