Delem
V0
614
, 1.
12
3.5.

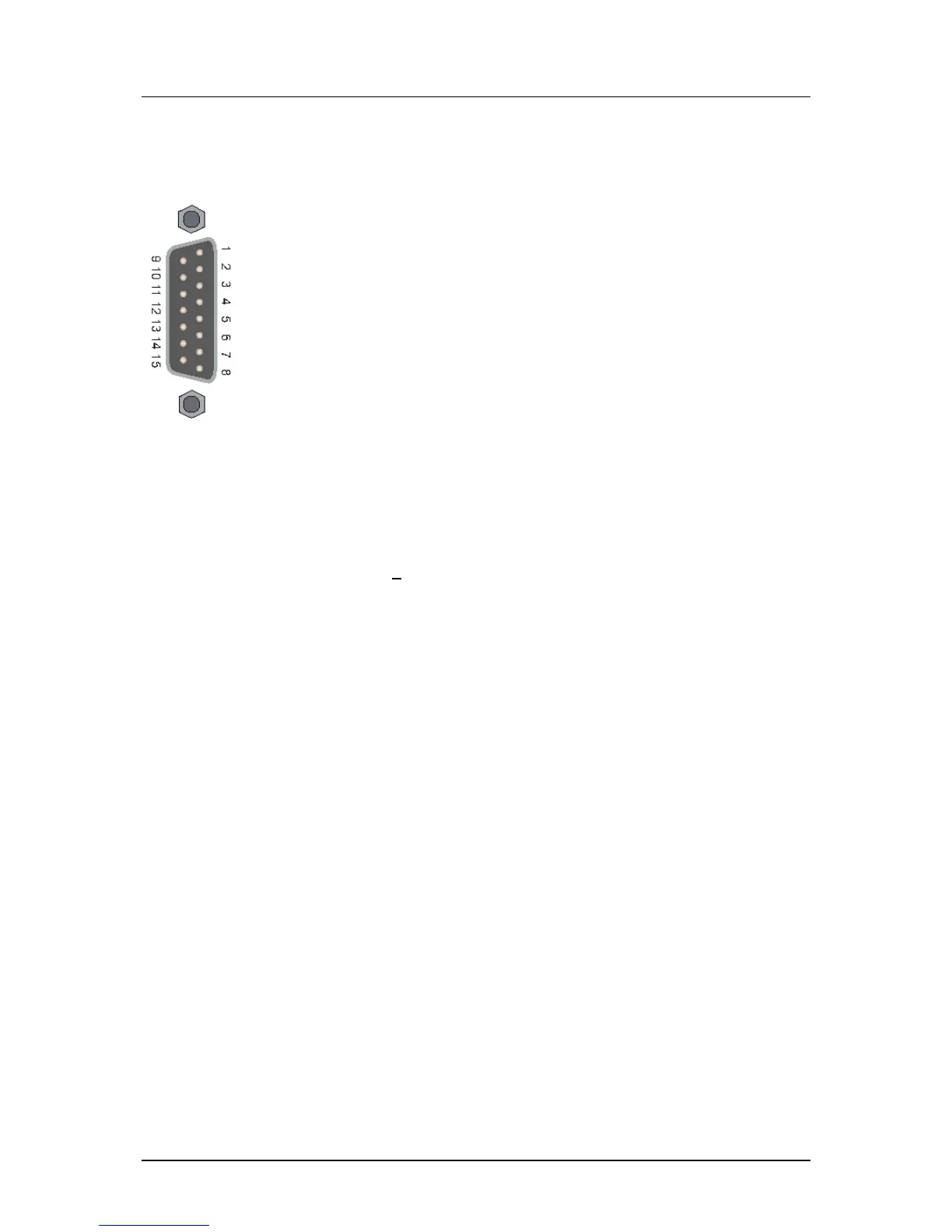

Analog A
Connector Analog A prov
ides several analog signals, two analog
outputs and four analog inputs.
See schematic 8061
-
101 for connection de
tails.
Specifications for Analog I/O
Analogue inputs (4x)
0-
10V, input im
pedance 44 k
Ω
Reference voltage (2x)
10V
+
2%
Analogue outputs (2x)
+/
-
10V
10mA max.
maximum load 1 k
Ω
11
13
Table of Contents
Default Chapter
3
Table of Contents
3
Part I - Hardware Description
5
Introduction
6
Specifications
7
Physical Dimensions
7
Technical Specifications
8
System I/O
9
Introduction
9
Power Supply
10
USB Connector
10
Valve Connector
11
Analog a
12
Analog B
13
Digital I/O
13
Encoders
16
Spare Parts
17
Introduction
17
Schematics
18
Part II - Machine Settings
28
The Machine Parameters
29
Machine Parameters Menu
29
Update Control
30
Update Procedure
30
Backup/Restore the Application
34
Modify the Update
35
Option Installation
37
Request Option on the Control
37
Request Option Code at Delem
40
Windows Tasks
43
Windows Introduction
43
Directory Structure
45
Important Files
46
Editing the Autoexec.bat
50
Control Rescue Procedure
52
Sequencer Adjustment
56
Analysis Program
58
Part III - the Diagnostic Program
62
General Remarks
63
Valve Outputs
63
Components Check
63
Test-Menu
64
Start Diagnostic Mode
64
The Menu
64
Key Test
65
Screen Test
66
I/O Test
68
Test Screen
68
Testing the Valve Deflection
70
Appendix A - Reference List
73
