3. System I/O
3.1. Introduction

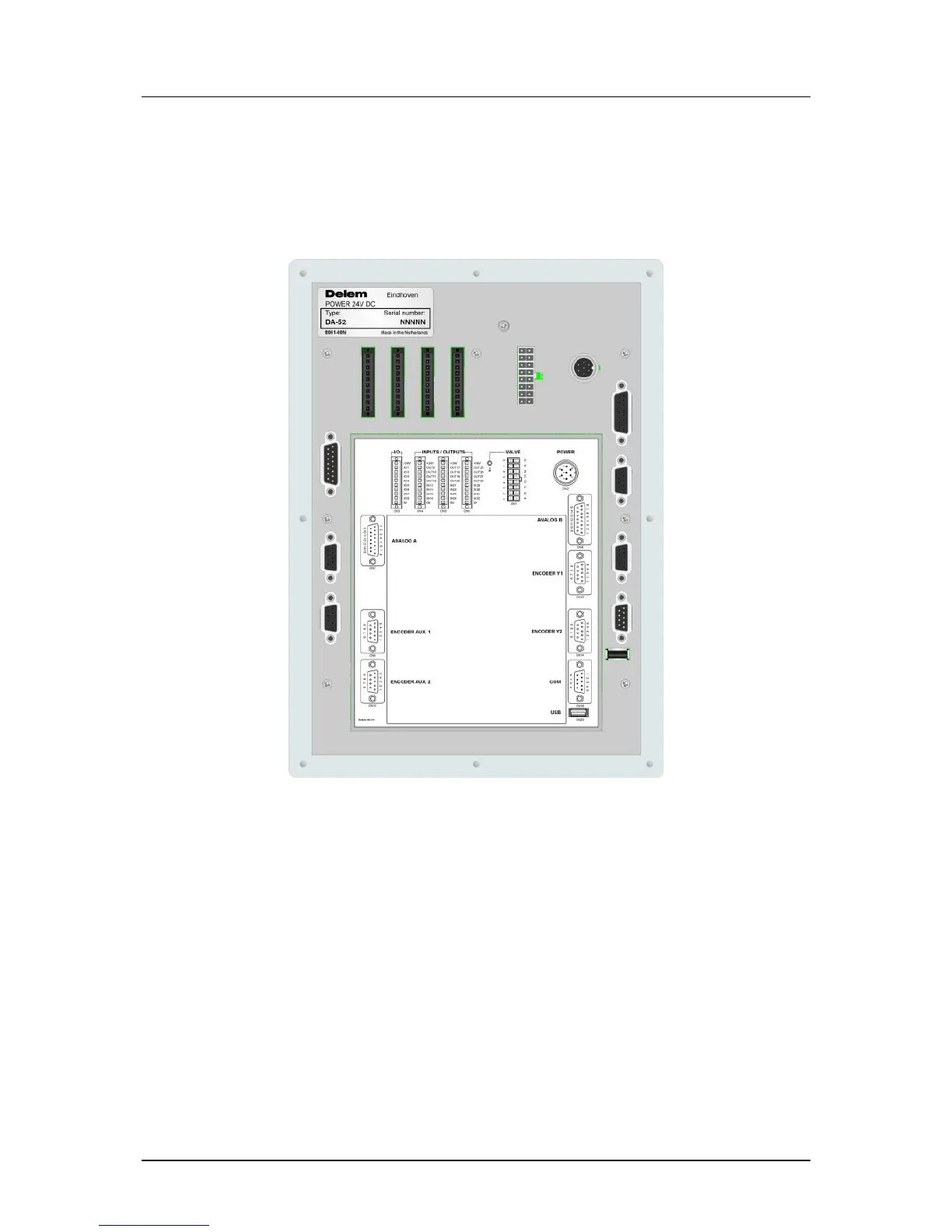

Figure 3.a
The DA-52s control is equipped with a large set of connectors for various functions:
- valve control
- system I/O
- encoder feedback
- communication
- USB
The various connectors are discussed in the following sections.
Warning:
Connectors may not be plugged or unplugged when power is ON. Connectors may only be
connected or disconnected when power is OFF.
The only exception to this rule is the USB connector.
