Delfield F18DC48P-RCPR User Manual

Section 6 Service Information
Part Number: 9291545 REV00 11/20 21

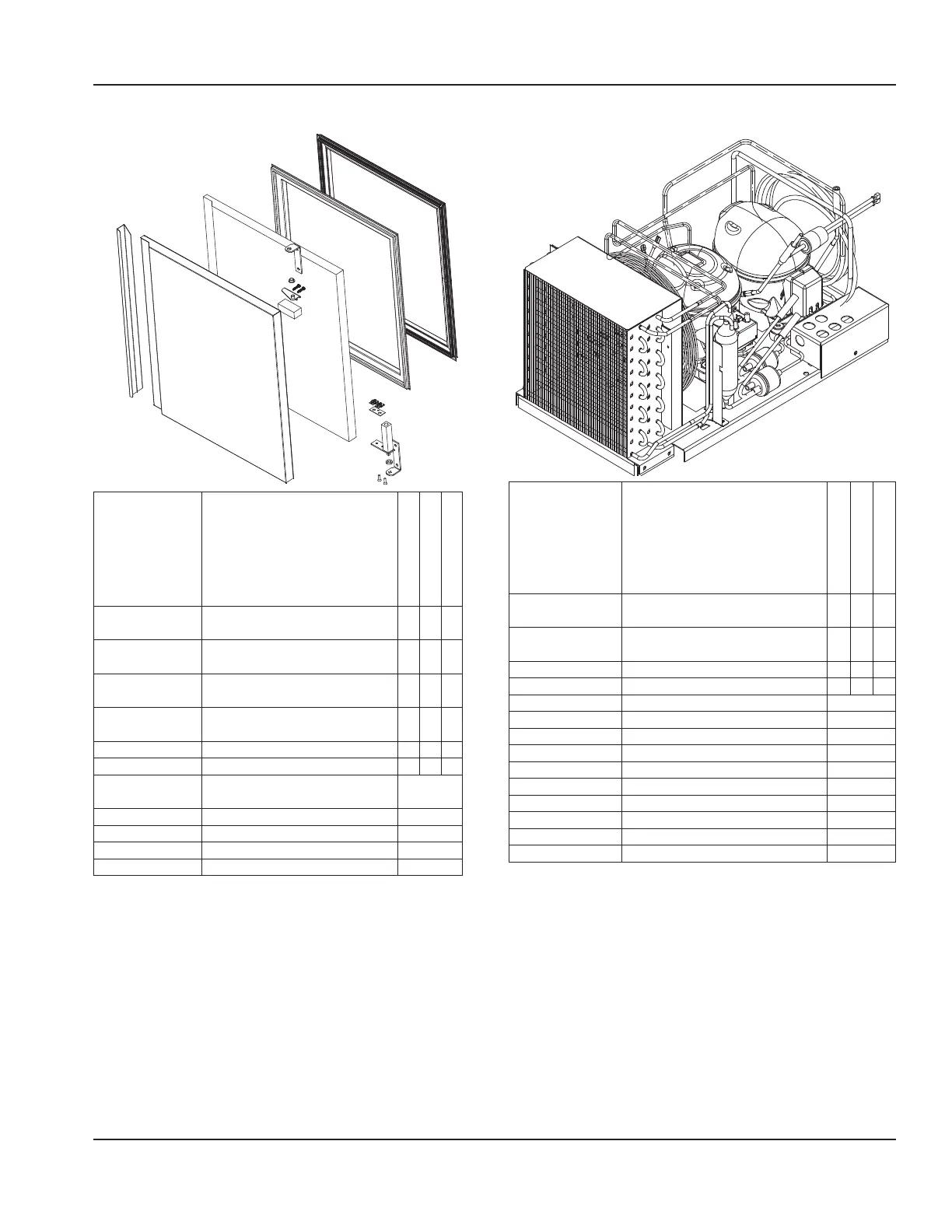

DOOR ASSEMBLIES
Part # Description
F18DC48P (PR/PL) F18DC72P (PR/PL) F18DC99P (PR/PL)
000-187-00FU-S Door assembly, 24”, RT
23.75” x 25.72” (60cm X 65cm)
X
000-187-00FV-S Door assembly, 24”, LT
23.75” x 25.72” (60cm X 65cm)
X
000-187-00FW-S Door assembly, 27”, RT
26.75” x 25.72” (68cm X 65cm)
X X
000-187-00FX-S Door assembly, 27”, LT
26.75” x 25.72” (68cm X 65cm)
X X
1701184 Gasket, door, 24” (61cm) X
1701185 Gasket, door, 27” (69cm) X X
0160179 Hinge kit, complete
(for right or left hinged doors)
X
3234072 Hinge, door, top/LH, bottom/RH X
3234073 Hinge, door, top/RH, bottom/LH X
9321107 Bushing, nylon, hinge pin X
3234391 Hinge, Door, L-Shaped X
Condensing Unit Assemblies
Part # Description
F18DC48P (PR/PL) F18DC72P (PR/PL) F18DC99P (PR/PL)
000-BN5-004F-S Dual Condensing unit,
1/3hp & 1/4hp, 115V
X
000-BN5-004G-S Dual Condensing unit,
1/3hp & 1/5hp, 115V
X X
3527163 R290 Compressor 1/4hp X
3527162 R290 Compressor 1/5hp X X
3527193 R290 Compressor 1/3hp X
1703017 Condensate Pan X
3510017 Condensing Coil X
2160019 Condensor Fan Guard X
2162513 Fan Motor, 35w X
3510021 Fan Blade X
3516478 Filter Dryer .25” inlet X
2190000 Relay X
3510001 Low Pressure Switch X
000-SCH-0156 Wiring Schematic X
