Secure the rail assemblies to the cabinet
The supplied screws and washers are used to secure the rail assemblies to the front and rear of the cabinet.
NOTE: For square hole cabinets, install the supplied conical washer before installing the screw. For unthreaded round hole
cabinets, install only the screw without the conical washer.
1. Align the screws with the designated U spaces on the front and rear rack flanges.
Ensure that the screw holes on the tab of the system retention bracket are seated on the designated U spaces.
2. Insert and tighten the two screws using the Phillips #2 screwdriver.

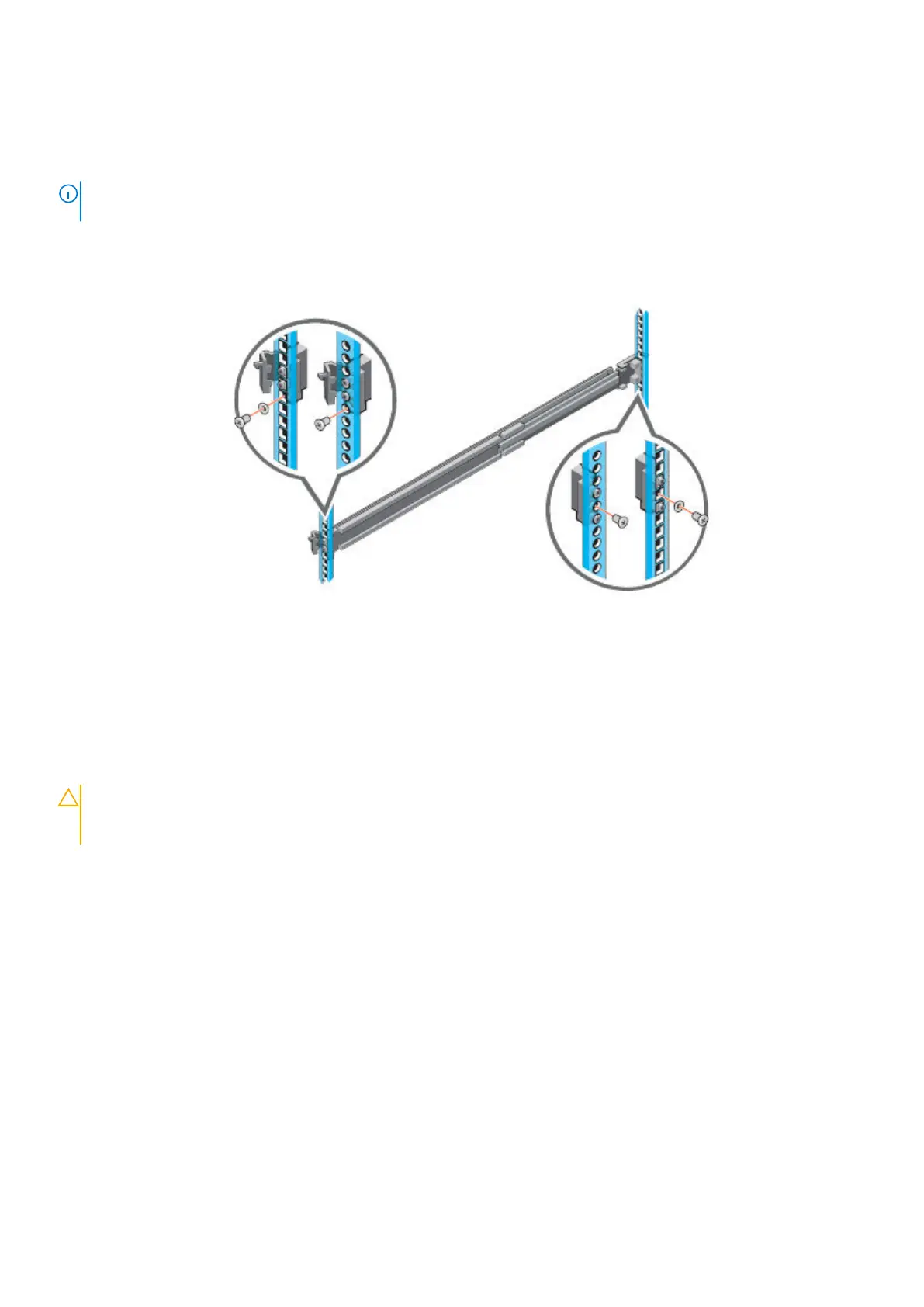

Figure 4. Installing screws
Install the system in the cabinet
This procedure is used to install the system in the cabinet.
Follow all safety guidelines.
CAUTION:
The system is heavy and should be installed in a cabinet by two people. To avoid personal injury
and/or damage to the equipment, do not attempt to install the system in a cabinet without a mechanical lift
and/or help from another person.
1. At front of the cabinet, pull the inner slide rails out of the rack until they lock into place.
8
F900 node installation
