Physical dimensions
The N2200-ON Series switches have the following physical dimensions, excluding the PSU and fan tray handle:
• 1.71 in x 17.09 in x 15.75 in (H x W x D)
• 43.5 mm x 434 mm x 400 mm (H x W x D)
(PSU and fan tray handle adds 1.18 in or 30 mm)
LED display
The N2200-ON Series switch includes LED displays on the I/O side of the switch. This section describes open networking installation
environment (ONIE) LED behaviors. Some LED behaviors may change after you install your software.
LED behavior
The following N2200-ON Series switch LED behavior is seen during ONIE operations:

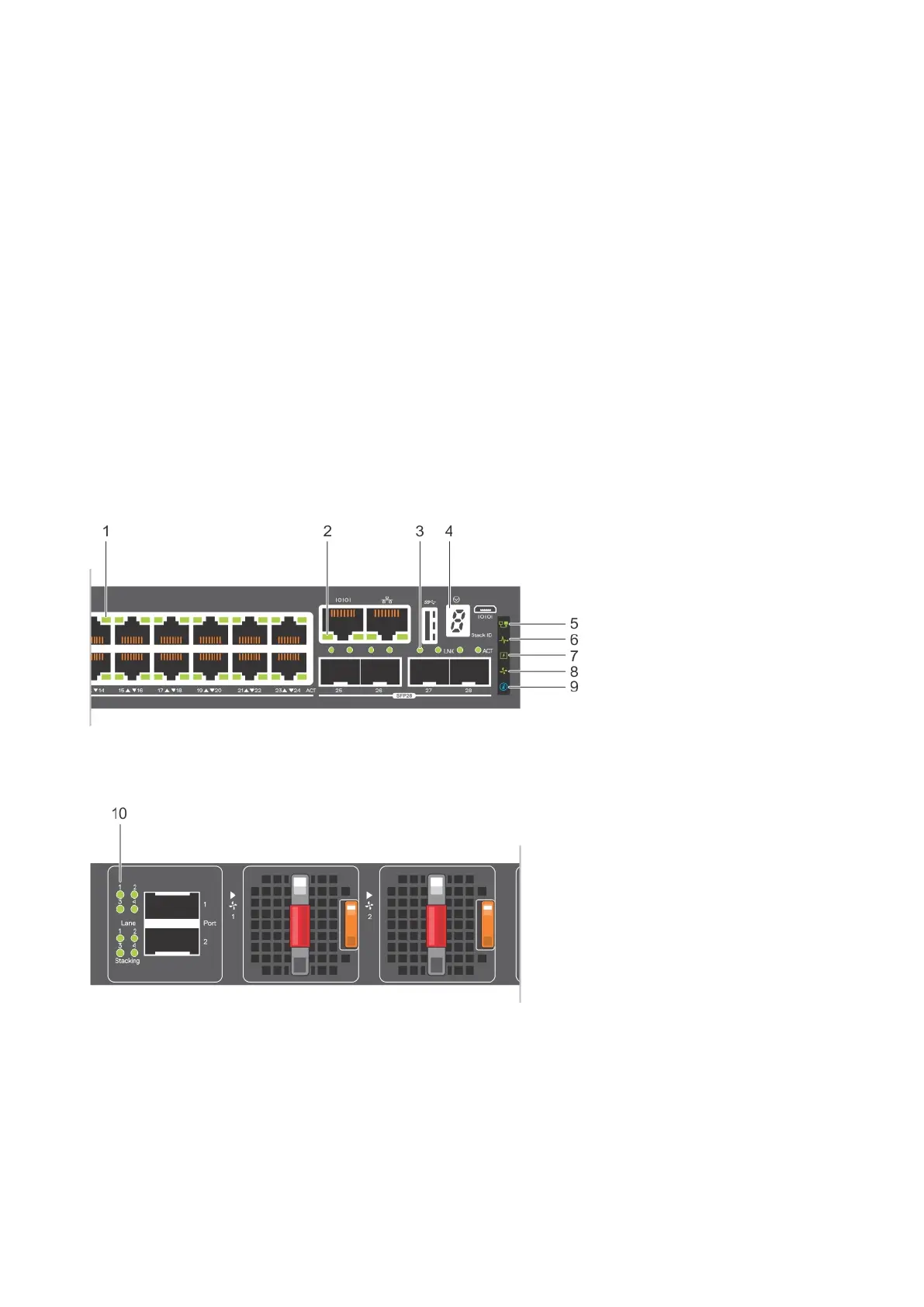

N2200-ON Series LEDs
1. Port activity LEDs 2. Management port activity LEDs
3. SFP28 Port activity LEDs 4. Stack ID LED
5. Stack Master LED 6. System Status/Health LED
7. Power LED 8. Fan LED
9. Locator LED/System Beacon 10. Stacking port activity LEDs
N2200-ON Series switch 11
