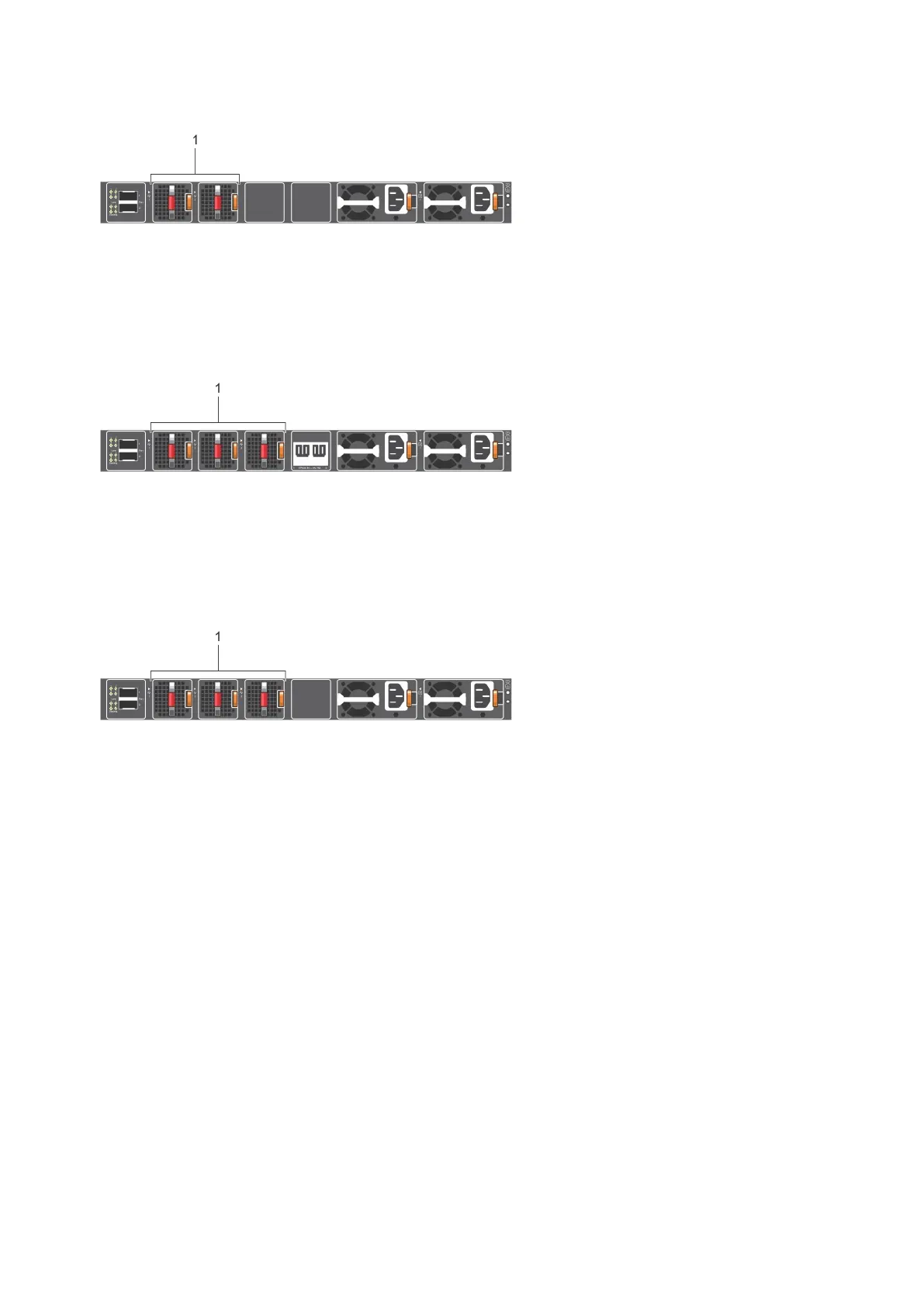

1. Fans—Fan1 is near the left edge of the switch; Fan2 is near the center of the switch.
N2248PX-ON fan modules
1. Fans—Fan1 is near the left edge of the switch; Fan3 is near the center of the switch.
N2248X-ON fan modules
1. Fans—Fan1 is near the left edge of the switch; Fan3 is near the center of the switch.
Fan LEDs
• Solid green—Fan input is OK.
• Flashing green blink at 1Hz—Fan is in a faulty state.
• Off—Fan is off.
Fan module installation
The fan module in the N2200-ON Series switch is field replaceable.
1. Remove the fan slot cover from the N2200-ON Series switch using a small #1 Phillips screwdriver. The fan slot cover has one screw
on the top and one screw on the bottom of the platform.
2. Take the fan module out of the shipping box.
3. Slide the module into the bay.
N2224PX-ON fan installation
Fans
43
