5. USB Type-A port 6. Stack ID
7. MicroUSB Type-B port 8. Status LEDs
9. 25G SFP28 ports

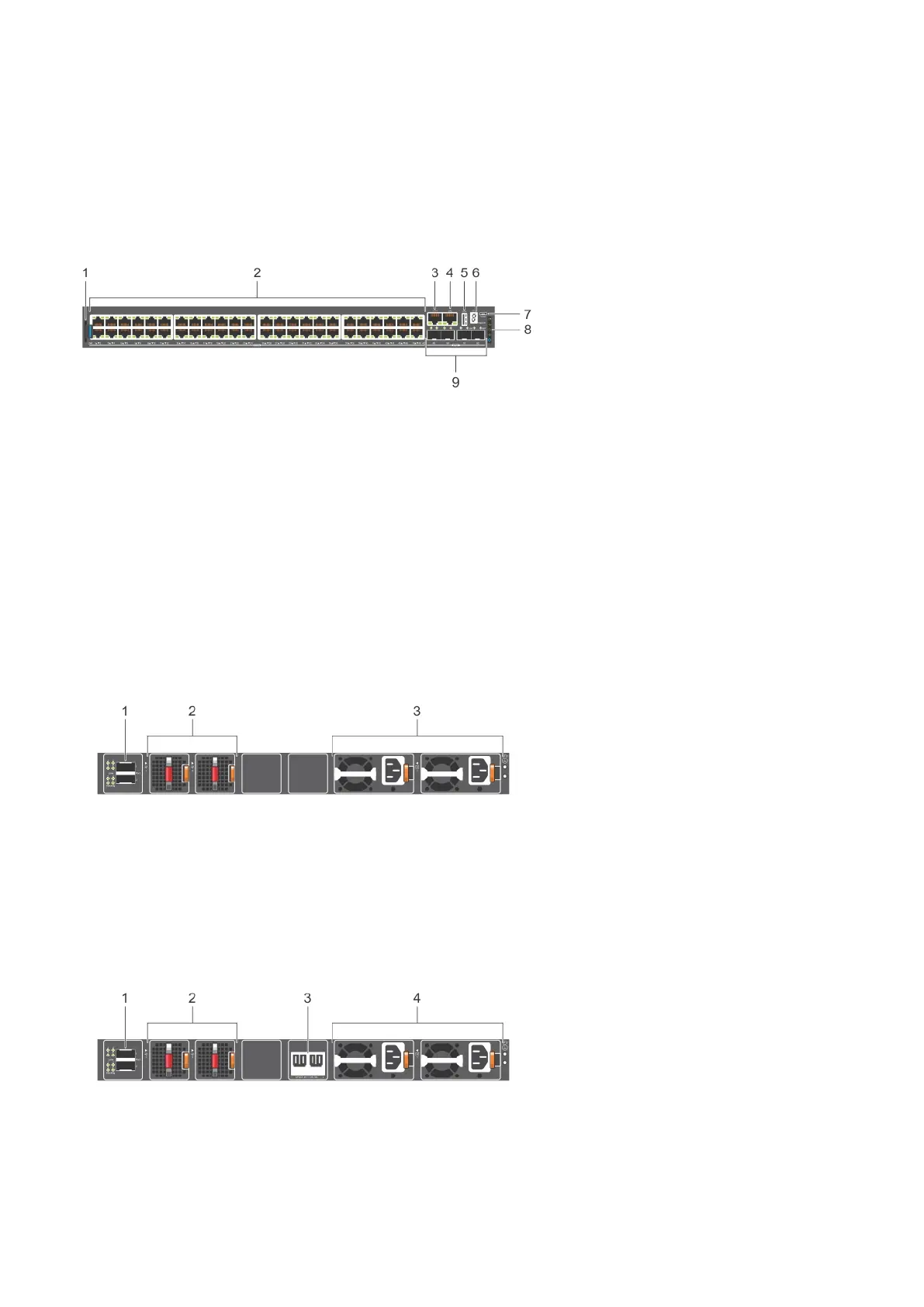

N2248PX-ON I/O-side view
1. Luggage tag 2. 2.5GBASE-T RJ45 ports:
• First 24 ports with 802.at (30W) PoE
• Second 24 ports with 802.3bt Type-3 (60W) PoE
3. RJ45 serial management port 4. RJ45 Ethernet console port
5. USB Type-A port 6. Stack ID
7. MicroUSB Type-B port 8. Status LEDs
9. 25G SFP28 ports
N2200-ON Series PSU-side views
N2224X-ON PSU-side view
1. 40G QSFP+ stacking ports
2. Fans
3. AC or DC PSUs
N2224PX-ON PSU-side view
1.
40G QSFP+ stacking ports 2. Fans
3. Input for external power shelf (MPS-1S shelf and MPS-3S shelf) 4. AC or DC PSUs
