Item Control/Feature Icon Description
• Green LEDs 4–7 – High byte hex POST code
13 Serial port (3.5 mm mini jack) Not for customer use
14 Four Mini-SAS High Density
(HD) ports (Slot 1/Port 1, Slot 1/
Port 2, Slot 1/Port 3, and Slot 1/
Port 4)
— Front-end connectivity ports
NOTE: The mini-SAS HD ports are used for front-end connectivity only
and cannot be used for back-end expansion.
15 Mini-SAS port B (Slot 2/Port 2) Back-end expansion port B
16 Mini-SAS port A (Slot 2/Port 1) Back-end expansion port A
SCv2000/SCv2020 Storage System Drives
The SCv2000/SCv2020 storage system supports only Dell Enterprise hard disk drives (HDDs) and Dell Enterprise solid-state drives
(eSSDs).
The drives in the SCv2000 storage system are installed horizontally. The drives in the SCv2020 storage system are installed vertically. The
indicators on the drives provide status and activity information.

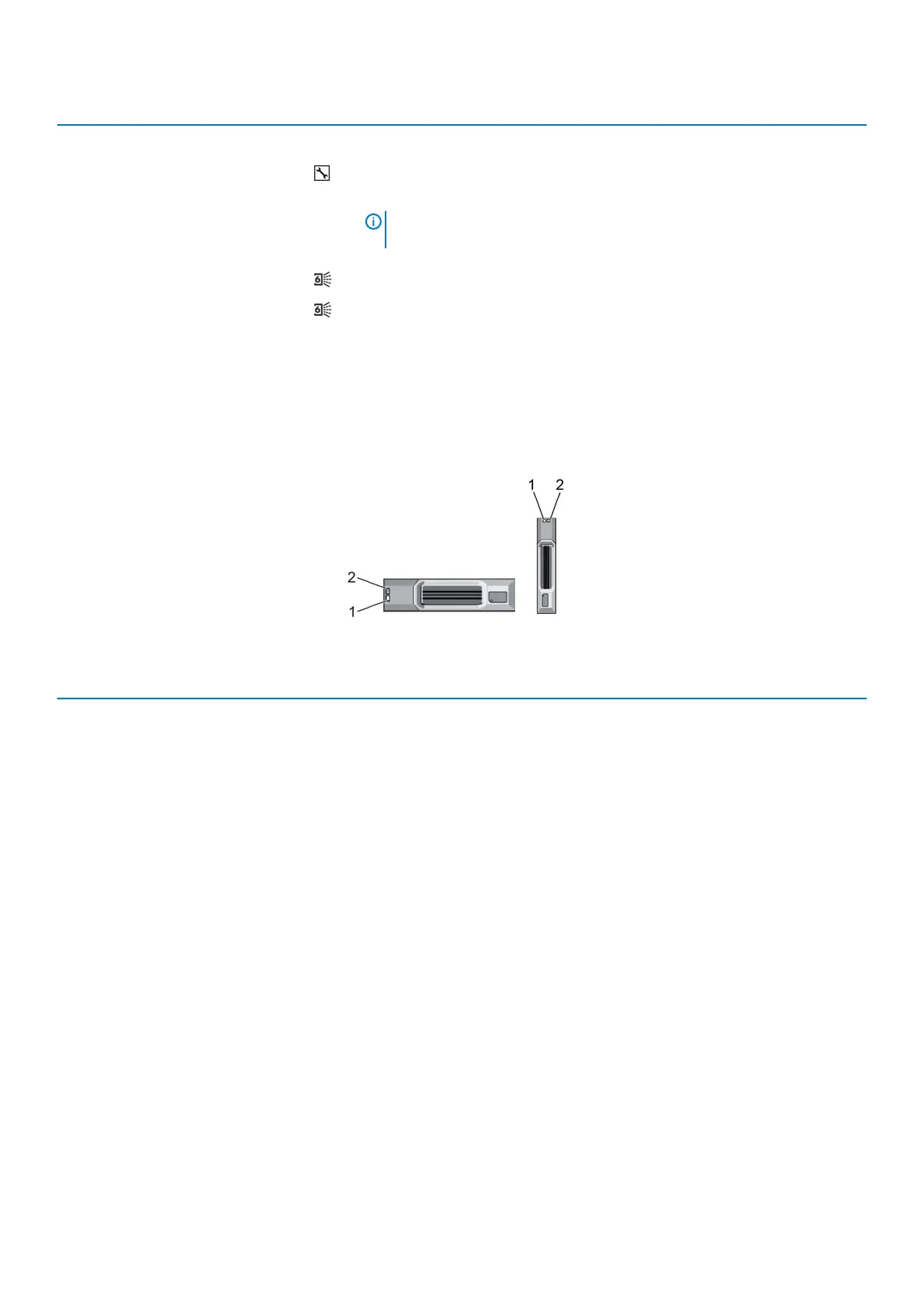

Figure 8. SCv2000/SCv2020 Storage System Drive Indicators
Item
Control/Feature Indicator Code
1 Drive activity indicator
• Blinking green – Drive activity
• Steady green – Drive is detected and has no faults
2 Drive status indicator
• Off – Normal operation
• Blinking amber (on 1 sec. / off 1 sec.) – Drive identification is enabled
• Blinking amber (on 2 sec. / off 1 sec.) – Hardware/firmware fault
• Steady amber – Drive is safe to remove
14 About the SCv2000/SCv2020 Storage System
