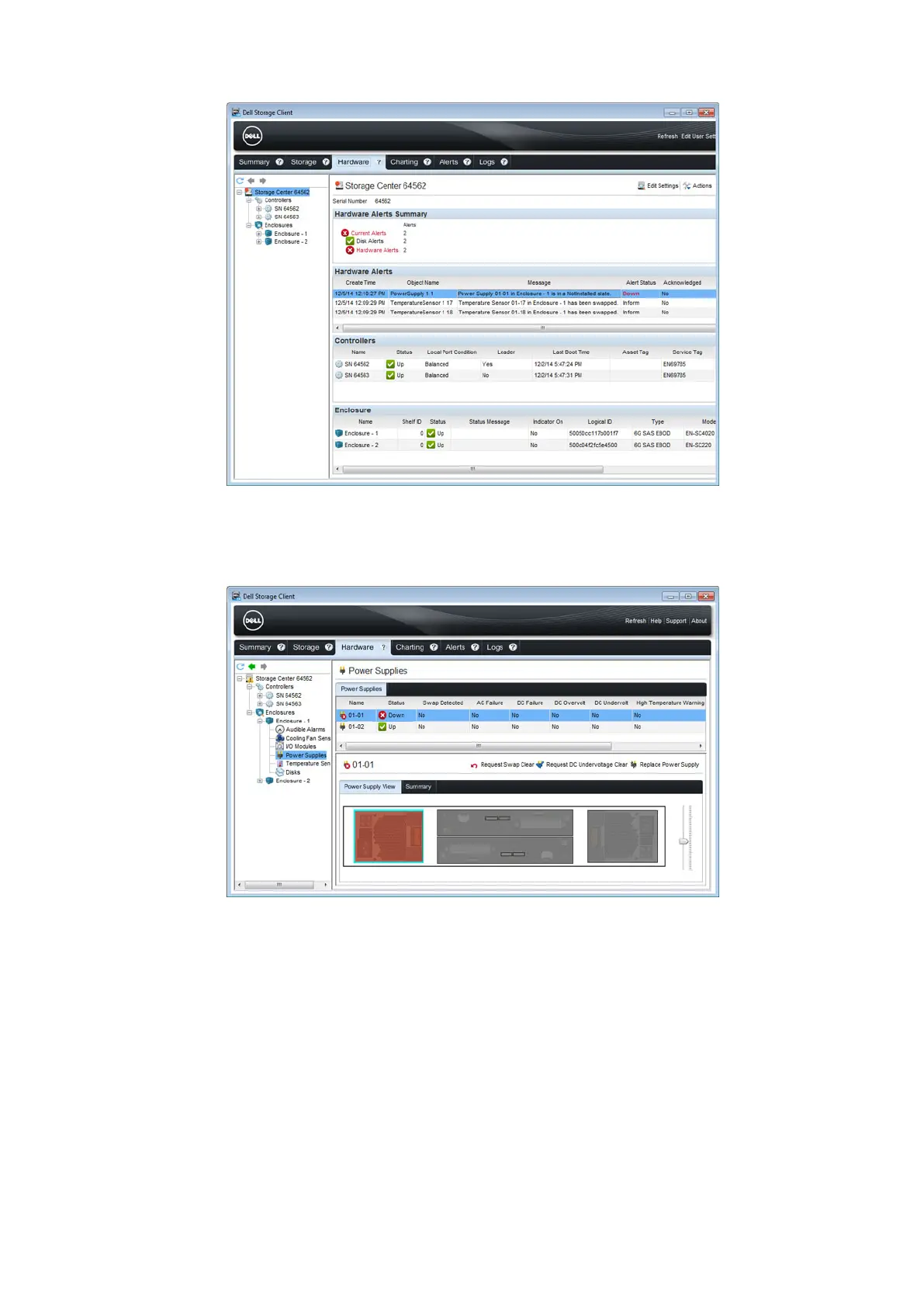

Figure 10. Hardware Alert Identifying the Expansion Enclosure with the Failed Power Supply
5. In the Hardware tab navigation pane, expand the expansion enclosure identified in the previous step.
6. Select Power Supplies. The status of each power supply is displayed in the Power Supplies tab.
7. Select the failed power supply. The location of the failed power supply is displayed in the Power Supply View tab.
Figure 11. Rear View of the Expansion Enclosure Showing the Failed Power Supply
Identifying the Failed Cooling Fan
To determine which cooling fan failed, use the Dell Storage Manager .
Steps
1. Start the Dell Storage Manager and connect to the Storage Center that has an expansion enclosure with a failed cooling fan.
2. Click the Hardware tab.
3. In the Hardware tab navigation pane, select and expand the Storage Center.
4. In the Hardware Alerts area, find the hardware alert that identifies the expansion enclosure with the failed cooling fan.
Replacing SCv2000/SCv2020 Storage System Components
19
