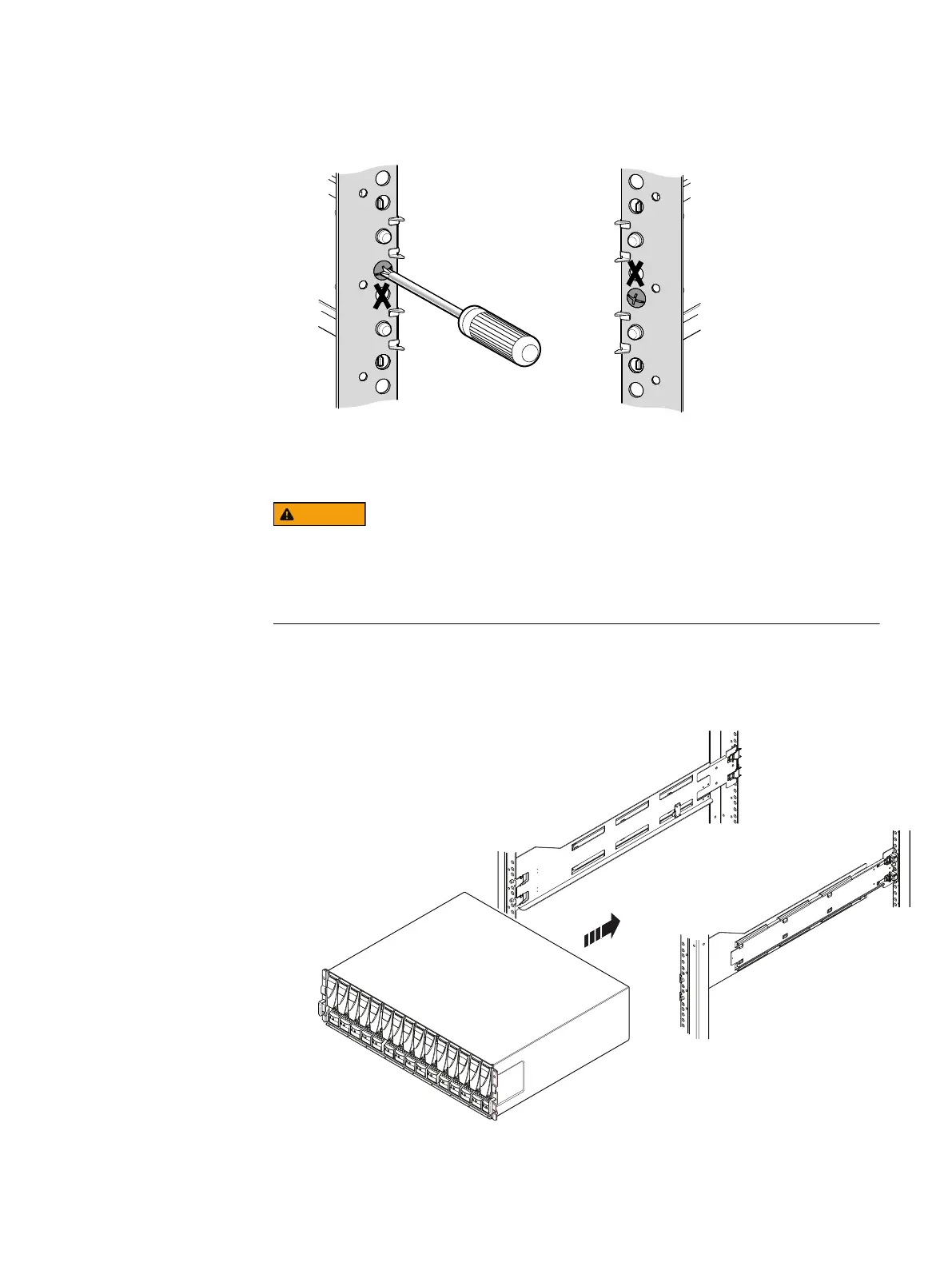

Figure 17 Installing the M5 Screw
CL5869
Right RearLeft Rear
Installing the DAE on the rails
The enclosure is heavy and should be installed into or removed from a rack by
two people. To avoid personal injury and/or damage to the equipment, do not
attempt to lift and install the enclosure into a rack without a mechanical lift
and/or help from another person.
Procedure
1. With help from another person, lift the enclosure and, from the front of the
cabinet/rack, slide the enclosure onto the rails.
Figure 18
Sliding the enclosure onto the rails
2. Once the enclosure is completely seated into the rear tabs, secure the front of
the enclosure to the front vertical channels with four screws (two per side), but
do not tighten the screws until they are all in place.
Install your DAE components into a rack
46 Unity 300/300F, Unity 350F, Unity 380/380F, Unity 400/400F, Unity 450F, Unity 500/500F, Unity 600/600F
and Unity 650F Installation Guide
