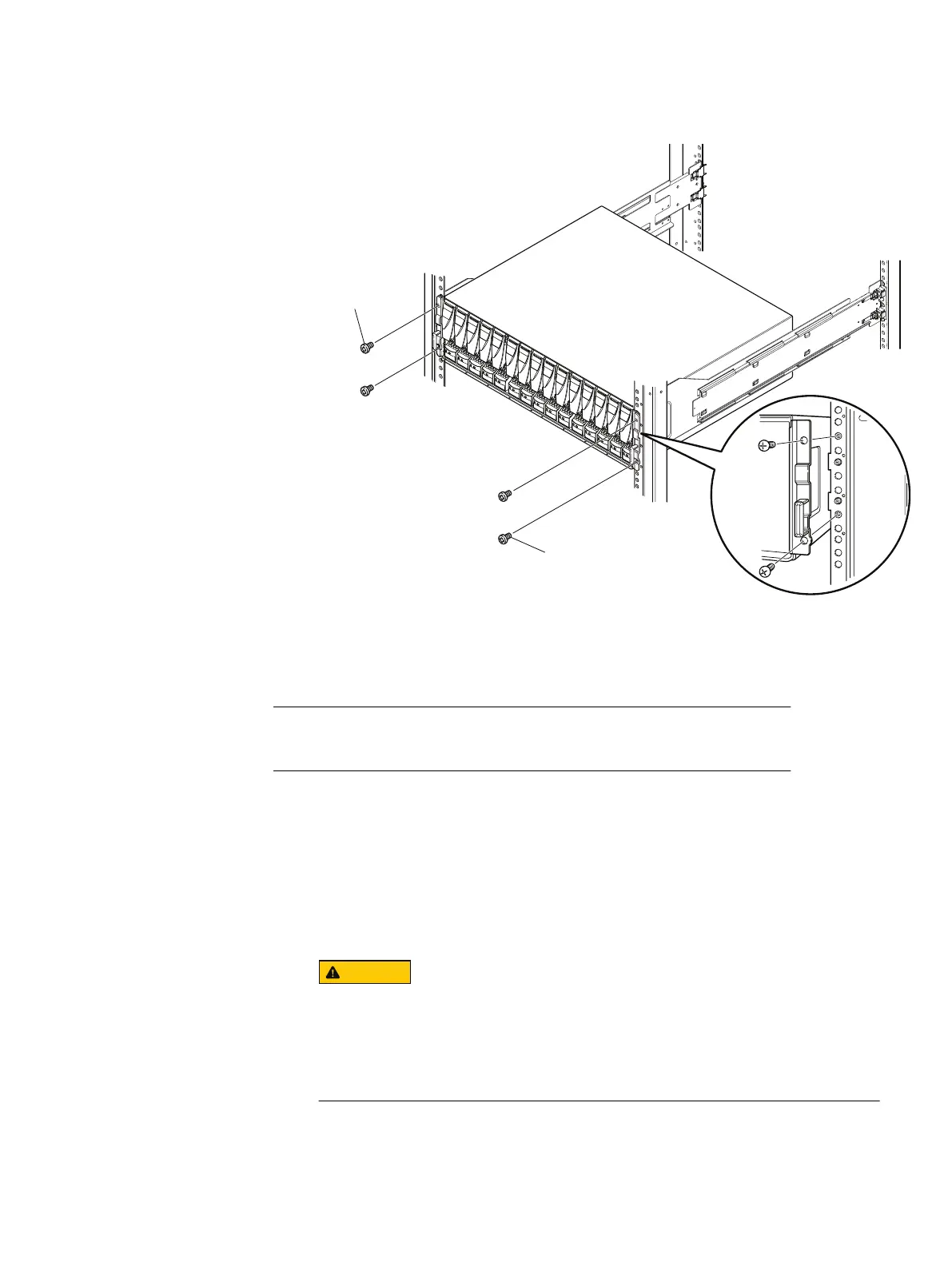

Figure 19 Securing the front of the enclosure
CL5846
Screws (2)
Screws (2)
Front
Rear
Install 25-drive DAE
Installing the rails in the cabinet
The snap-in rails are dedicated left and right, and cannot be interchanged.
Procedure
1. Orient the rails. Face the front of the cabinet when orienting the left and right
rail placement. The front edge of each rail is stamped L or R.
2. From the rear of the cabinet, insert the adapters into the holes on the rear rack
channel with the rail extended as shown in Figure 20 on page 48.
3. Push the rail into the rear mounting holes until the spring clips snap into place
on the outside of the rear channel.
Ensure the holes on the rail line up with the holes on the cabinet. This will
ensure proper alignment of the rails. Also, check that the rails are level and
using the same cabinet Unit markers from front to rear. Ensure you are
using the same unit markers from the front of the cabinet to the rear of the
cabinet.
Install your DAE components into a rack
Install 25-drive DAE 47
