Dell 1320c - Color Laser Printer User Manual

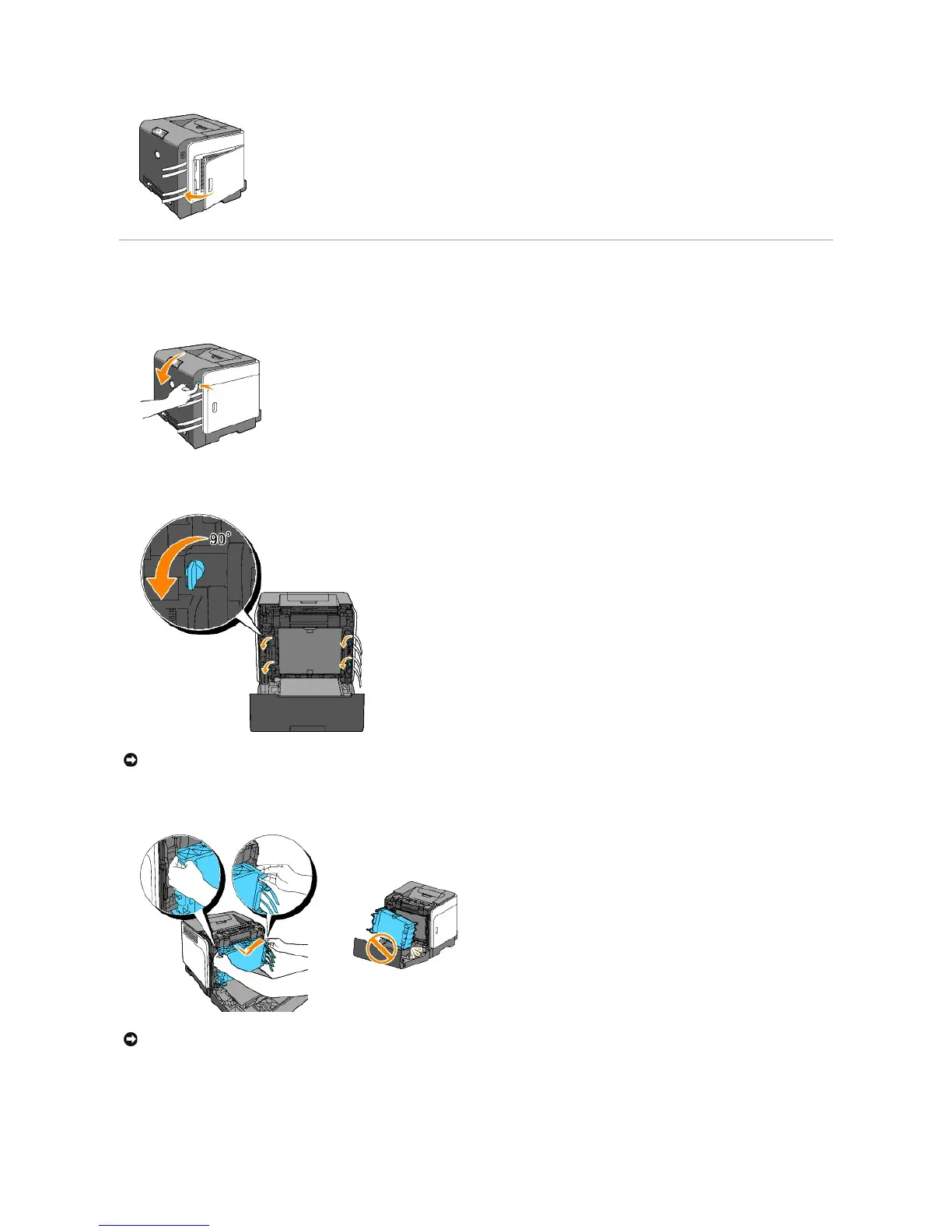

Installing the PHD (Print Head Device) Unit
1. Press the button (right side) and open the front cover.

2. Turn the four PHD lock levers counterclockwise to unlock the unit.

3. Pull the PHD unit out of the printer.

4. Completely remove the four yellow ribbons from the PHD unit.

NOTICE: Do not touch the belt unit.
NOTICE: Do not remove the protective sheet on the PHD unit.

Dell 1320c - Color Laser Printer Specifications

General

Print Technology	Laser
Print Speed (Black)	16 ppm
Print Speed (Color)	12 ppm
Print Resolution	600 x 600 dpi
Monthly Duty Cycle	30, 000 pages
Connectivity	USB 2.0, Ethernet
Input Capacity	150 sheets
Duplex Printing	Manual
Media Types Supported	Plain paper, envelopes, labels
Operating Systems Supported	Windows, Mac
