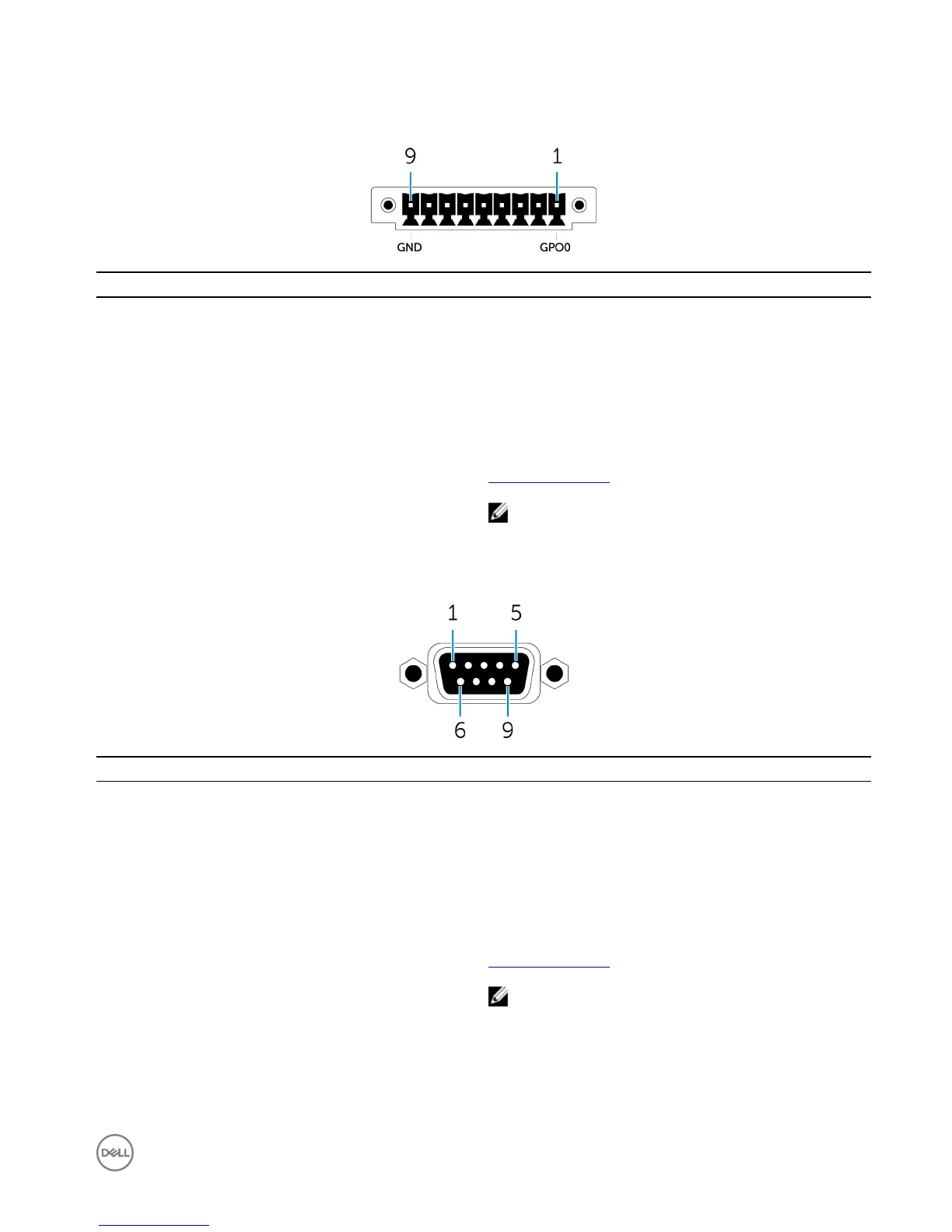

GPIO-out connector mapping
Pin Signal Pin Signal
1 GPO0 6 GPO5
2 GPO1 7 GPO6
3 GPO2 8 GPO7
4 GPO3 9 GND
5 GPO4
Manufacturer part number ACES 59128-0093C-P01
https://acesna.com/
NOTE: This part number is for reference only and is
subjected to change.
RS232 connector mapping
Pin
Signal Pin Signal
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 GND
Manufacturer part number ACES 59131-0093C-P01
https://acesna.com/
NOTE: This part number is for reference only and is
subjected to change.
11
