9
Connector kits

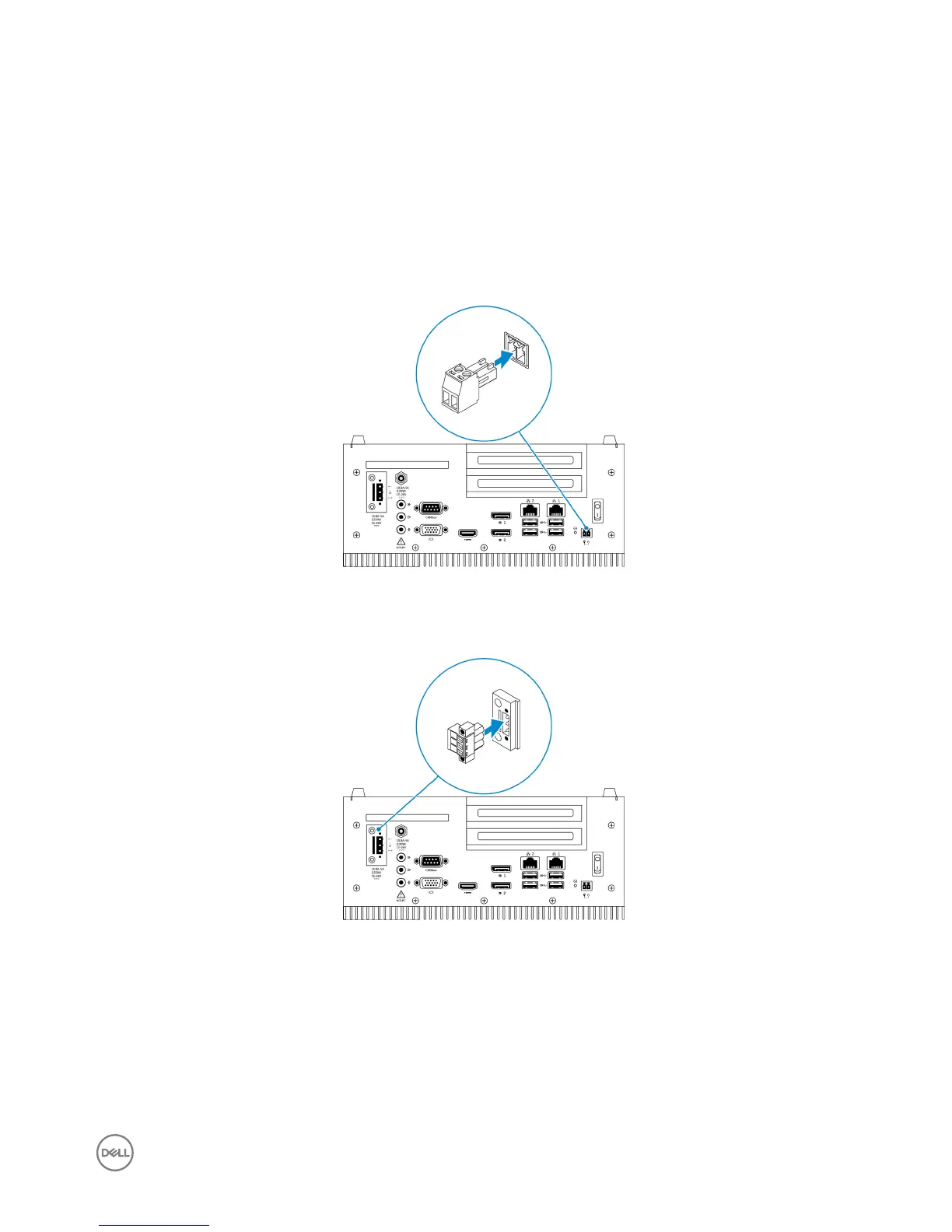

Remote power connector
Use the remote power connector to install the remote power switch.
12-26V DC power connector
Use a 12-26V DC power connector to supply power to your Embedded Box PC.
GPIO-in connector
Use the GPIO-in connector to connect the GPIO-out enabled devices or dongles.
43
