Dell 5000 - VGA Connector Mapping; 12-26 V DC Power Port (Barrel Connector); 12-26 V DC Power Connector

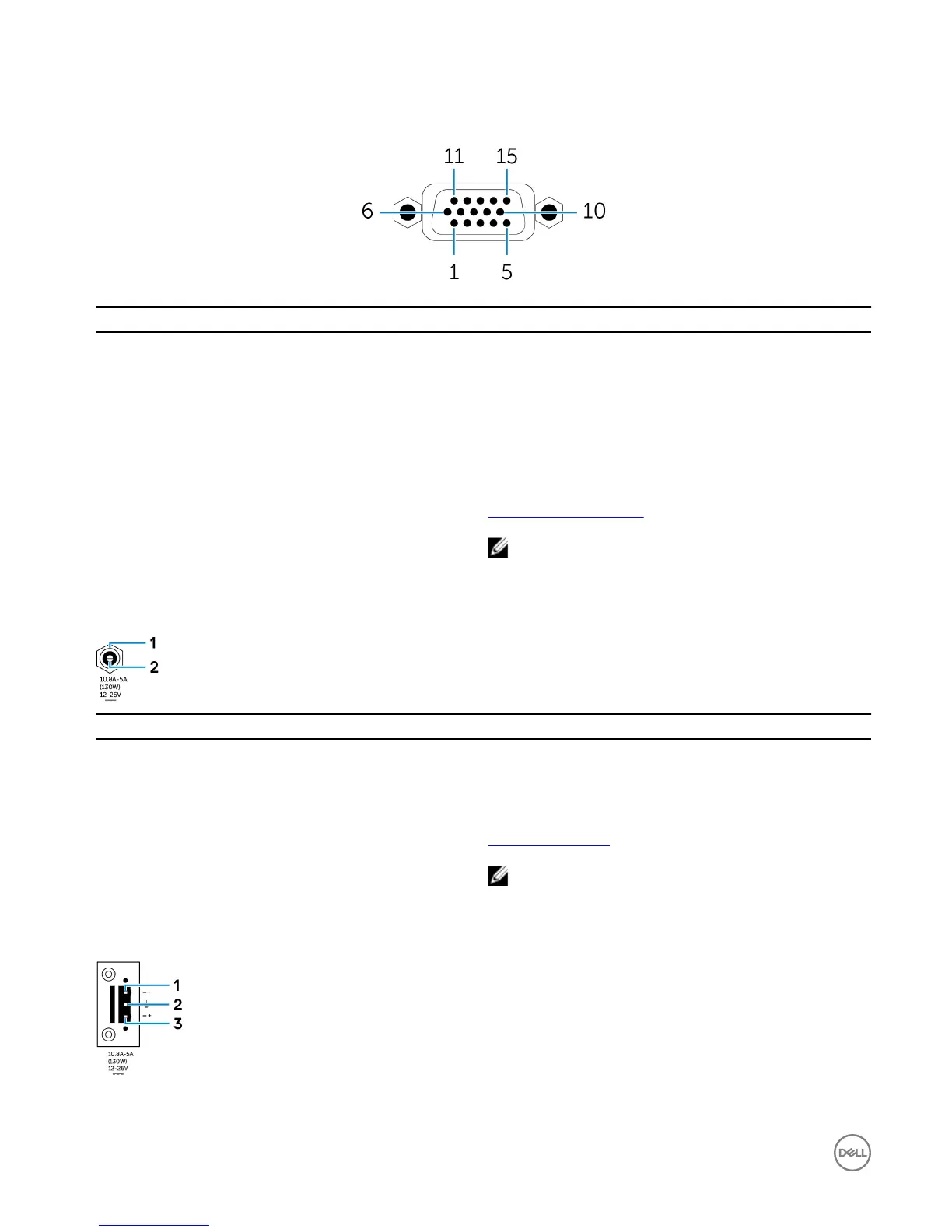

VGA connector mapping
Pin Signal Pin Signal Pin Signal
1 RED 6 GND 11 NC
2 GREEN 7 GND 12 DDCDAT
3 BLUE 8 GND 13 HSYNC
4 NC 9 +5V 14 VSYNS
5 GND 10 GND 15 DDCCLK
Manufacturer part number FoxConn DZ11627-H530P-4F
http://www.foxconn.com/
NOTE: This part number is for reference only and is
subjected to change.
12-26V DC power port (barrel connector)
Pin
Polarity
1 Ground
2 DC-IN
Manufacturer part number ACES 59130-0023C-P01
https://acesna.com/
NOTE: This part number is for reference only and is
subjected to change.
+12-26V DC power connector
8
