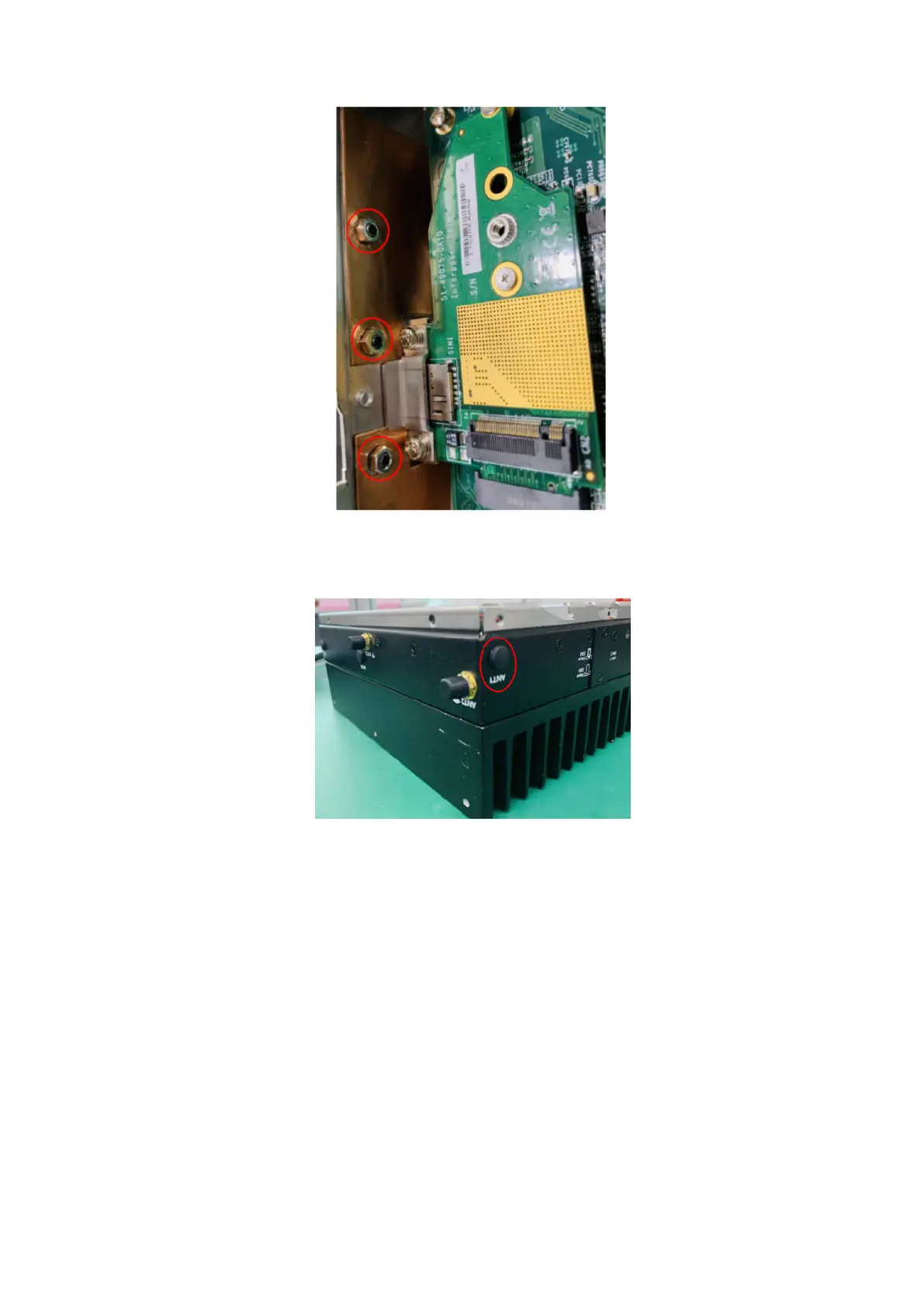

Figure 15. Side panel nuts
4. Remove the rubber insert from the ANT1, ANT5, and ANT6 antenna holes.
Figure 16. ANT1 antenna hole in side panel
14
Installation procedure for 4G expansion module
