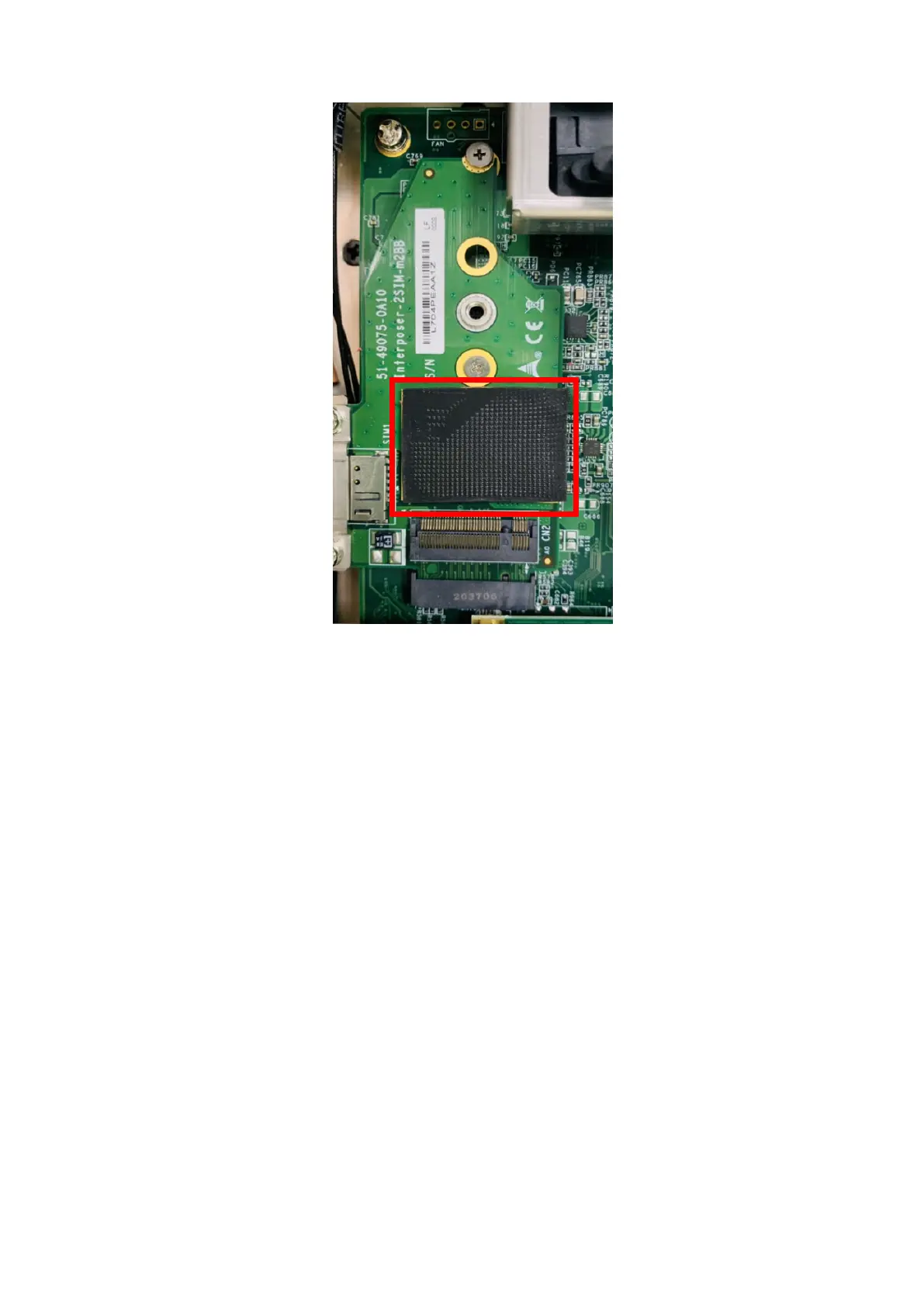

Figure 23. Thermal pad
9. Install the cabled M.2 module, and slide the protection bracket of IPEX connectors into position, as shown in the following
figure.
18
Installation procedure for 4G expansion module
