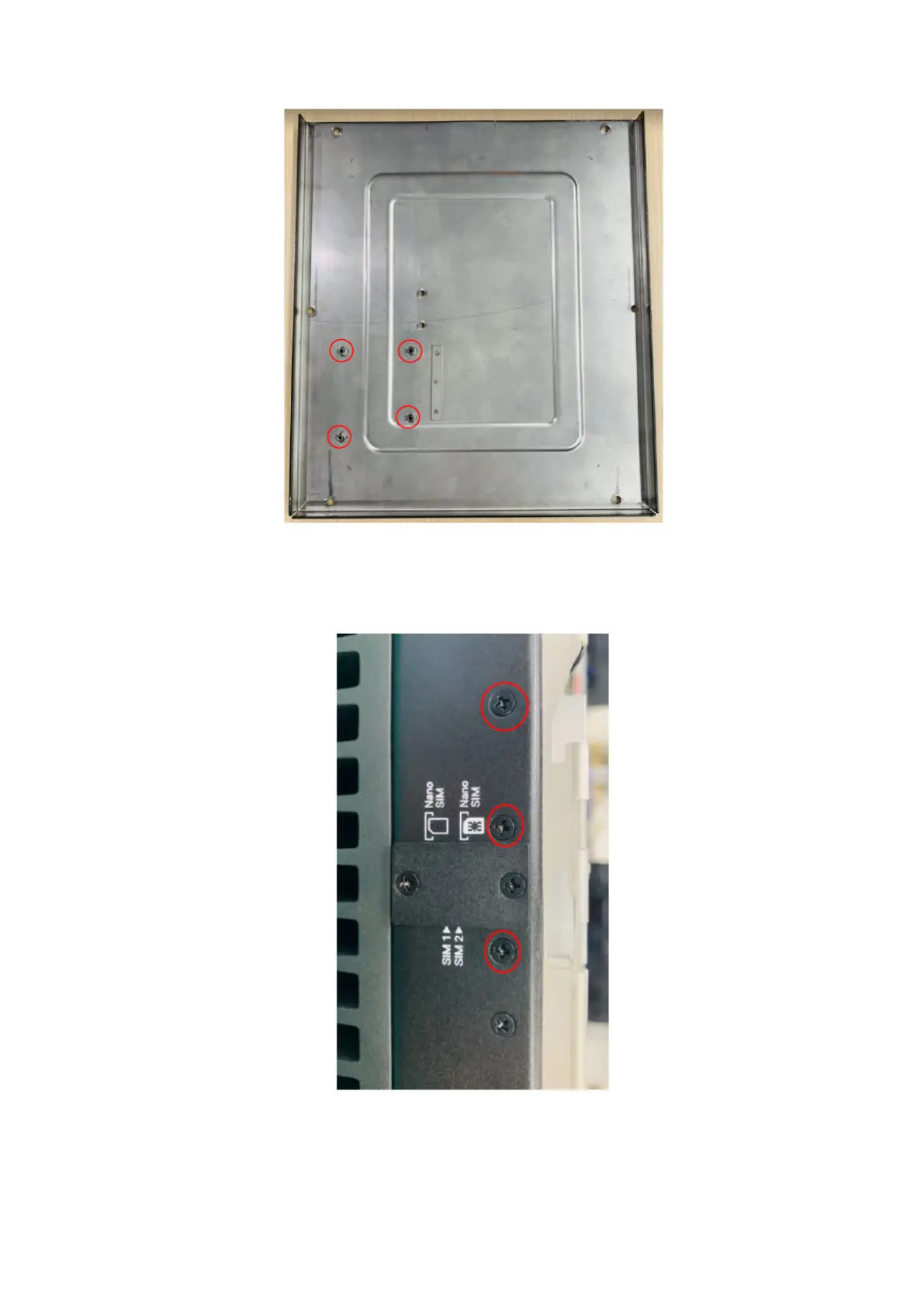

Figure 34. Bottom panel screw locations
3. Remove the screws and nuts from the side panel, as shown in the following figures. Hold the nuts from inside while
unscrewing. Discard these three sets of screws and nuts.
Figure 35. Side panel screws
Installation procedure for 5G expansion module
