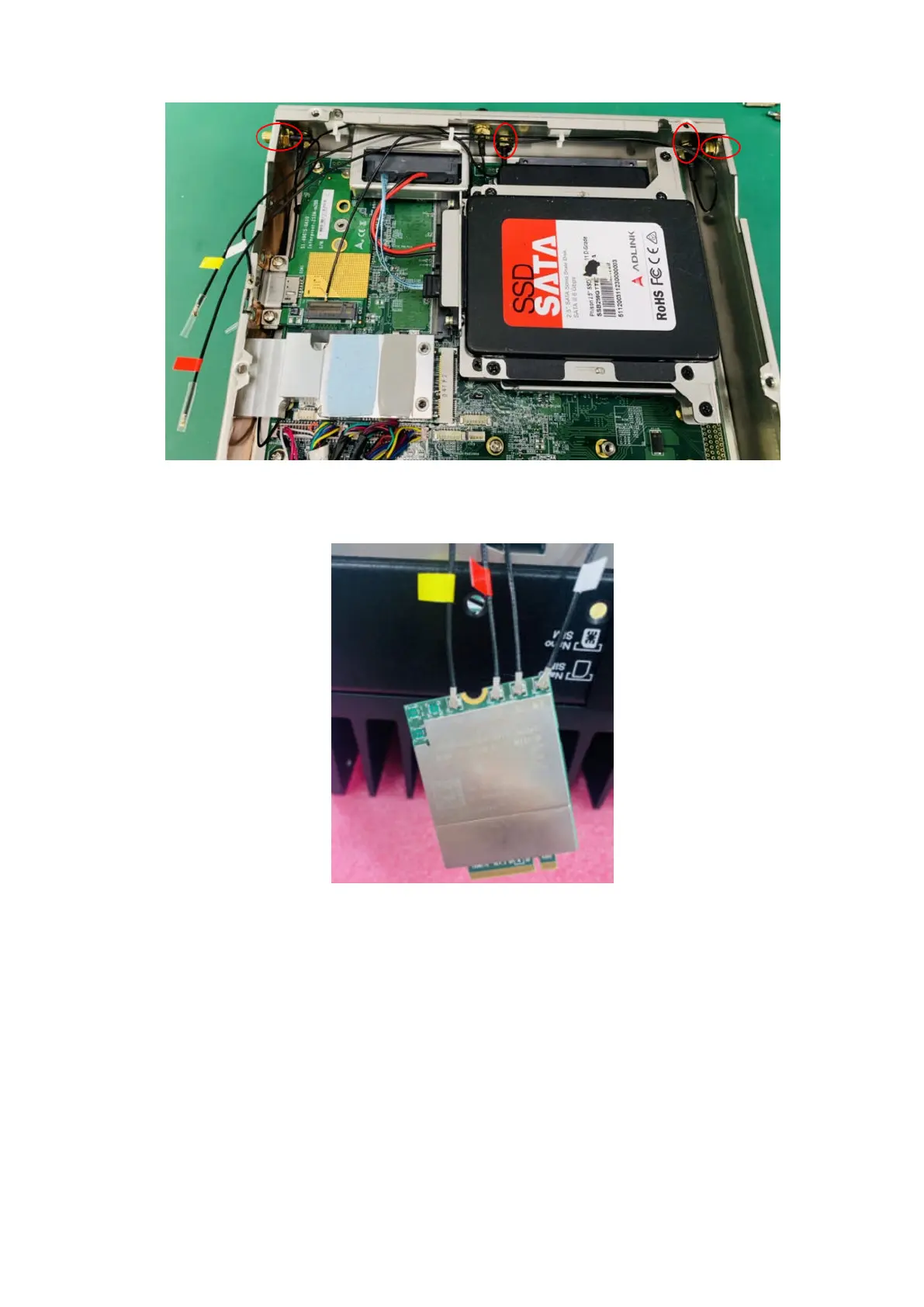

Figure 42. SMA cables connected
6. Wire the SMA cables to the M.2 module, as shown in the following figure. Use cable clips to secure the cables.
Figure 43. 5G M.2 module wiring
7. Note the installation location for the M.2 module, as indicated with a red rectangle in the following figure.
Installation procedure for 5G expansion module
