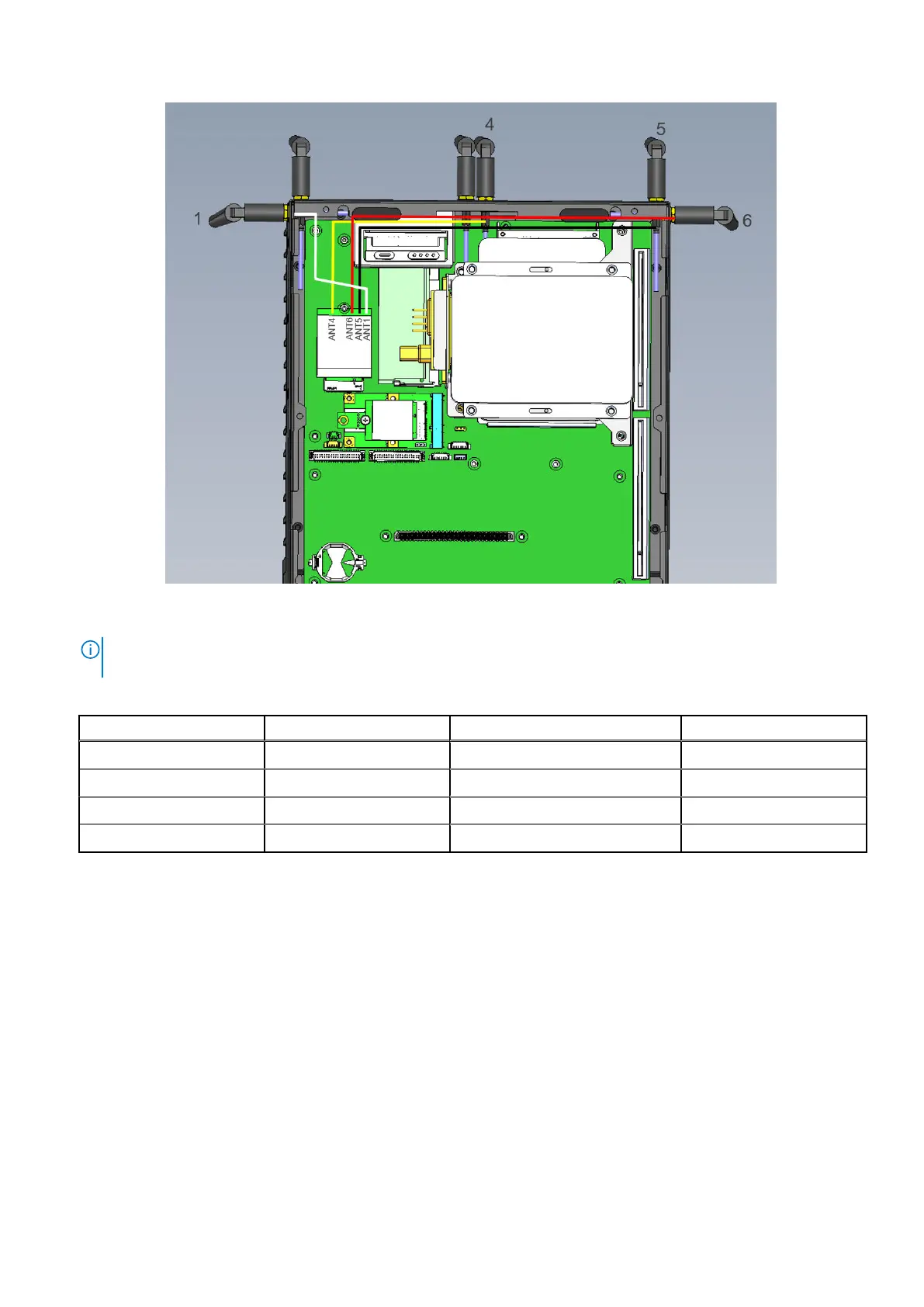

Figure 41. 5G cable routing diagram
NOTE:
The figure shows the M.2 module installed. This is for reference only, as the module will be installed in a later
step.
Table 8. 5G cable routing
Antenna Function Diagram color Cable length (cm)
ANT1 5G FR1 TX/RX White 10
ANT4 LTE/5G RX Yellow 20
ANT5 LTE/5G RX Black 30
ANT6 5G FR1 TX/RX Red 30
28 Installation procedure for 5G expansion module
