the connector nut and the washer. Use an 8 mm nut driver to torque the SMA cable outer nut to 8 kgf.cm. See the following
figures and tables for cabling details.

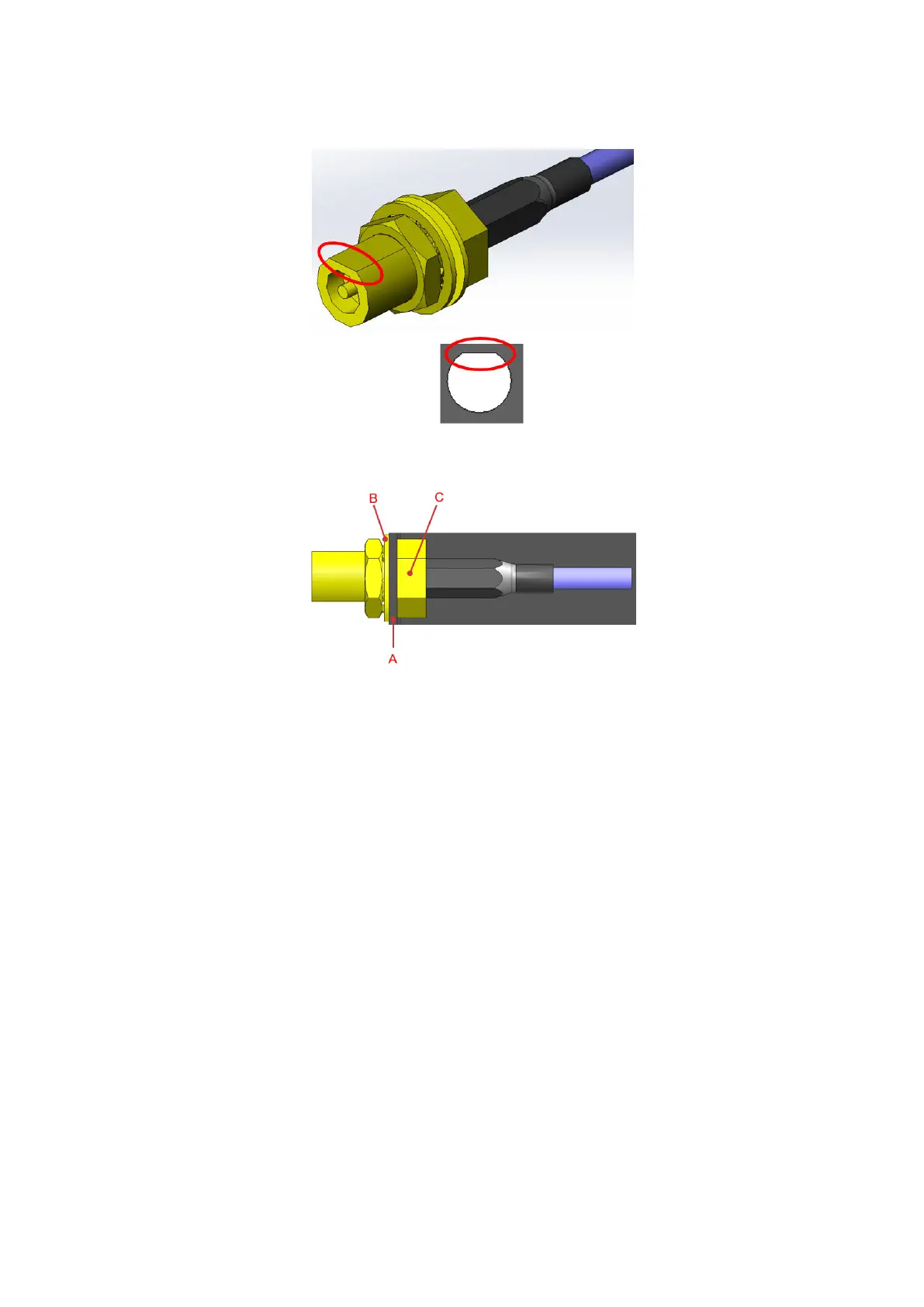

Figure 39. Align SMA cable with antenna hole
Figure 40. Position sheet metal (A) between washer (B) and cable connector nut (C)
Installation procedure for 5G expansion module
