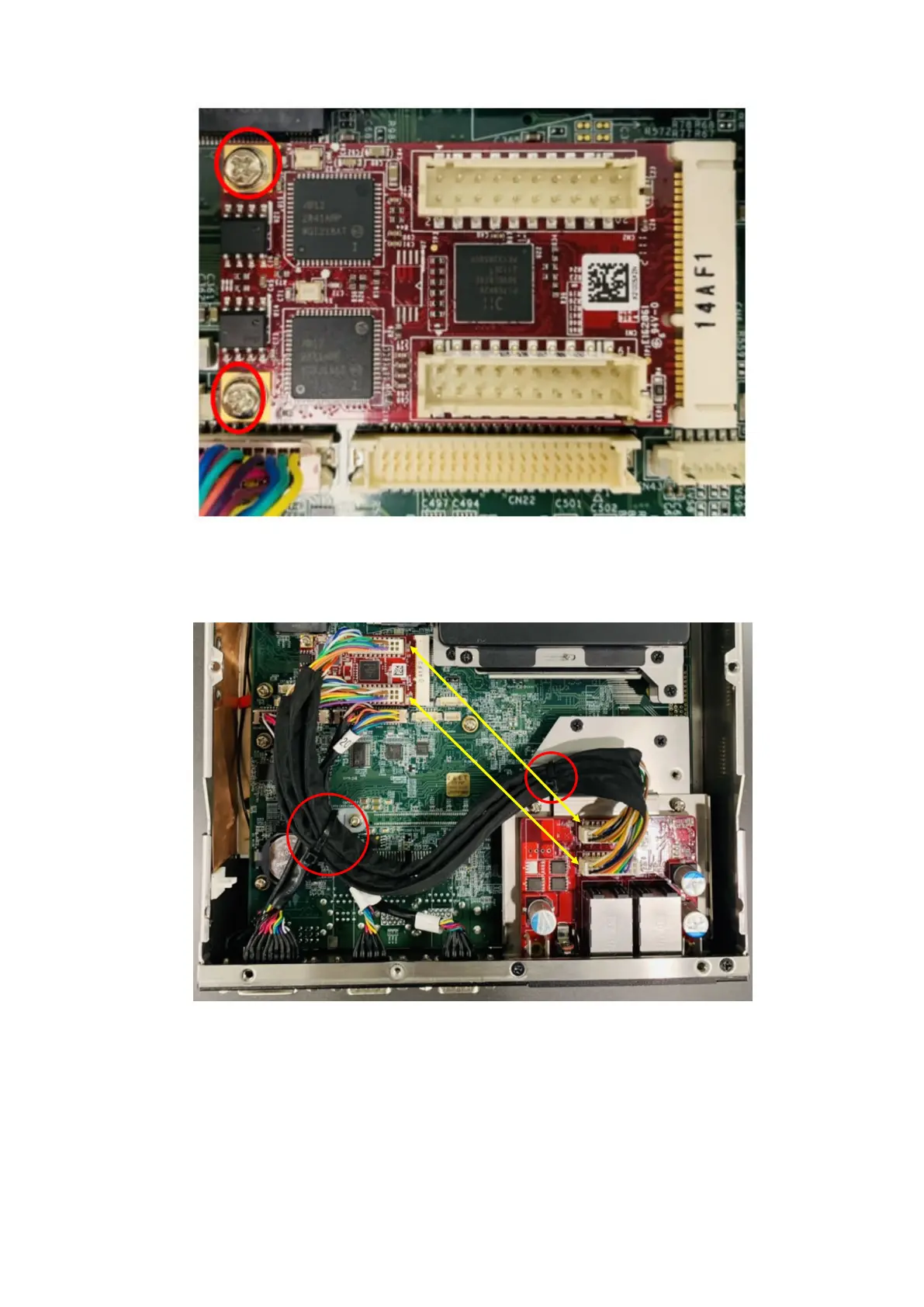

Figure 88. mPCIe LAN board secured to motherboard
15. Connect the LAN cables from the GbE with PoE module to the mPCIe LAN board. Use cable ties, as shown with red circles
in the following figure.
Figure 89. LAN cables from GbE with PoE module to mPCIe LAN board with cable ties
16. Use the screws to reattach the bottom panel. See the screw locations in step 1.
17. Insert the rubber caps into the antenna holes, as shown in the following figure.
Installation procedure for 2x GbE with PoE uFM module
53
