222 Installing Blade Components

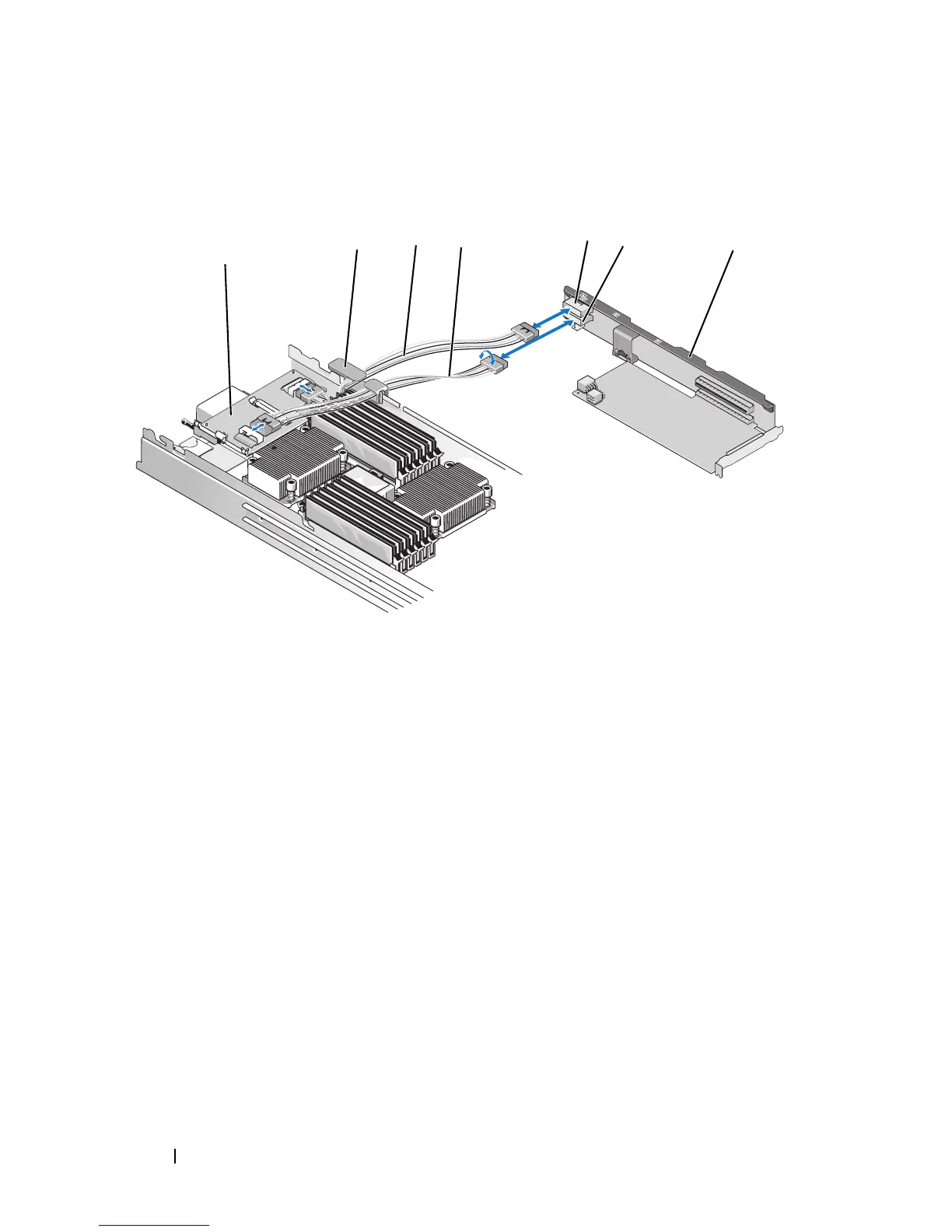

Figure 3-36. Installing or Removing Cables Connecting the Expansion-Card Riser to the
Mezzanine Interface Card (PowerEdge M610x Only)
1 mezzanine interface card 2 cable management clip
3 data cable 2 4 data cable 1
5 data cable connector 2 6 data cable connector 1
7 expansion-card riser
