Dell 8 - Page 231

Installing Blade Components 231

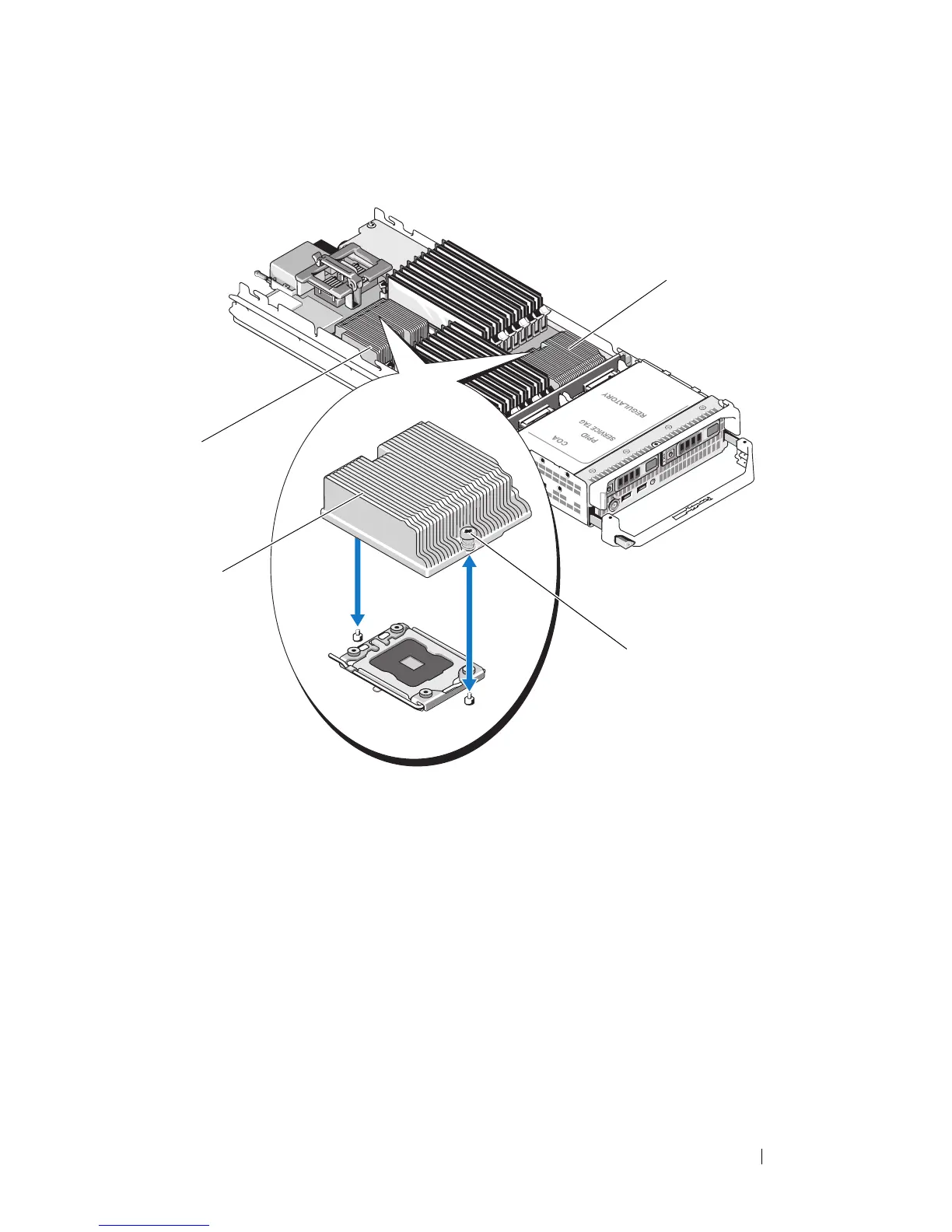

Figure 3-43. Installing and Removing a Heat Sink (PowerEdge M710HD)
1 socket CPU2 2 screws (2)
3 heat sink
NOTE: You must install the heat
sink in the orientation shown here.
4 socket CPU1
1
4
3
2
