236 Installing Blade Components
6 For PowerEdge M910, remove the screw to release the processor shield and
then lift the processor out of the socket. See Figure 3-48.
For other blades, pull the socket-release lever straight up until the
processor is released from the socket. Open the processor shield and then
lift the processor out of the socket. See Figure 3-49 (PowerEdge M710,
M710HD, M610, M610x, or M600), or Figure 3-50 (PowerEdge M905,
M805, or M605).
NOTE: Leave the release lever up so that the socket is ready for the new
processor.

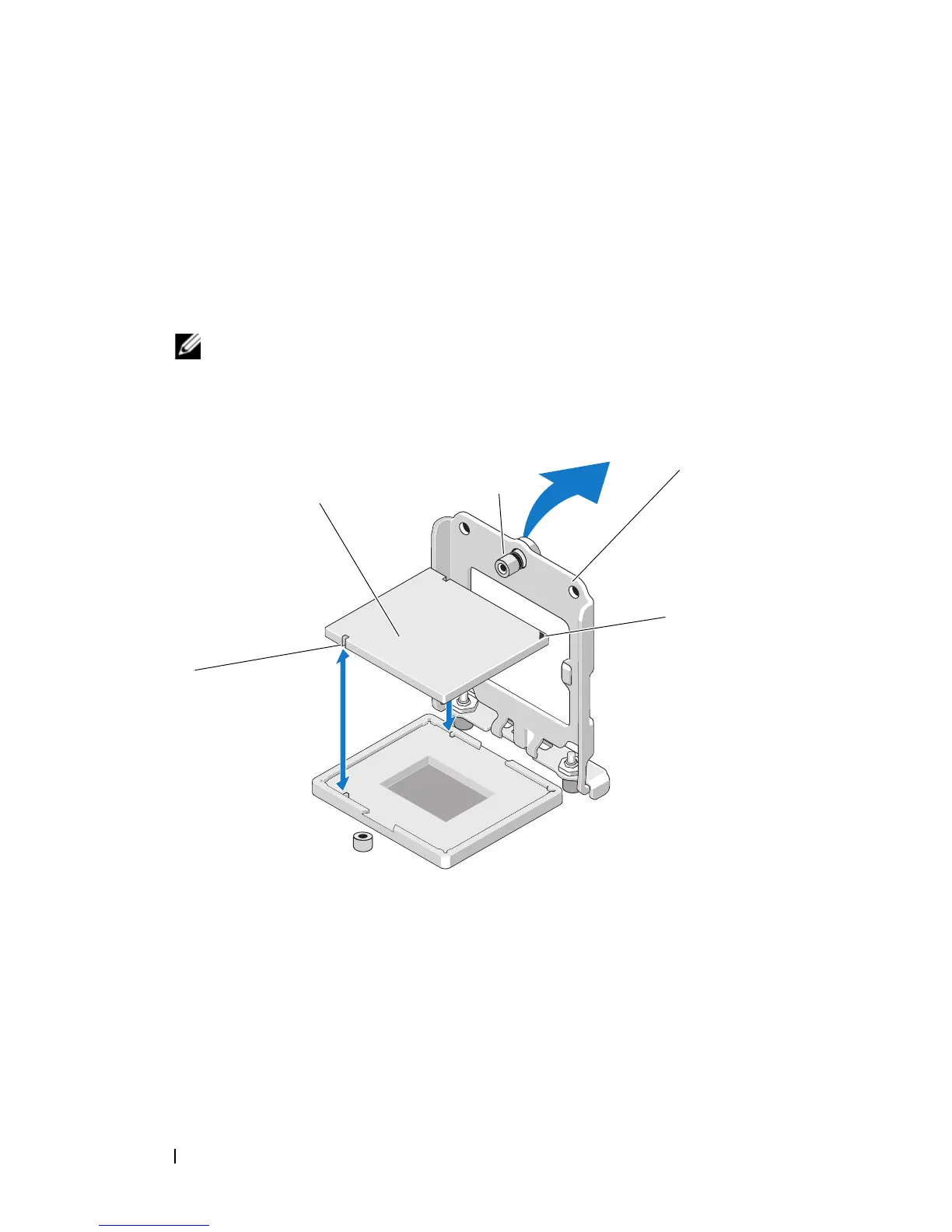

Figure 3-48. Installing and Removing an Intel Processor (PowerEdge M910)
1 processor 2 screw
3 processor shield 4 pin-1 corner of socket
5 notch in processor
3
1
2
44
5
