Dell 8 - Page 237

Installing Blade Components 237

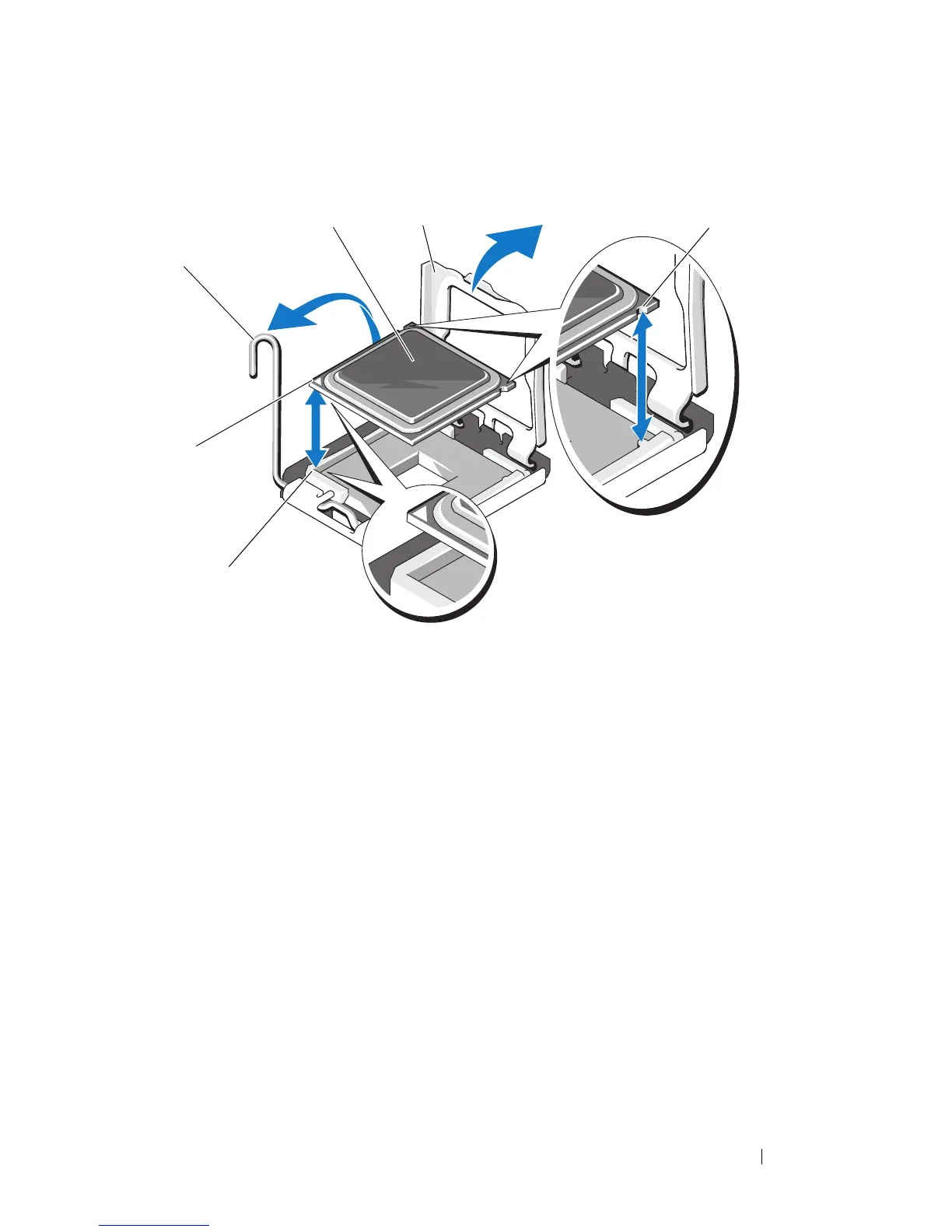

Figure 3-49. Installing and Removing an Intel Processor (PowerEdge M710, M710HD,
M610, M610x, or M600)
1 socket-release lever 2 processor
3 processor shield 4 notch in processor
5 pin-1 corner of socket 6 pin-1 corner of processor
1
4
2
3
6
5
